6. Other Field Service Ver. 1.0 Apr. 2007

bizhub 163/211/220Maintenance

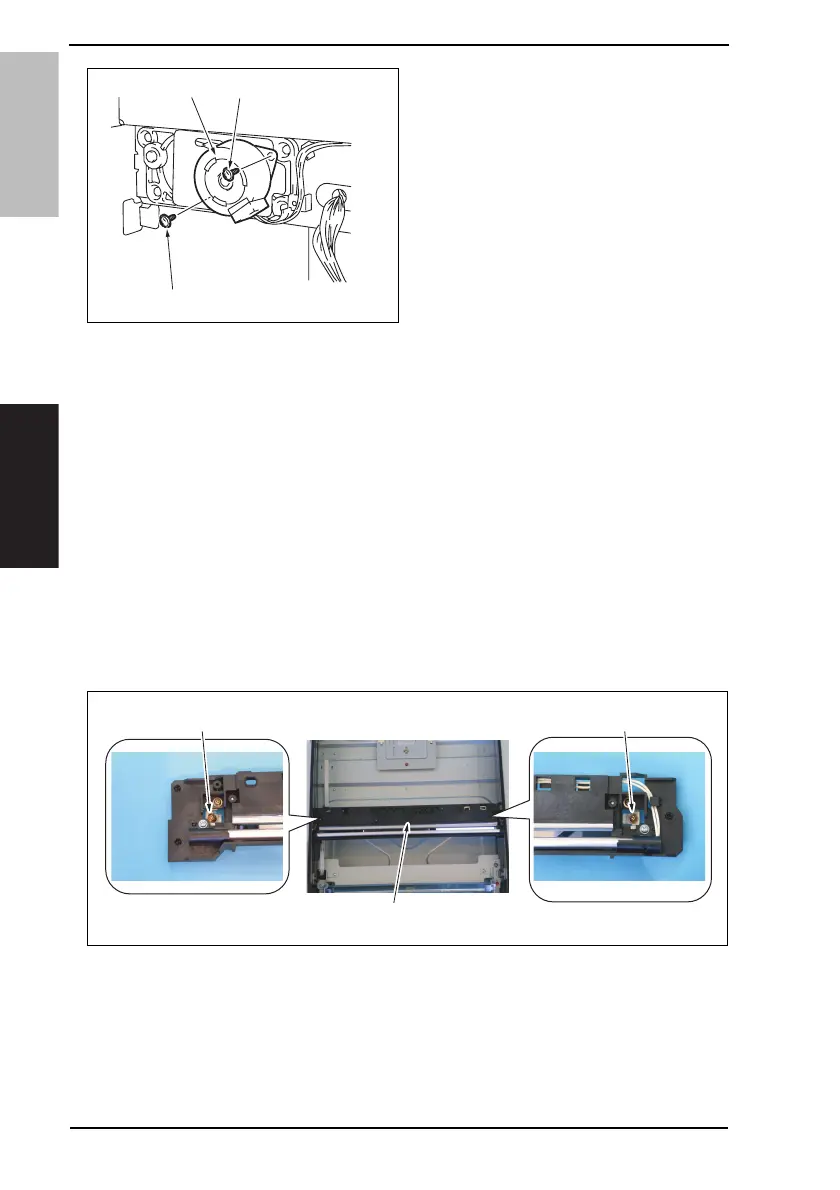

6. Remove two screws [1], and remove

the scanner motor [2].

6.3.30 Scanner drive cables

A. Removal procedure

1. Remove the left cover.

See P.45

2. Remove the front cover.

See P.43

3. Remove the rear cover.

See P.47

4. Remove the upper rear cover.

See P.46

5. Remove the right rear cover.

See P.47

6. Remove the original glass and original scanning glass.

See P.42

7. Loosen two screws [1] (to which red paint has been applied) and remove the scanner

assy [2].

NOTE

• Loosen the two red painted screws to remove the scanner assy in this step, which

differs from the removal procedure for the scanner assy as a single unit.

A09AF2C589DA

[1][2]

[1]

A09AF2C611DA

[1] [1]

[2]
