Konica Minolta bizhub 163 Service Manual

Field Service Ver. 1.0 Apr. 2007 2. Periodical check
7
DF-605/MK-501Maintenance

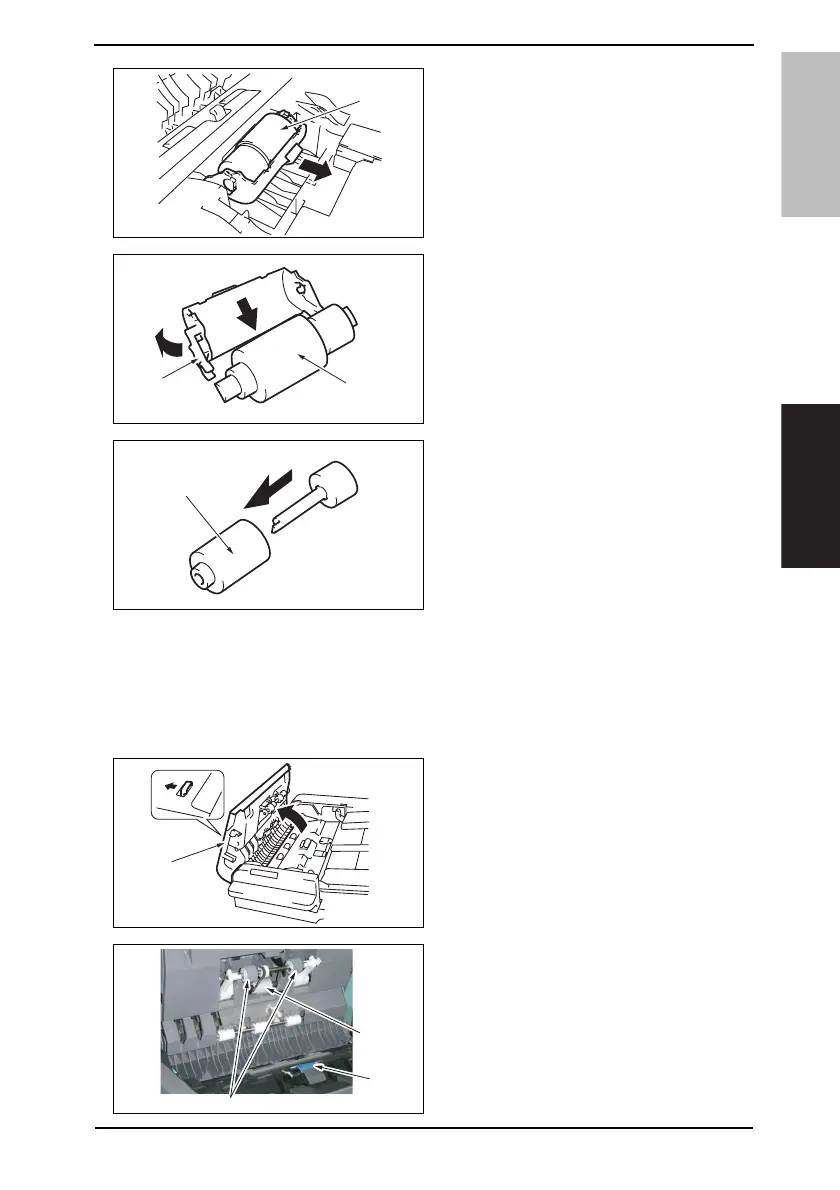

3. Remove the separation roller assy
[1].
NOTE
• Use care not to lose the spring at
the bottom side of the separation
roller assy.
4. While opening up the holder [1],
remove the shaft [2].
NOTE
• Opening the holder too much can
break the holder.
5. Remove the separation roller [1]
from the shaft.
6. To reinstall, reverse the order of removal.
2.1.3 Cleaning of the pick-up roller, feed roller and separation roller
A. Periodically cleaning parts/cycle
• Pick-up roller: Every 50,000 prints
• Feed roller: Every 50,000 prints
1. Open the upper door [1].
2. Using a soft cloth dampened with
alcohol, wipe the pick-up roller [1],
feed roller [2] and separation roller
[3].
4344F2C506DA
[1]
4344F2C507DA
[2]
[1]
4344F2C508DA
[1]
4344F2C500DA
[1]
4344F2C509DA
[1]
[3]
[2]
