Konica Minolta bizhub 163 Service Manual

Field Service Ver. 1.0 Apr. 2007 7. Jam display
17
PF-502
Troubleshooting
Troubleshooting
7. Jam display
7.1 Misfeed display
• When a paper misfeed occurs, the error indicator lights up steadily and the display gives
a corresponding message.
7.1.1 Misfeed display resetting procedure
• Open the corresponding cover, clear the sheet of paper misfed, and close the cover.

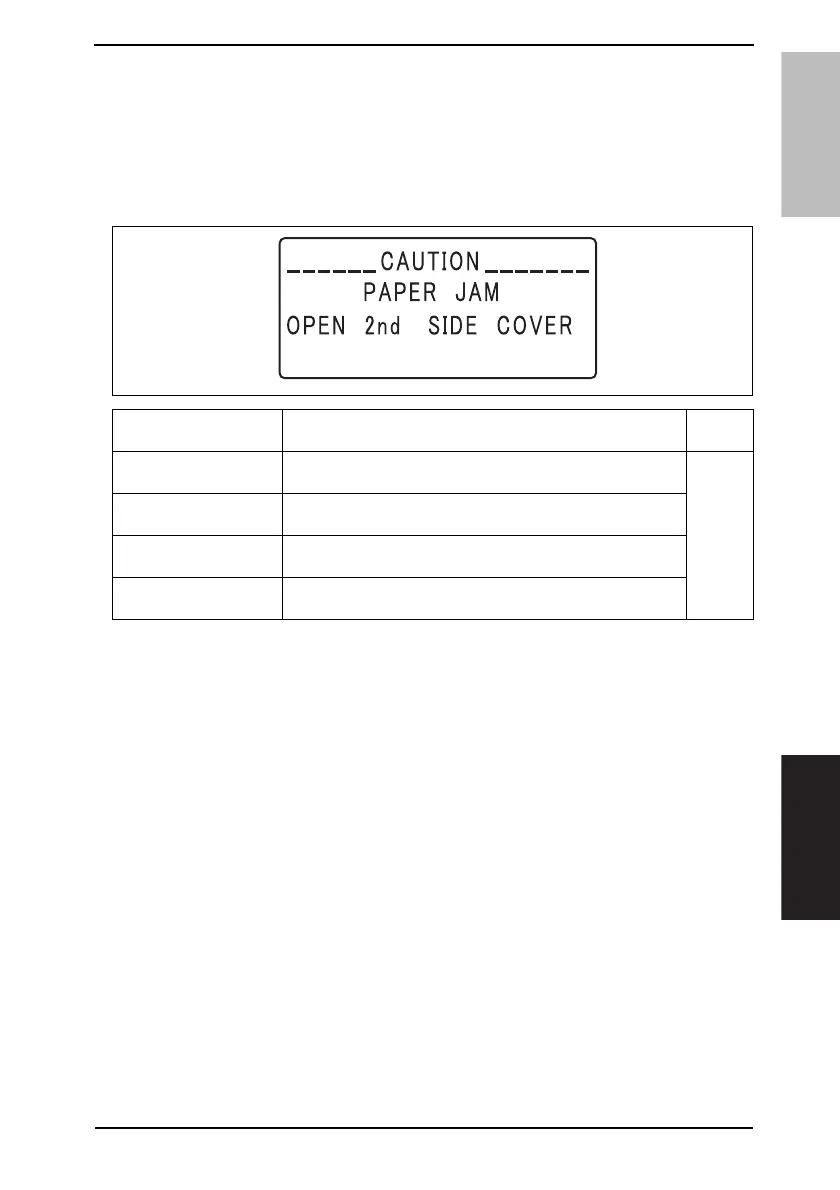

Display message Misfeed/paper location
Ref.
Page
PAPER JAM
OPEN 2nd SIDE COVER
Tray2 paper feed/vertical transport section of the paper feed unit
P. 2 0
PAPER JAM
OPEN 3rd SIDE COVER
Tray3 paper feed/vertical transport section of the paper feed unit
PAPER JAM
OPEN 4th SIDE COVER
Tray4 paper feed/vertical transport section of the paper feed unit
PAPER JAM
OPEN 5th SIDE COVER
Tray5 paper feed/vertical transport section of the paper feed unit
