Konica Minolta bizhub 163 Service Manual

6. Other Field Service Ver. 1.0 Apr. 2007
78
bizhub 163/211/220Maintenance

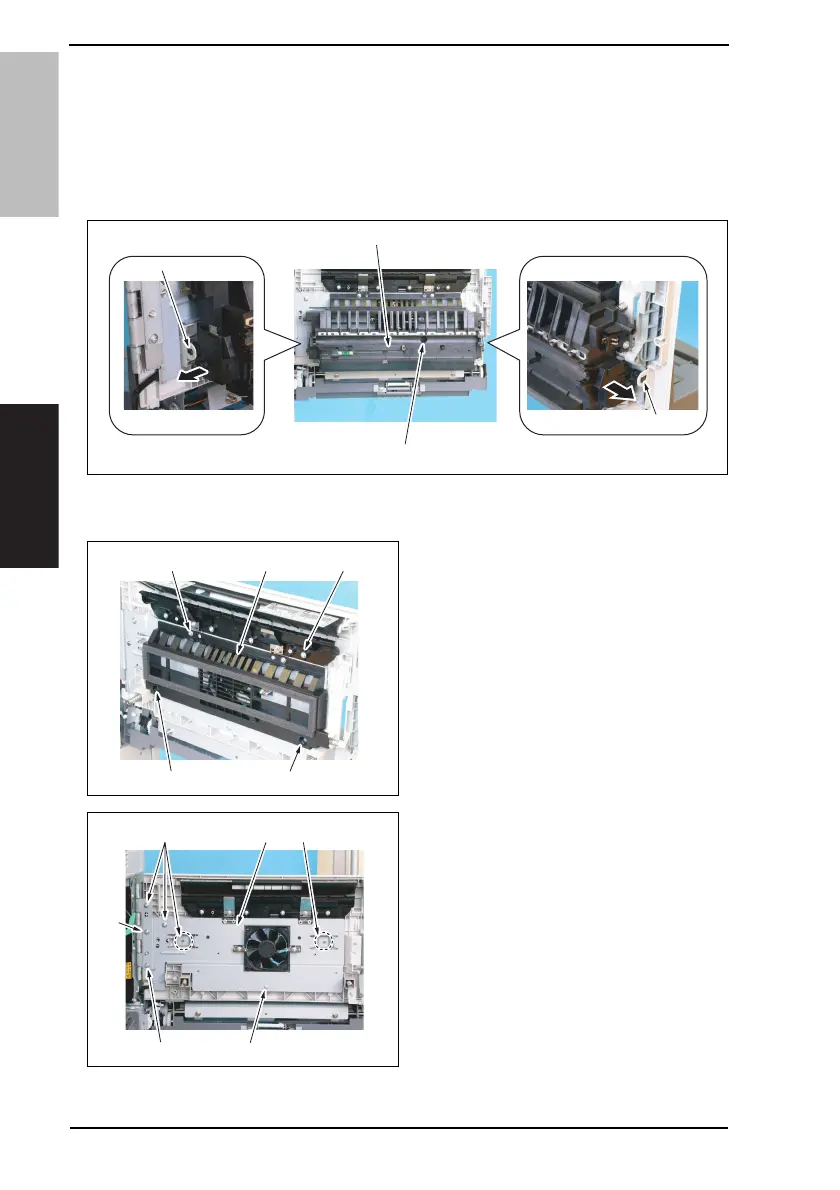

6.3.33 Fusing cooling fan motor (FM1)
1. Remove the rear right cover.
See P.48
2. Open the right door.
3. Remove the image transfer roller assy.
See P.30
4. Remove the screw [1], unhook two tabs [2], and remove the transport unit holder [3].
NOTE
• Use care not to lose the two springs.
5. Remove four screws [1], and remove
the duct assy [2].
6. Remove seven screws [1], and
remove the mounting bracket [2].
A09AF2C592DA
[1]
[3]
[2]
[2]
A09AF2C593DA
[1][2]
[1] [1]
[1]
A09AF2C594DA
[2]
[1]
[1]
[1]
[1] [1]
