Konica Minolta bizhub 163 Service Manual

Field Service Ver. 1.0 Apr. 2007 3. Periodical check
29
bizhub 163/211/220Maintenance

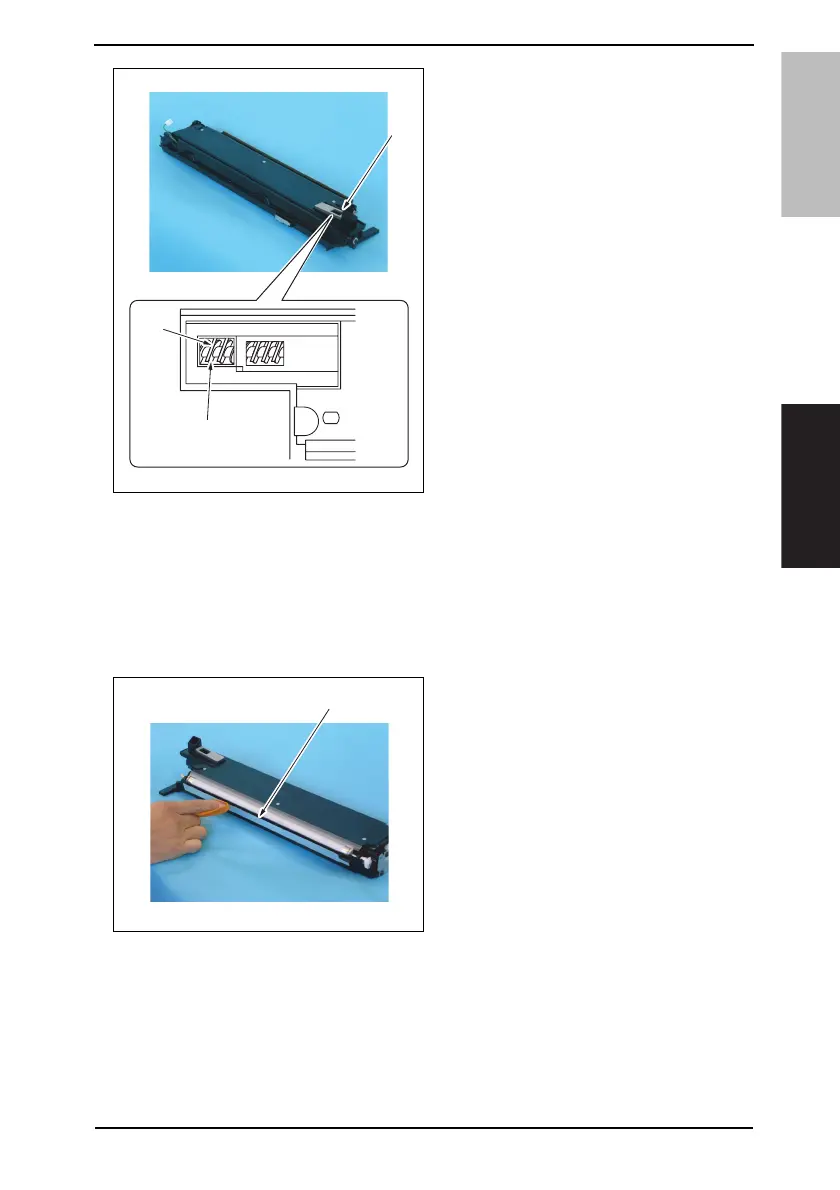

7. Attach the developer scattering pre-
vention plate and confirm through
the opening [1] that the bottom of the
toner agitating seal [2] is on the
transporting blade [3].
3.5.16 Cleaning of the pre-image transfer guide plate
A. Periodically cleaning parts/cycle
• Pre-image transfer guide plate: Every 40,000 prints
B. Procedure
1. Divide the image unit into the PC drum assy and the developing assy.
See P.20
2. Using a soft cloth dampened with
alcohol, wipe the pre-image transfer
upper guide plate [1] clean of dirt.
A09AF2C632DA
[1]
[2]
[3]
A09AF2C559DA
[1]

Konica Minolta bizhub 163 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Max Paper Size	A3
Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Connectivity	USB 2.0
Paper Input Capacity	250 sheets
Paper Output Capacity	100 sheets
Memory	32 MB
Type	Monochrome
Duplex Printing	Manual
Network Connectivity	Optional
Dimensions	570 x 531 x 449 mm
Zoom Range	50% - 200%
