6. Other Field Service Ver. 1.0 Apr. 2007

bizhub 163/211/220Maintenance

6.3.38 Replacing the TCR sensor (TCRS)

1. Separate the IU into the drum assy and developing assy.

See P.20

2. Remove the developer scattering prevention plate.

See P.26

3. Dump the developer.

See P.27

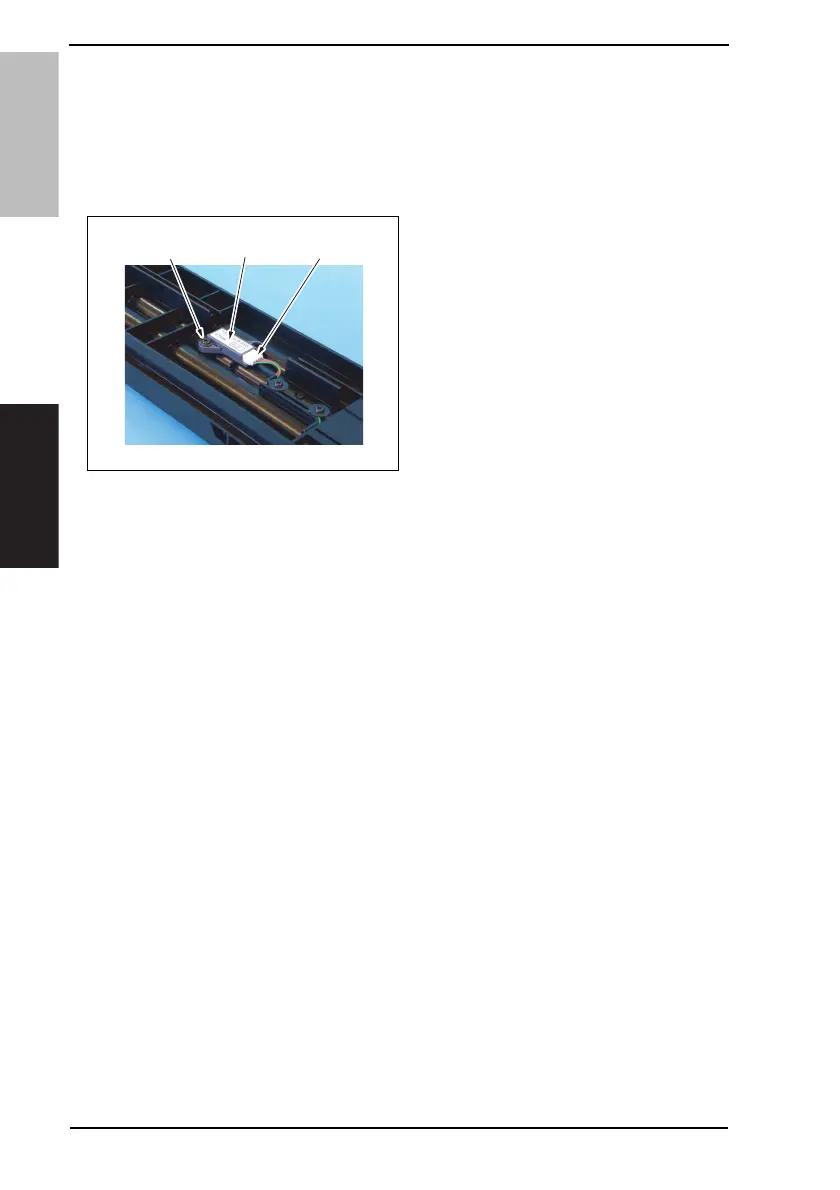

4. Disconnect the connector [1], and

remove the screw [2] and the TCR

sensor [3].

5. Install the TCR sensor and the developer scattering prevention plate.

6. Assemble the drum assy to the developing assy to reconstruct the IU.

7. Install the IU in the copier and run “ATDC AUTO ADJUST” of the Service Mode.

See P.138

8. Enter the adjustment value on the adjust label.

A09AF2C560DA

[1][2] [3]
