Konica Minolta bizhub C203 Service Manual

5. Sensor check Field Service Ver. 1.0 Jul. 2007
16
JS-505
Adjustment / Setting
5. Sensor check
5.1 Check procedure
A. Procedure
1. Call the Service Mode to the screen.
See P.330 of the main body service manual.
2. Touch [State Confirmation].
3. Touch [Sensor Check].
4. Touch four times [z].

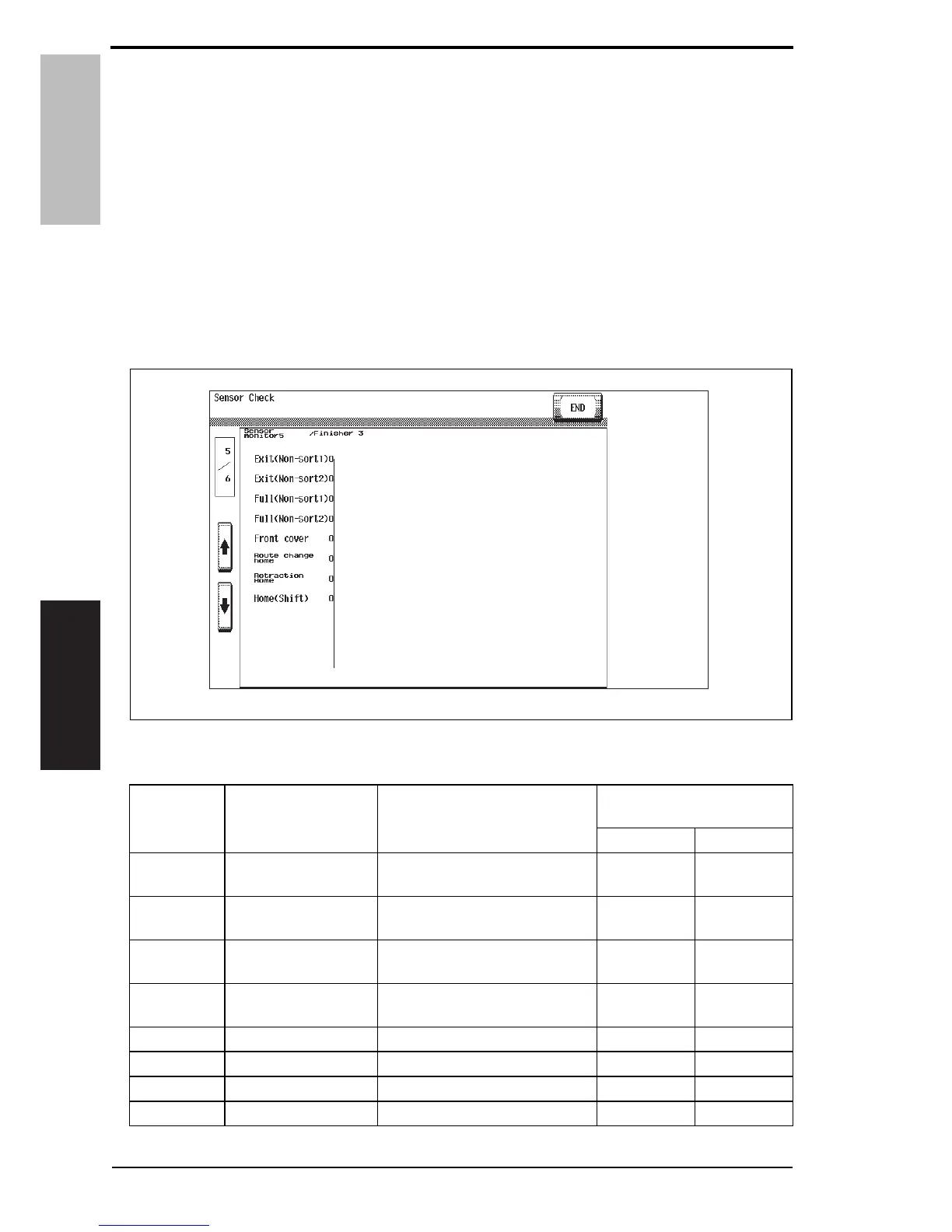

5.1.1 Sensor check screen
• This is only typical screen which may be different from what are shown on each individ-
ual main body.
5.1.2 Sensor check list
A083F3E501DA
Symbol Panel display Part/Signal name
Operation characteristics/
panel display
10
PS1 Exit (Non-sort1) Lower tray exit sensor
Paper
present
Paper not
present
PS2 Exit (Non-sort2) Upper tray exit sensor
Paper
present
Paper not
present
T1FDTB/LED Full (Non-sort1)
Lower tray paper full detect
board/LED
Full
Other than
full
T2FDTB/LED Full (Non-sort2)
Upper tray paper full detect
board/LED
Full
Other than
full
PS3 Front cover Front door sensor Closed Open
PS4 Route change home Route change home sensor Blocked Unblocked
PS5 Retraction Home Pressure/retraction home sensor Blocked Unblocked
PS6 Home (Shift) Shift home sensor Blocked Unblocked
