Konica Minolta bizhub C203 Service Manual

4. Other Field Service Ver. 1.0 Jul. 2007
16
DF-611
Maintenance
4.2 Disassembly/Assembly/Cleaning list (Other parts)
4.2.1 Disassembly/Assembly parts list
4.3 Disassembly/Assembly procedure

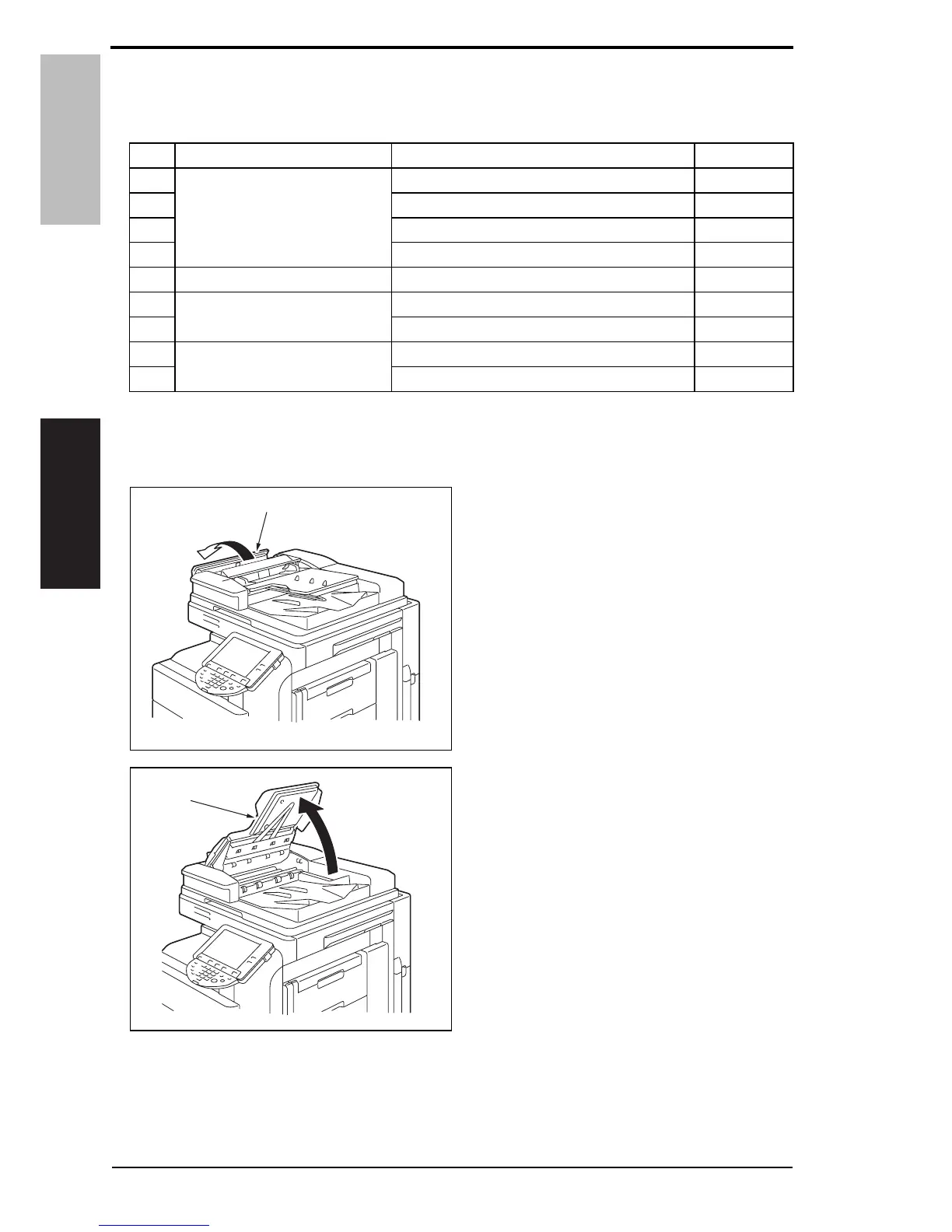

4.3.1 Feed cover
1. Open the transportation cover [1].
2. Lift up the document feed tray [1].
No. Section Part name Ref. page
1
Exterior parts
Feed cover P. 1 6
2 Front cover P. 1 7
3Rear coverP. 1 8
4 Document feed tray front cover P. 1 9
5 Unit Reverse automatic document feeder P. 1 9
6
Board and etc.
DF control board P. 2 0
7 Document width detection variable resistor P. 2 1
8
Others
Stamp unit P. 2 3
9Stamp P. 2 4
A01HF2C504DA
[1]
A01HF2C505DA
[1]
