Konica Minolta bizhub C203 Service Manual

Field Service Ver. 1.0 Jul. 2007 6. Other
187
bizhub C353/C253/C203Maintenance
6.6 Option counter
6.6.1 Installation method for the key counter

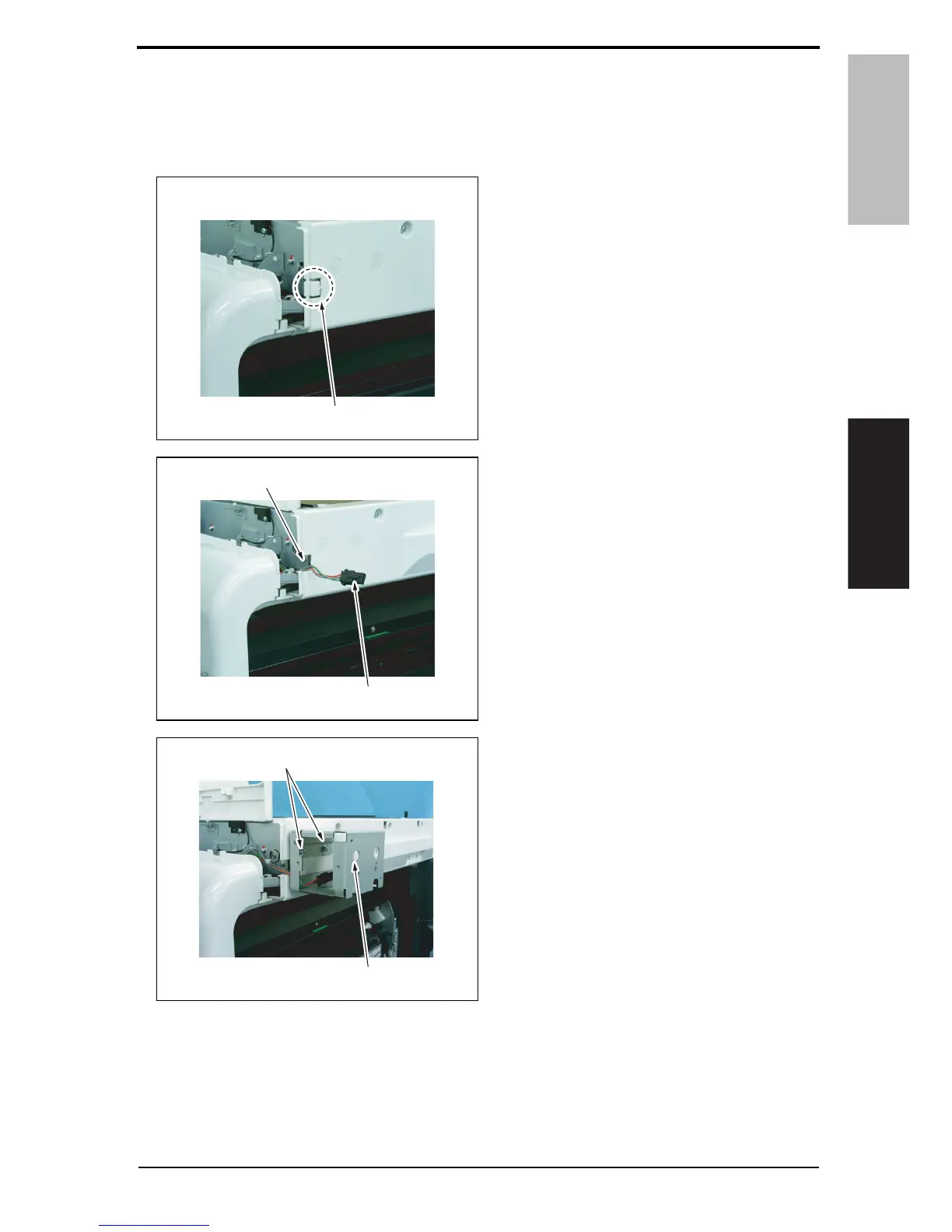

1. Remove the IR front cover.
See P.89
2. Remove the knockouts [1] on the IR
right cover.
3. Run the key counter harness [1] out
through the hole [2] on the IR right
cover.
4. Using two screws [2], secure the
counter mounting bracket [1].
NOTE
• Secure the counter mounting
bracket passing the connector into
the bracket.
• Use the four long screws
(9646 0418 14: M4 x 18) in the key
counter kit to secure the counter
mounting bracket.
[1]
A02EF2C527DA
[1]
[2]
A02EF2C528DA
[1]
[2]
A02EF2C529DA
