Konica Minolta bizhub C203 Service Manual

3. Other Field Service Ver. 1.0 Jul. 2007
58
FS-519/PK-515/OT-602
Maintenance

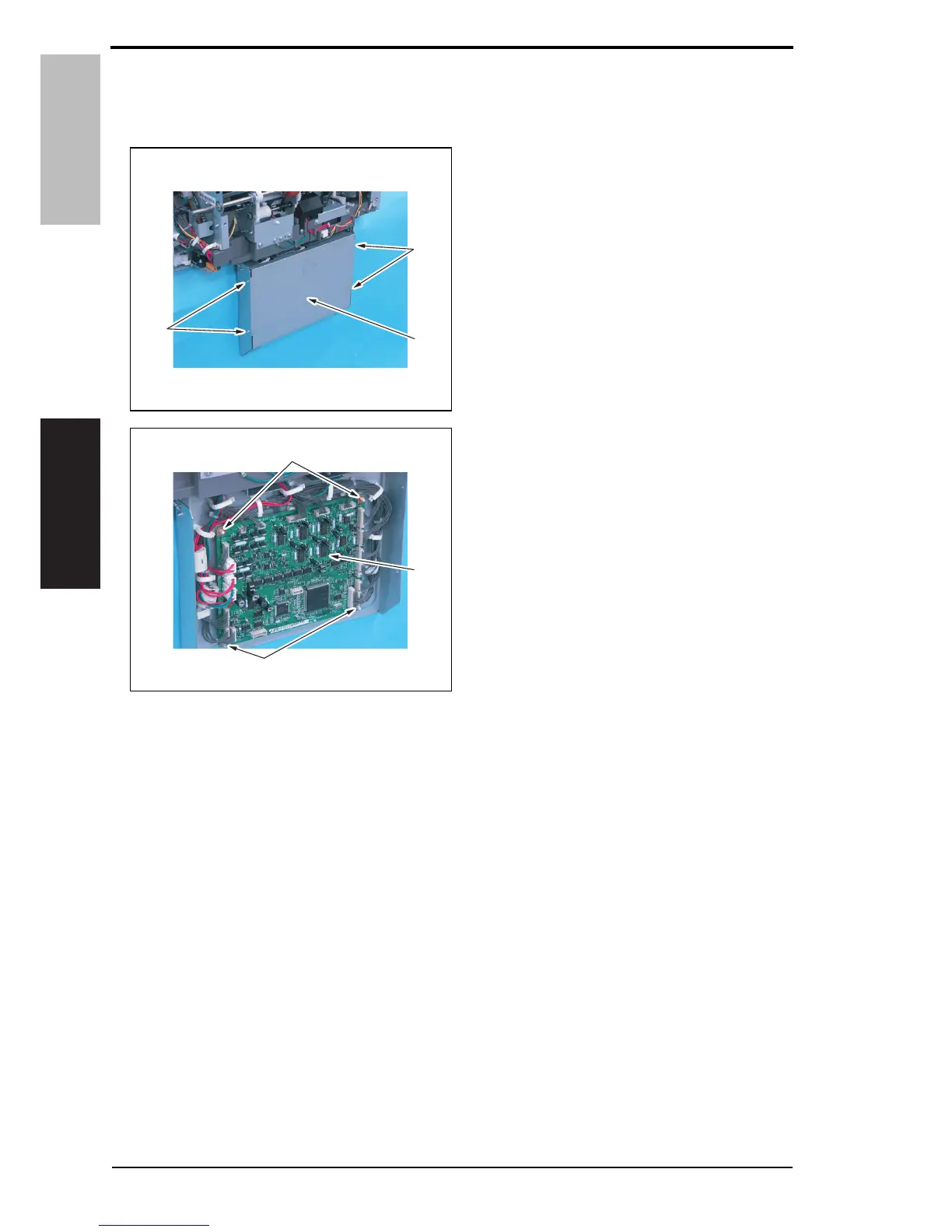

3.4.23 FS control board
1. Remove the tray unit.
See P.25
2. Remove four screws [1] and remove
the cover [2].
3. Disconnect all the connectors on the
FS control board.
4. Remove the board supports [1], and
remove the FS control board [2].
[2]
[1]
[1]
9J08F2C034DA
[2]
[1]
[1]
9J08F2C035DA
