Konica Minolta bizhub C203 Service Manual

6. Other Field Service Ver. 1.0 Jul. 2007
162
bizhub C353/C253/C203
Maintenance

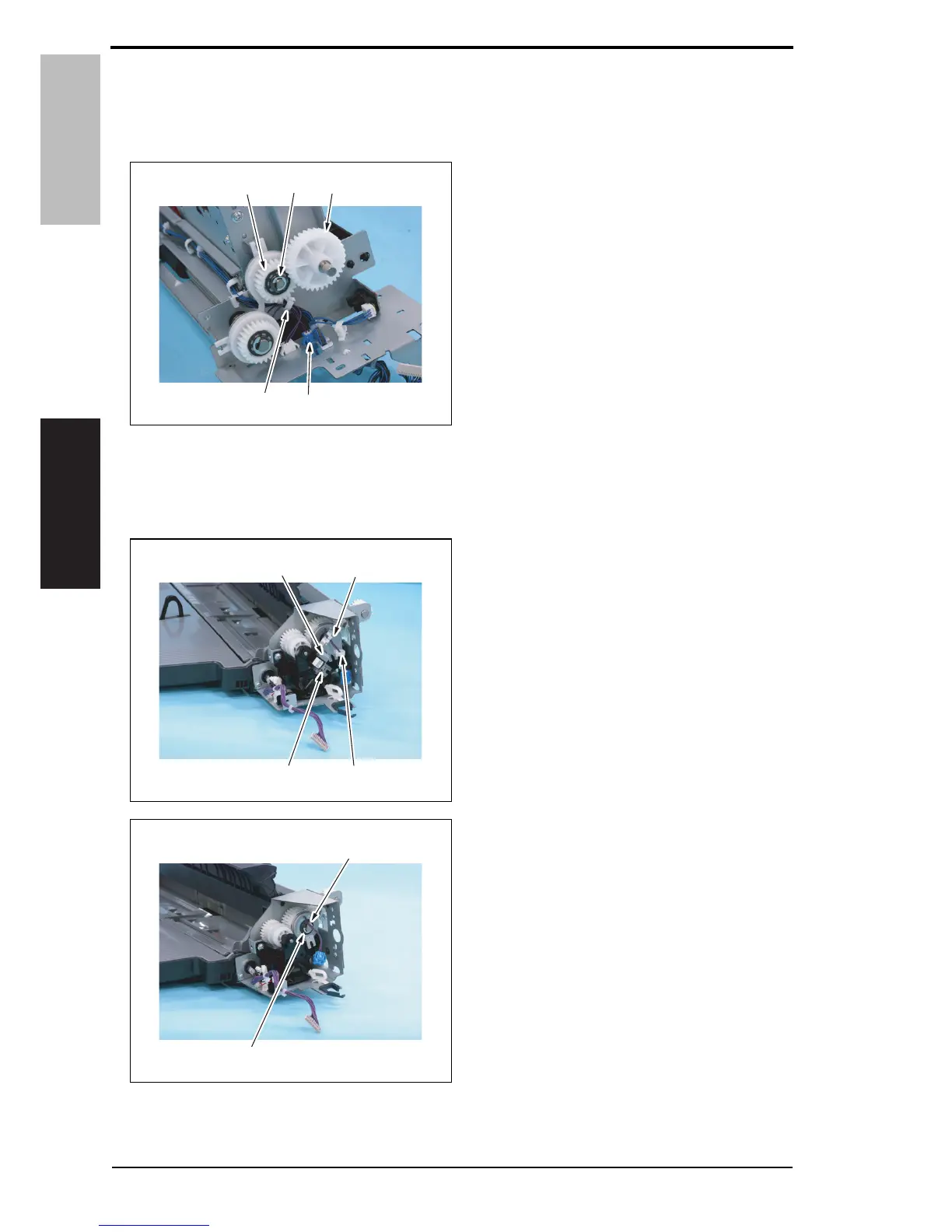

6.3.68 Paper feed tray 2 paper feed clutch (CL2)
1. Remove the tray 2 paper feed assy.
See the steps 1 to 5 of tray 2 feed roller/tray 2 pick-up roller removing procedure.
See P.28
2. Remove the gear [1].
3. Disconnect the connector [2], and
remove the harness from the wire
saddle [3].
4. Remove the E-ring [4], and remove
the paper feed tray 2 paper feed
clutch [5].
NOTE
• When mounting the paper feed tray
2 paper feed clutch [5], set the con-
vex part of the stopper into the con-
cave part of the paper feed tray 2
paper feed clutch.
6.3.69 Manual paper feed clutch (CL4)
1. Remove the manual bypass tray unit.
See P.102
2. Remove the harness from the edge
cover [1] and the wire saddle [2], and
remove the screw [3].
3. Remove the metal plate [4].
4. Remove the E-ring [1], and remove
the manual paper feed clutch [2].
NOTE
• When mounting the manual paper
feed clutch [2], set the convex part
of the stopper into the concave part
of the manual paper feed clutch.
A02EF2C191DA
[1]
[2][3]
[4][5]
A02EF2C192DA
[4]
[3] [2]
[1]
A02EF2C193DA
[1]
[2]

Konica Minolta bizhub C203 Specifications

General

Print Resolution	600 x 600 dpi
Print Technology	Laser
Memory (Standard)	1 GB
Paper Output	250 sheets
Scan Resolution	600 x 600 dpi
Print Speed	20 ppm (black/color)
Copy Speed	20 cpm (black/color)
Standard Paper Size	A4, A5, B5
Connectivity	Ethernet (10/100Base-TX), USB 2.0
Weight	85 kg
Functions	Print, Copy, Scan
First Print Time (Color)	15 seconds
Duplex Printing	Yes
Scan to	Email, FTP, USB
Paper Capacity	Standard: 1, 150 sheets
Type	Color Multifunction Printer
