Konica Minolta bizhub C203 Service Manual

Field Service Ver. 1.0 Jul. 2007 8. Jam display
51
DF-611
Troubleshooting
Troubleshooting

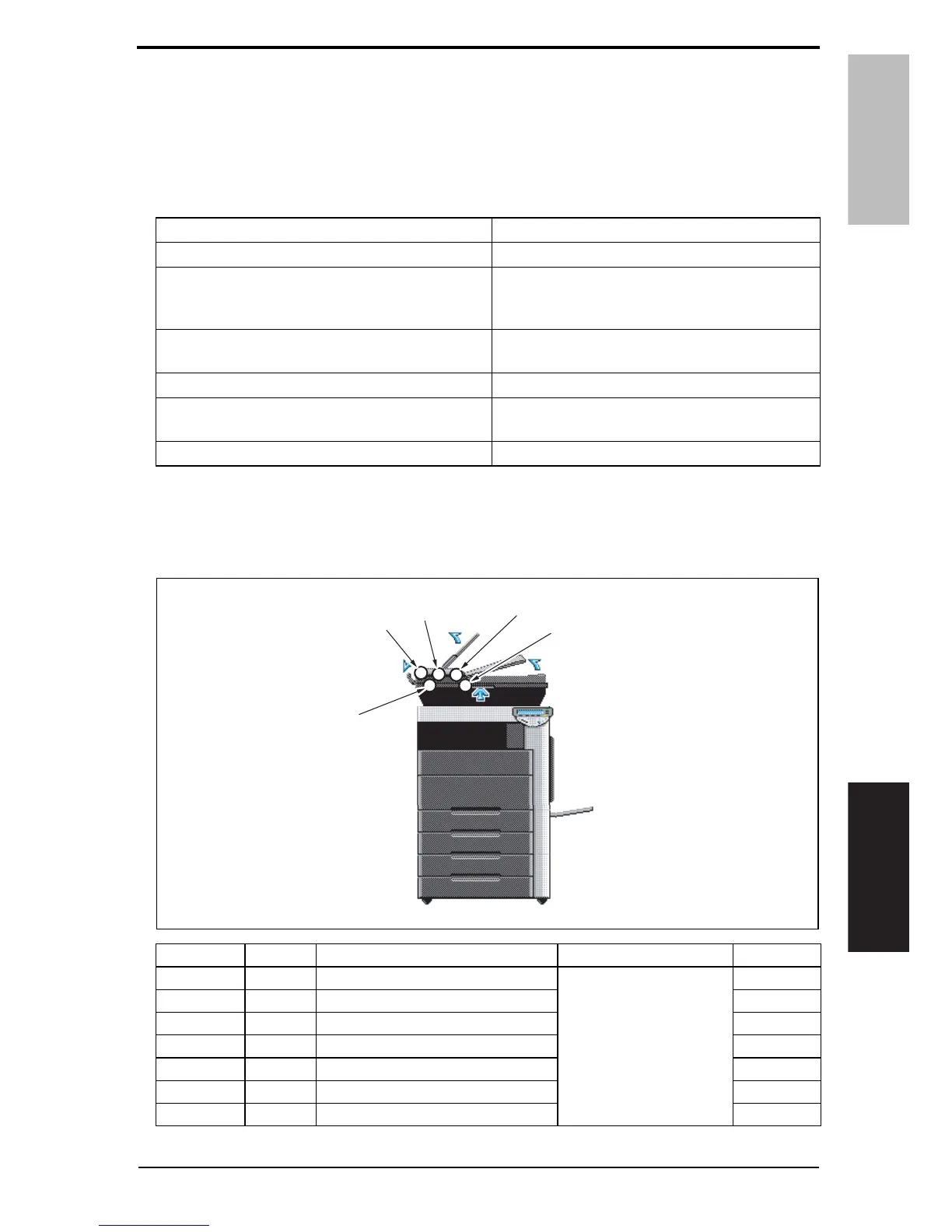

8. Jam display
8.1 Initial check items
• When a paper misfeed occurs, first perform the following initial check items.
8.2 Misfeed display
• When misfeed occurs, message, misfeed location “Blinking” and paper location “Light-
ing” are displayed on the touch panel of the main unit.
Check item Action
Does paper meet product specifications? Replace paper.
Is the paper curled, wavy, or damp?
Replace paper.
Instruct the user on the correct paper storage pro-
cedures.
Is a foreign object present along the paper path, or
is the paper path deformed or worn?
Clean the paper path and replace if necessary.
Are rolls/rollers dirty, deformed, or worn? Clean or replace the defective roll/roller.
Are the edge guide and trailing edge stop at the
correct position to accommodate the paper?
Set as necessary.
Are the actuators operating correctly? Correct or replace the defective actuator.
Display Code Jam type Misfeed access location Action
[1] 6601 Turnover section misfeed
Transportation cover
P. 5 3
[2] 6602 Paper feed section misfeed P. 5 3
[3] 6603 Transport section misfeed P. 5 4
[4] 6604 Paper exit section misfeed P. 5 5
[5] 6605 Image reading section misfeed P. 5 6
[1][2][3][4][5] 6606 Original feeding interval misfeed P. 5 7
[1][2][3][4][5] 6607 Remaining paper misfeed P. 5 7
A01HF4C502DA
[1]
[4]
[2]
[3]
[5]
