Konica Minolta bizhub C203 Service Manual

Field Service Ver. 1.0 Jul. 2007 6. Other
165
bizhub C353/C253/C203Maintenance
6.3.73 IDC registration sensor/MK (IDCS/MK),
IDC registration sensor/YC (IDCS/YC)

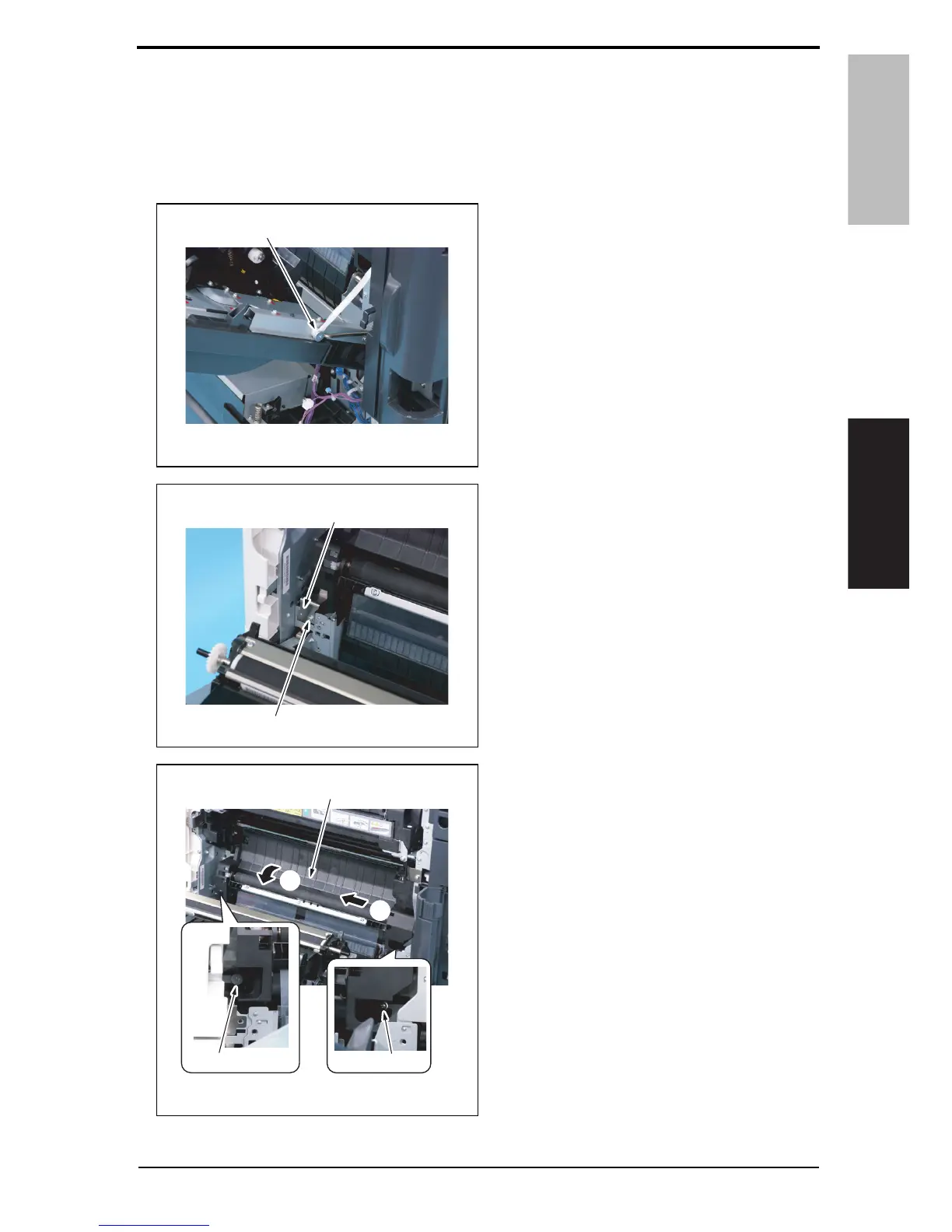

1. Remove the transfer belt unit.
See P.43
2. Remove the manual bypass tray unit.
See P.102
3. Remove the shoulder screw [1].
4. Remove the screw [1], and remove
the plate spring [2].
5. Remove the shoulder screw [1] and
the screw [2].
6. Remove the vertical transport unit [3]
as shown in the left illustration.
NOTE
• Since multiple connectors are con-
nected to the backside of the verti-
cal transport assy, do not pull it by
force.
A02EF2C201DA
[1]
A02EF2C202DA
[1]
[2]
A02EF2C203DA
[1]
[2]
[3]
Ԙ
ԙ
