Konica Minolta bizhub C203 Service Manual

Field Service Ver. 1.0 Jul. 2007 6. Other
95
bizhub C353/C253/C203Maintenance
6.3.24 Front cover
1. Slide out the tray 1.
2. Remove the front door.
See P.81
3. Remove the left cover.
See P.85
4. Remove the toner cartridges (C, M, Y, K).
See P.41
5. Remove the waste toner box.
See P.35
6. Remove the imaging units (C, M, Y, K).
See P.37
7. Remove the right front cover/2.
See P.84

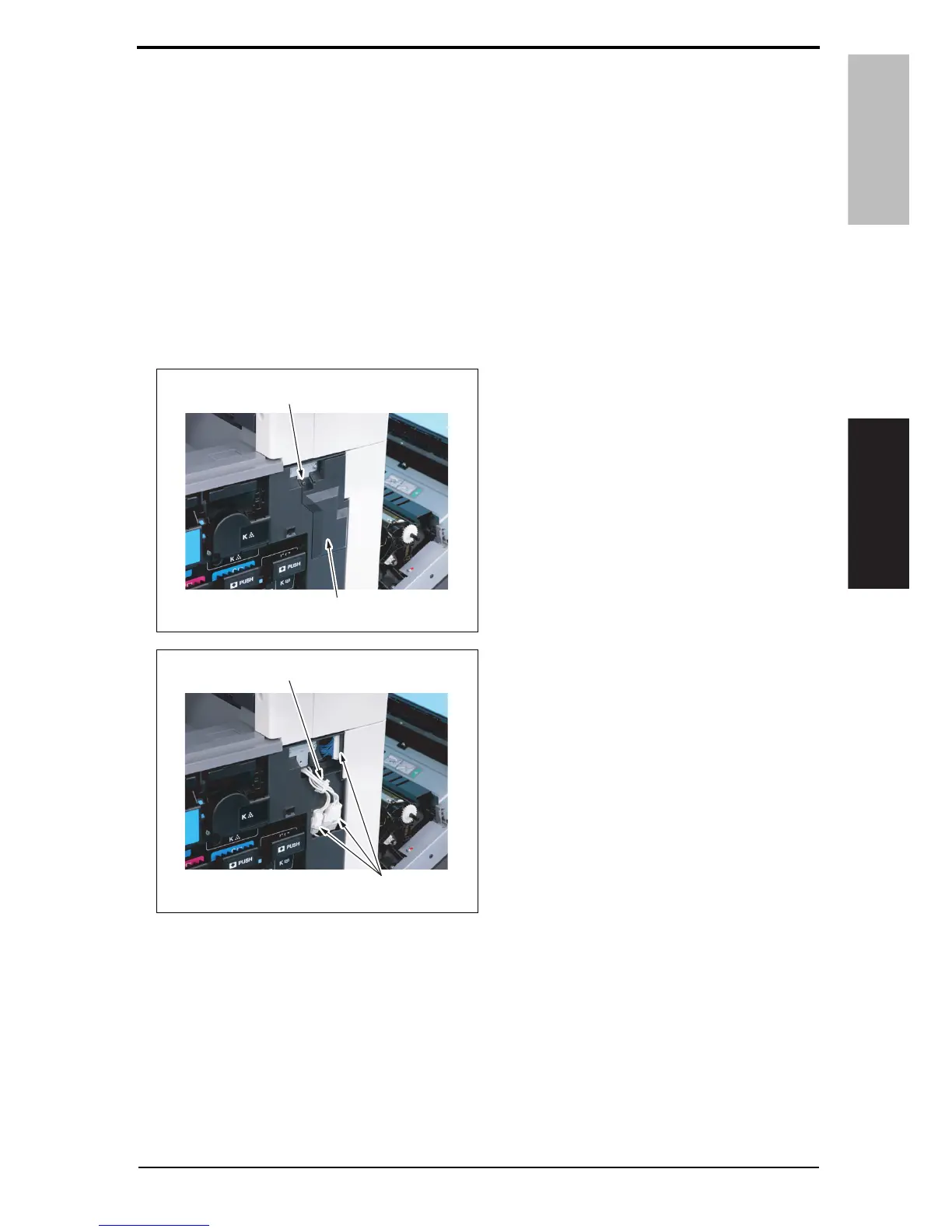

8. Remove the screw [1], and remove
the connector protective cover [2].
9. Disconnect three connectors [1], and
remove the harness from the wire
saddle [2].
A02EF2C036DA
[1]
[2]
A02EF2C037DA
[1]
[2]

Konica Minolta bizhub C203 Specifications

General

Print Resolution	600 x 600 dpi
Print Technology	Laser
Memory (Standard)	1 GB
Paper Output	250 sheets
Scan Resolution	600 x 600 dpi
Print Speed	20 ppm (black/color)
Copy Speed	20 cpm (black/color)
Standard Paper Size	A4, A5, B5
Connectivity	Ethernet (10/100Base-TX), USB 2.0
Weight	85 kg
Functions	Print, Copy, Scan
First Print Time (Color)	15 seconds
Duplex Printing	Yes
Scan to	Email, FTP, USB
Paper Capacity	Standard: 1, 150 sheets
Type	Color Multifunction Printer
