2. PERIODIC CHECK
25
Field Service Ver2.0 Aug.2005
FS-509/604

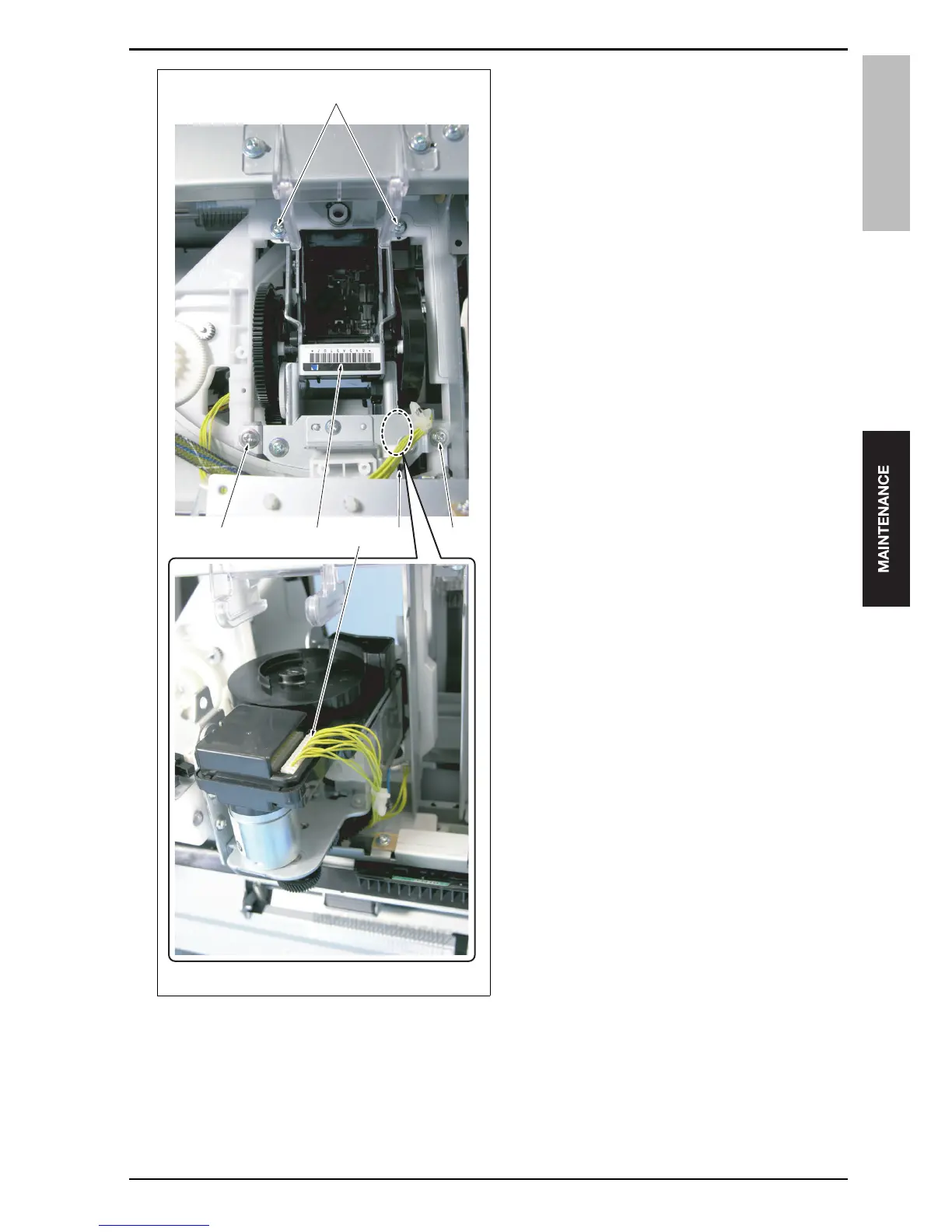

21. Remove 4 screws [1], and then remove the stapler
/Rr [2] and disconnect the connector [3].
Note
• When removing the stapler /Rr [2], be sure not
to damage PS13 [4].
[3]
[1]
[1] [1][2] [4]
15sjf2c025na
