Konica Minolta SKR 3000 - Aerodr Battery Charger2

4.1 LED display of respective devices
101
Chapter 4

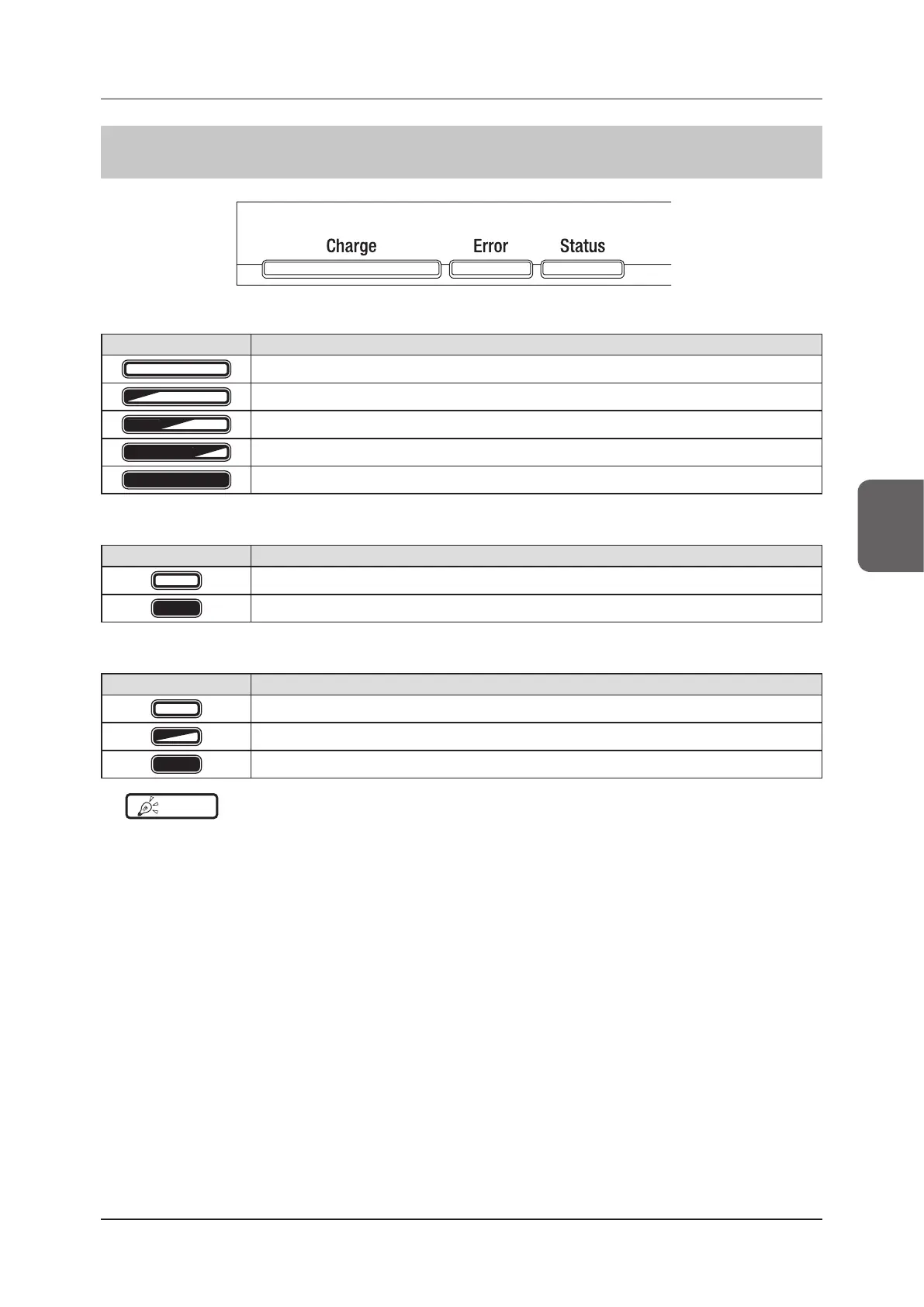

4.1.12 AeroDR Battery Charger2
Charge: Feeding LED (blue)
Display pattern Status
Shutdown condition or standing by for insertion of the DR Detector
DR Detector battery charging (battery level is less than 2 %)
DR Detector battery charging (battery level is 3 to 49 %)
DR Detector battery charging (battery level is 50 to 79 %)
DR Detector battery charging (battery level is higher than 80 %)
Error : Error LED (orange)
Display pattern Status
Shutdown condition or operating normally
Error occurred
Status : Status LED (green)
Display pattern Status
Shutdown condition
Operating
Registration processing of the inserted DR Detector is complete
HINT
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
• Because the charger dedicated for charging does not perform registration processing of the DR Detector, the status
LED always ashes slowly.
• If an AeroDR 3 1417HD, AeroDR 3 1717HD and AeroDR 3 1012HQ are installed to the AeroDR Battery Charger2,
the Feeding LED shows the same remaining battery percentage as the Battery LED of the AeroDR 3 1417HD, Aero-
DR 3 1717HD and AeroDR 3 1012HQ. For the AeroDR 3 1417HD, AeroDR 3 1717HD and AeroDR 3 1012HQ Bat-
tery LED displays, refer to
"4.1.3 AeroDR 3 1417HD/AeroDR 3 1717HD/AeroDR 3 1012HQ" .
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
