4.1
LED display of respective devices
97
Chapter 4

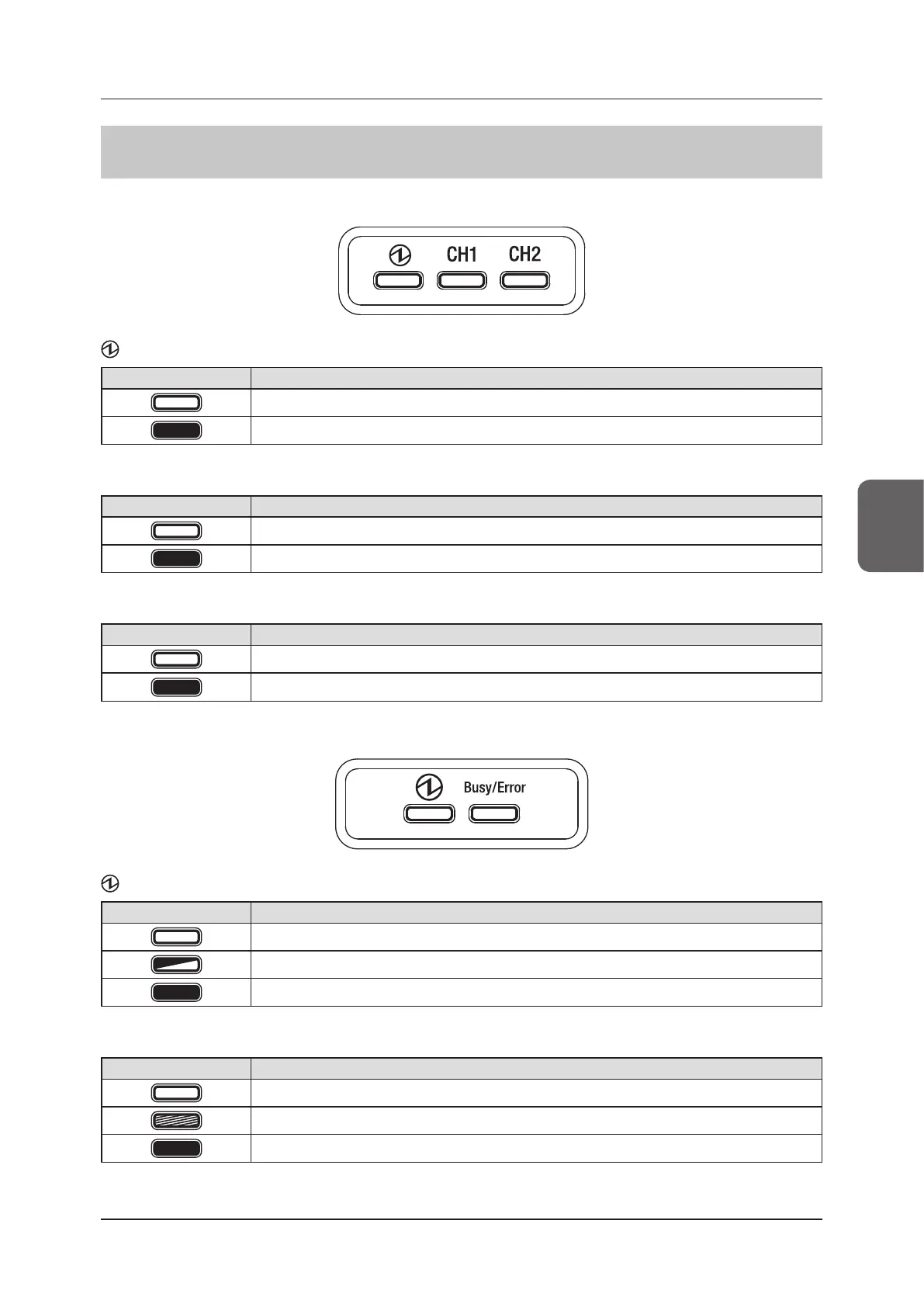

4.1.5 AeroDR Interface Unit2
Detector Connection LED
: Power LED (green)
Display pattern Status
Shutdown condition
Operating
CH1 : Feeding1 LED (blue)
Display pattern Status
Shutdown condition or feeding1 is not connected to the DR Detector
The DR Detector is connected to feeding1
CH2 : Feeding2 LED (blue)
Display pattern Status
Shutdown condition or feeding2 is not connected to the DR Detector
The DR Detector is connected to feeding2
Generator Interface LED
: Power LED (green)
Display pattern Status
Shutdown condition
Operating and not connected to the image processing controller
Operating and connected to the image processing controller
Busy/Error : Busy/error LED (orange)
Display pattern Status
Shutdown condition or standing by
Exposing or performing maintenance
Error occurred
