KTD-00738-C Public User Manual Date: 2008-09-16 Page 15 of 91
3.3 KT690-FW/mITX System overview

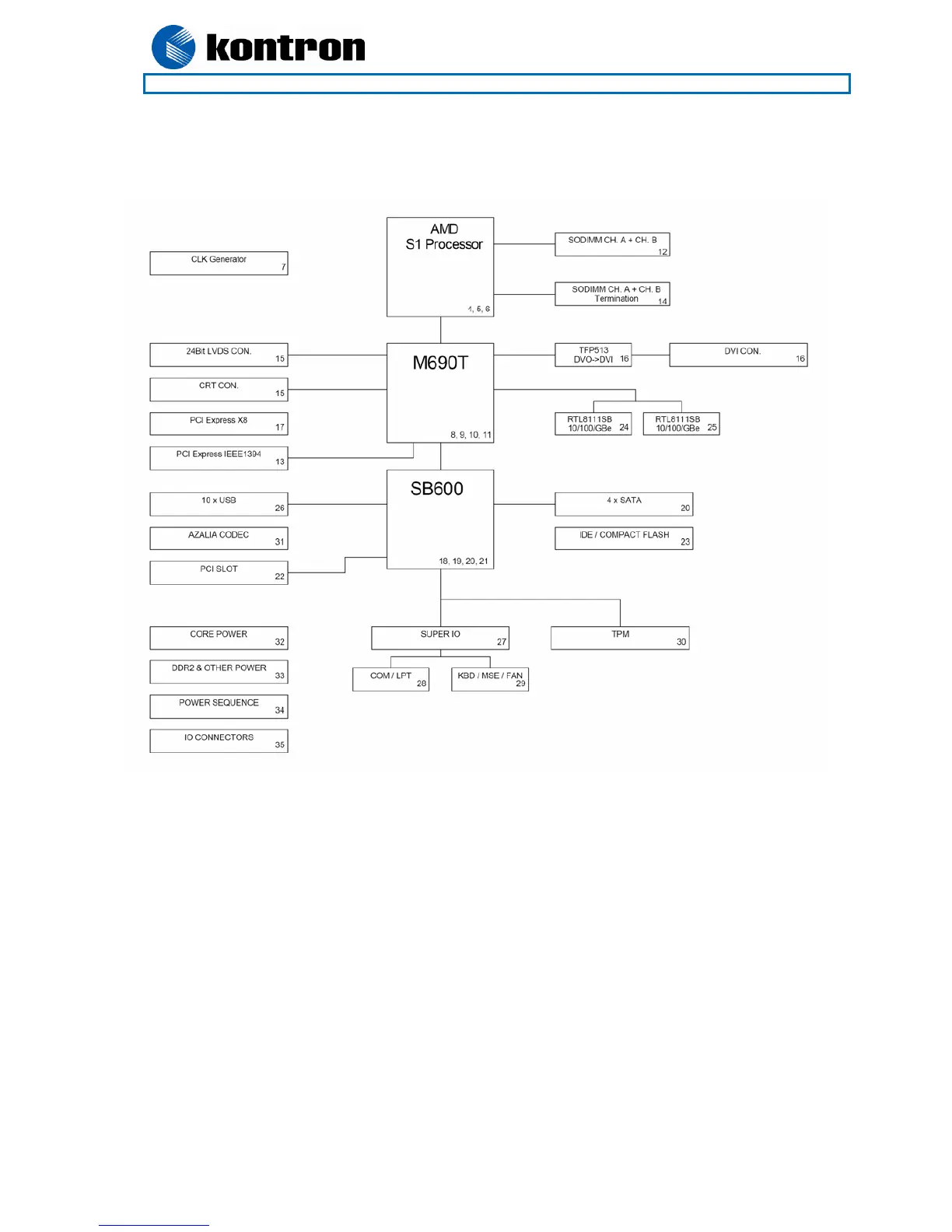

The block diagram below shows the architecture and main components of the KT690-FW/mITX board. The
two key components on the board are the AMD
®
M690T and AMD
®
SB600 Embedded Chipsets.
