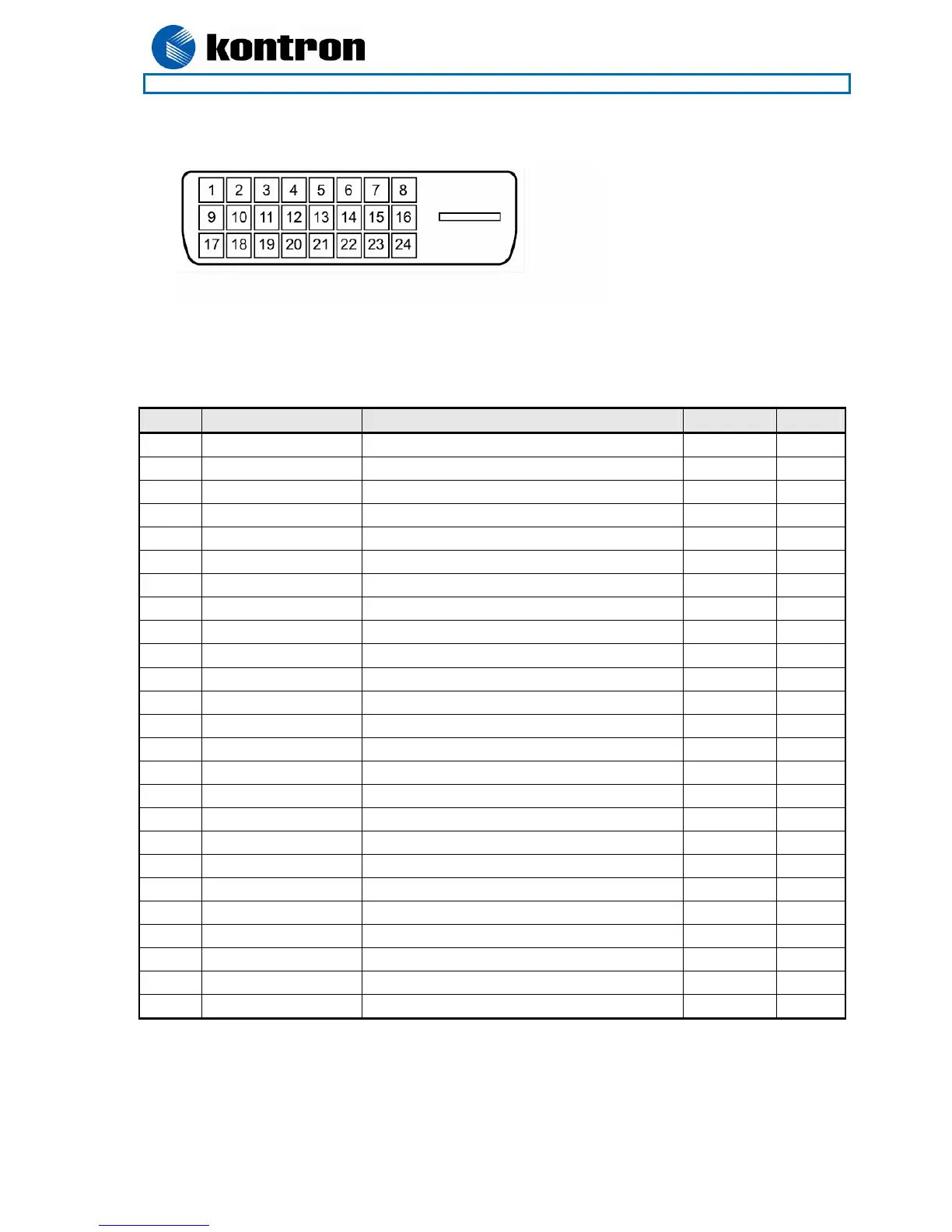

4.4.2 DVI Connector (DVI-D, digital only)
Female socket, front view
Note: DVI analogue signals are not supported
Signal Description - DVI Connector:
Pin No. Signal Description Type Pull Up
1 TMDS Data 2- Digital Red – (Link 1) LVDS OUT
2 TMDS Data 2+ Digital Red + (Link 1) LVDS OUT
3 TMDS Data 2/4 Shield PWR
4 N.C. -
5 N.C. -
6 DDC Clock DDC Clock IO 2K2
7 DDC Data DDC Data IO 2K2
8 N.C. -
9 TMDS Data 1- Digital Green – (Link 1) LVDS OUT
10 TMDS Data 1+ Digital Green + (Link 1) LVDS OUT
11 TMDS Data 1/3 Shield PWR
12 N.C. -
13 N.C. -
14 +5V (55mA) Power for monitor when in standby PWR
15 GND PWR
16 Hot Plug Detect Hot Plug Detect I
17 TMDS Data 0- Digital Blue – (Link 1) / Digital sync LVDS OUT
18 TMDS Data 0+ Digital Blue + (Link 1) / Digital sync LVDS OUT
19 TMDS Data 0/5 Shield PWR
20 N.C. -
21 N.C. -
22 TMDS Clock Shield PWR
23 TMDS Clock+ Digital clock + (Link 1) LVDS OUT
24 TMDS Clock- Digital clock - (Link 1) LVDS OUT
C1 - C5 N.C. -
