4.4.4 TV-Out (Not supported)
The KT690/mITX boards include TV-Out connector with support for Component, S-Video and Composite
Output interfaces and NTSC/ PAL output format.
The KT690 board includes Macrovision support.
IMPORTANT: If the TV-Out option is available then you must make agreement with Macrovision
(http://www.macrovision.com/
) about licence fee. Only Macrovision (not Kontron) can determine the actual
licence fee which depends on the application.

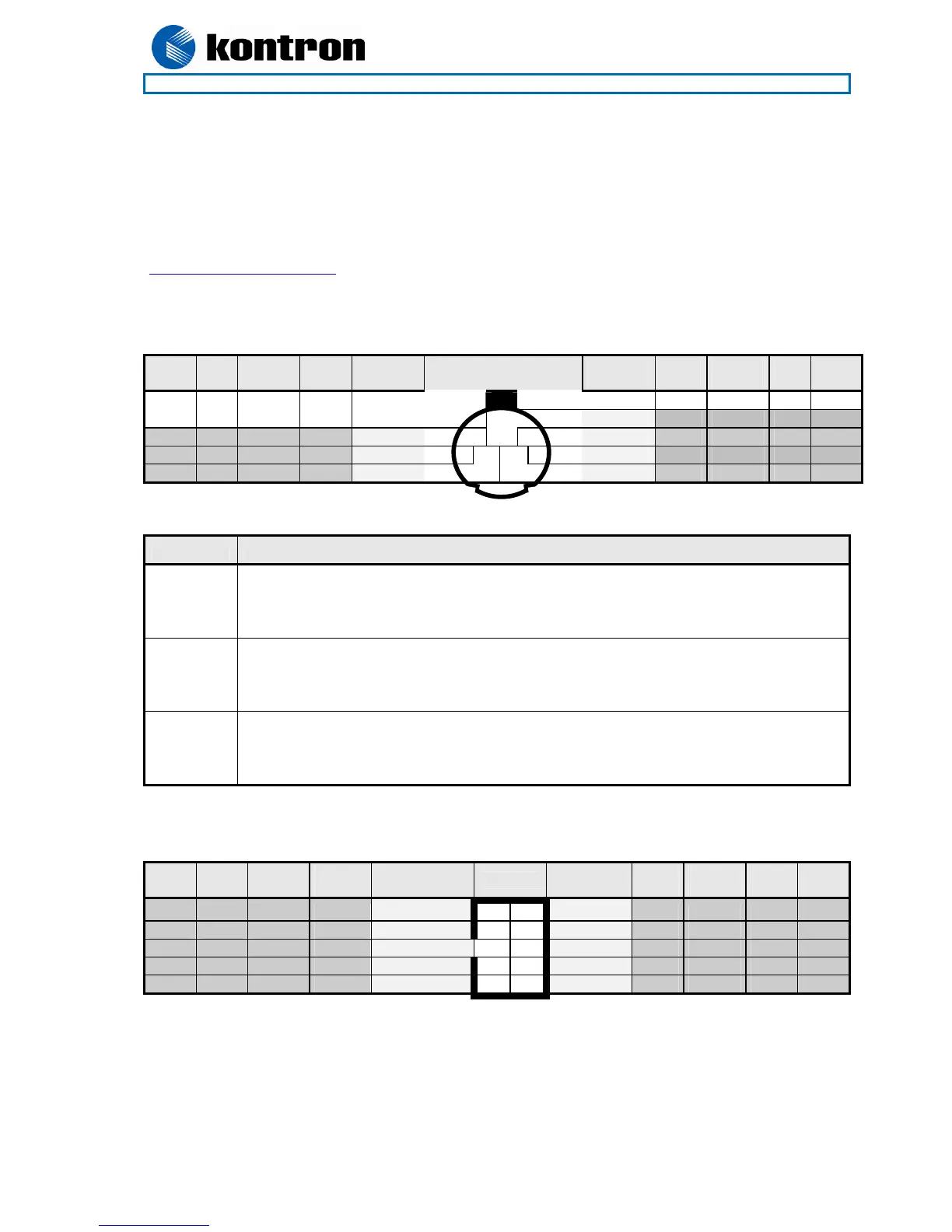

KT690/mITX TV-Out connector:
Note
Pull
U/D Ioh/Iol Type Signal
PIN
Signal Type Ioh/Iol
Pull
U/D Note
GND
TVDACC 4 7 3 TVDACB
GND 2 6 5 1 GND
GND TVDACA
Signal Description
TVDACA TVDAC Channel A output supports:
Composite: CVBS signal
Component: Chrominance (Pb) analog signal
TVDACB TVDAC Channel B output supports:
S-Video: Luminance analog signal
Component: Luminance (Y) analog signal
TVDACC TVDAC Channel C output supports:
S-Video: Chrominance analog signal
Component: Chrominance (Pr) analog signal
KT690-FW/mITX TV-Out connector:
Note
Pull
U/D Ioh/Iol Type Signal
PIN
Signal Type Ioh/Iol
Pull
U/D Note
TVDACC 1 2 TVDACB
SMBC 3 4 TVDACA
SMBD 5 6 -12V
+5V 7 8 +12V
GND 9 10 GND
