2.4 Install Rear Camera（Optional to Install）
Please check whether rear camera can work normally before mounting it,
(If not, CONTACT US). Two common mounting positions of rear camera:
Position 1: Install the rear camera near license plate.
(Note: Position 1 supports both rear viewing and reverse assist.)
①
Plug the rear camera into the AV-IN rear camera port on the camera.
②

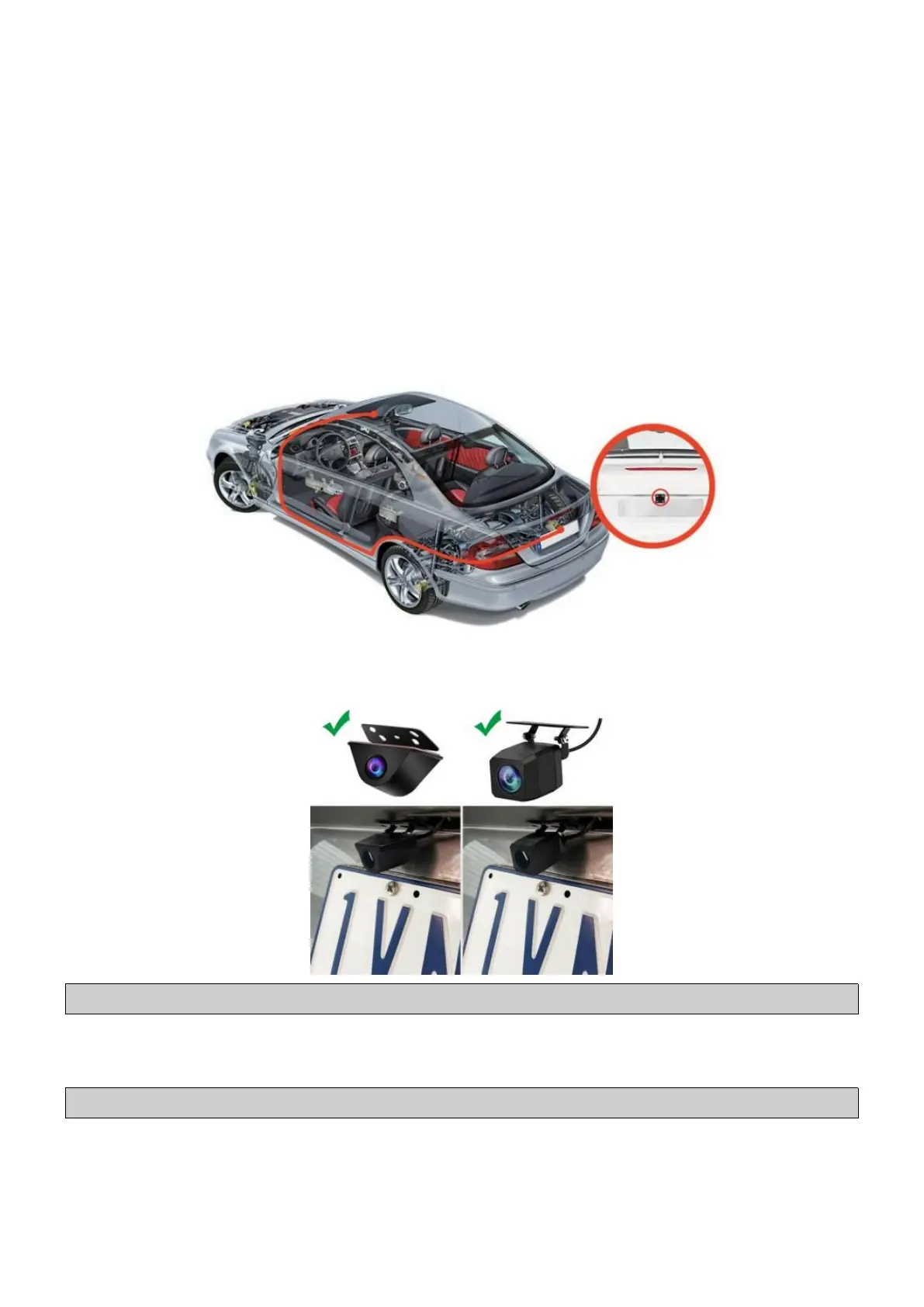

Arrange the rear camera cable along from the top of windshield, door
frame, A-pillar, B-pillar, car boot, all the way to the car license plate, then
organize/hide the cable(As shown in the figure below).
③
Choose a suitable mounting position near the license plate and fix the
rear camera with the provided screws.
Note: It is recommended to set the rear camera angle pointing slightly down.
④ Connect the red wire on rear camera’s extension cable to the positive
lead of vehicle’s reversing lamp.
Note: It's no need to connect the red wire if you don't need reverse assist.
Position 2: Install the rear camera on rear windshield.
(Note: Position 2 supports rear view only and it is easier to mount.)
① Plug the rear camera into the AV-IN rear camera port on the camera.
