VP-427X1 – Defining VP-427X1 4K HDBT/HDMI Receiver/Scaler
5

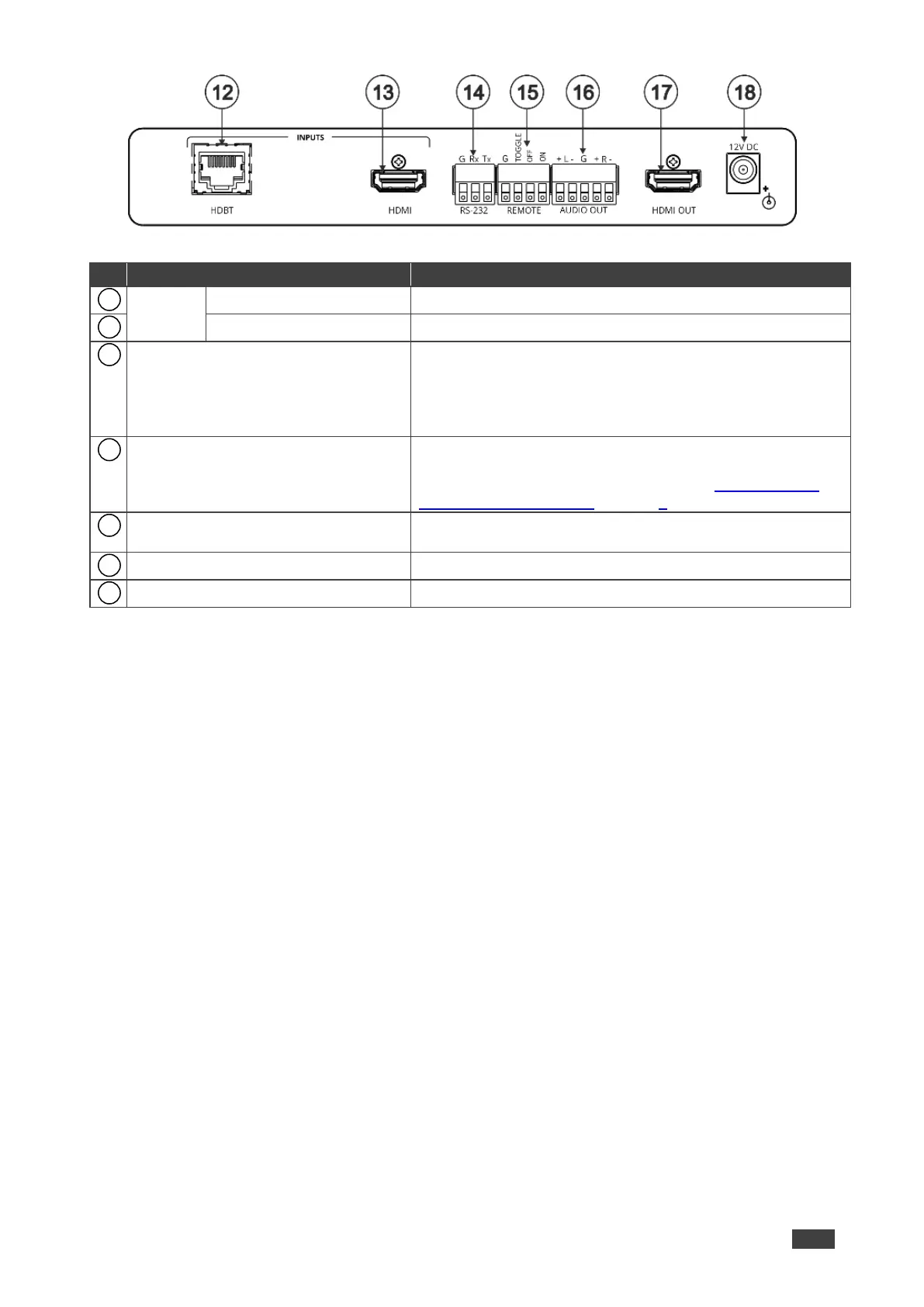

Figure 2: VP-427X1 4K HDBT/HDMI Receiver/Scaler Front Panel
#
Feature
Function
INPUTS
HDBT RJ-45 Connector
Connect to a transmitter (for example, the Kramer TP-780Txr).
HDMI Connector
Connect to an HDMI source.
RS-232 CONTROL 3-pin Terminal
Block Connector
Connect to a serial controller or PC to control VP-427X1
(default configuration), connect to a device (e.g., a display) to
control it via VP-427X1, or use for RS-232 tunneling via
HDBT.
Configurable via the device web page.
REMOTE Contact-Closure 4-pin
Terminal Block Connector
Connect to contact closure switches, an occupancy sensor
and/or toggle switches (contact between the desired pin and
GND pin), to turn the display on or off (see Connecting the
Remote Control Switches on page 9).
AUDIO 5-pin Terminal Block
Connector
Connect to a balanced stereo audio acceptor.
HDMI OUT Connector
Connect to an HDMI acceptor.
12V DC Connector
Connect to the supplied power adapter.
