VP-427X1 – Operating and Controlling VP-427X1
9
Operating and Controlling VP-
427X1
Operate and control VP-427X1 by:
• Using Front Panel Buttons on page 9.
• Connecting the Remote Control Switches on page 9.
• Using the OSD Menu on page 10.
• Operating via Ethernet on page 18.
Using Front Panel Buttons
Use VP-427X1 front panel buttons enable performing the following actions:
• Pressing the INPUT to and cycling through the inputs to select an input.
• Using the MENU, ENTER (when in the OSD menu), + and – buttons to control the
device (see Using the OSD Menu on page 10).
• Pressing MENU and - to reset the resolution to 1080p.
• Pressing ENTER and + to reset the resolution to XGA.
• Pressing FREEZE to freeze the image.

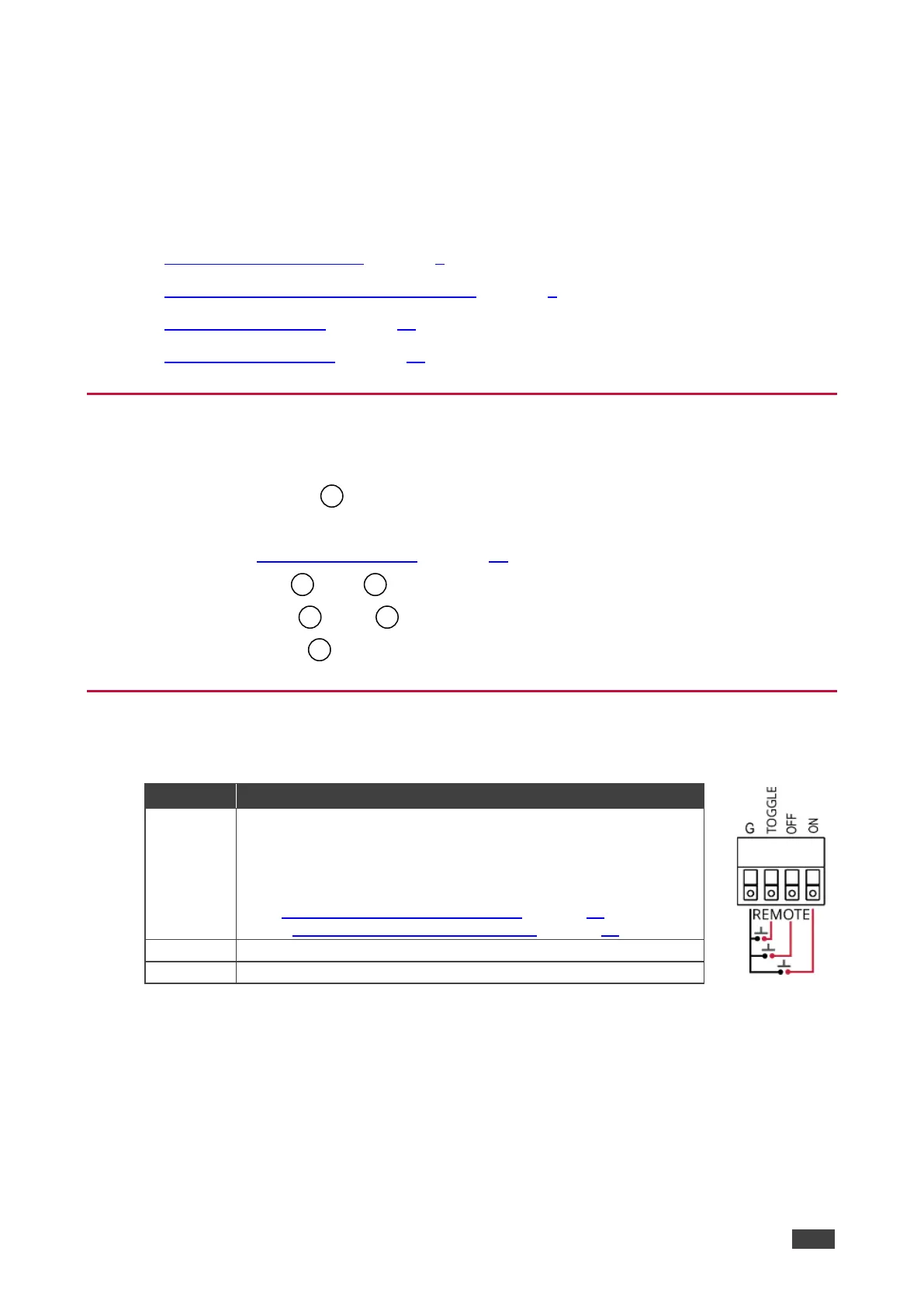

Connecting the Remote Control Switches
Control the display status via remote control switches.
Pin Name
Function
TOGGLE
Toggle the display on / off (via CEC): A single button toggles
between display on and display off.
Alternatively, using the VP-427X1 OSD, configure turning the
display on or off according to whether the switch is open or
closed, for example, when using an occupancy sensor.
(See Configuring TOGGLE Pin Behavior on page 17
and/or Defining the TOGGLE Pin Behavior on page 35).
OFF
Turn off the display (via CEC).
ON
Turn on the display (via CEC).
