Connecting the Output to a Balanced/Unbalanced
Stereo Audio Acceptor
The following are the pinouts for connecting the output to a balanced or unbalanced stereo
audio acceptor:

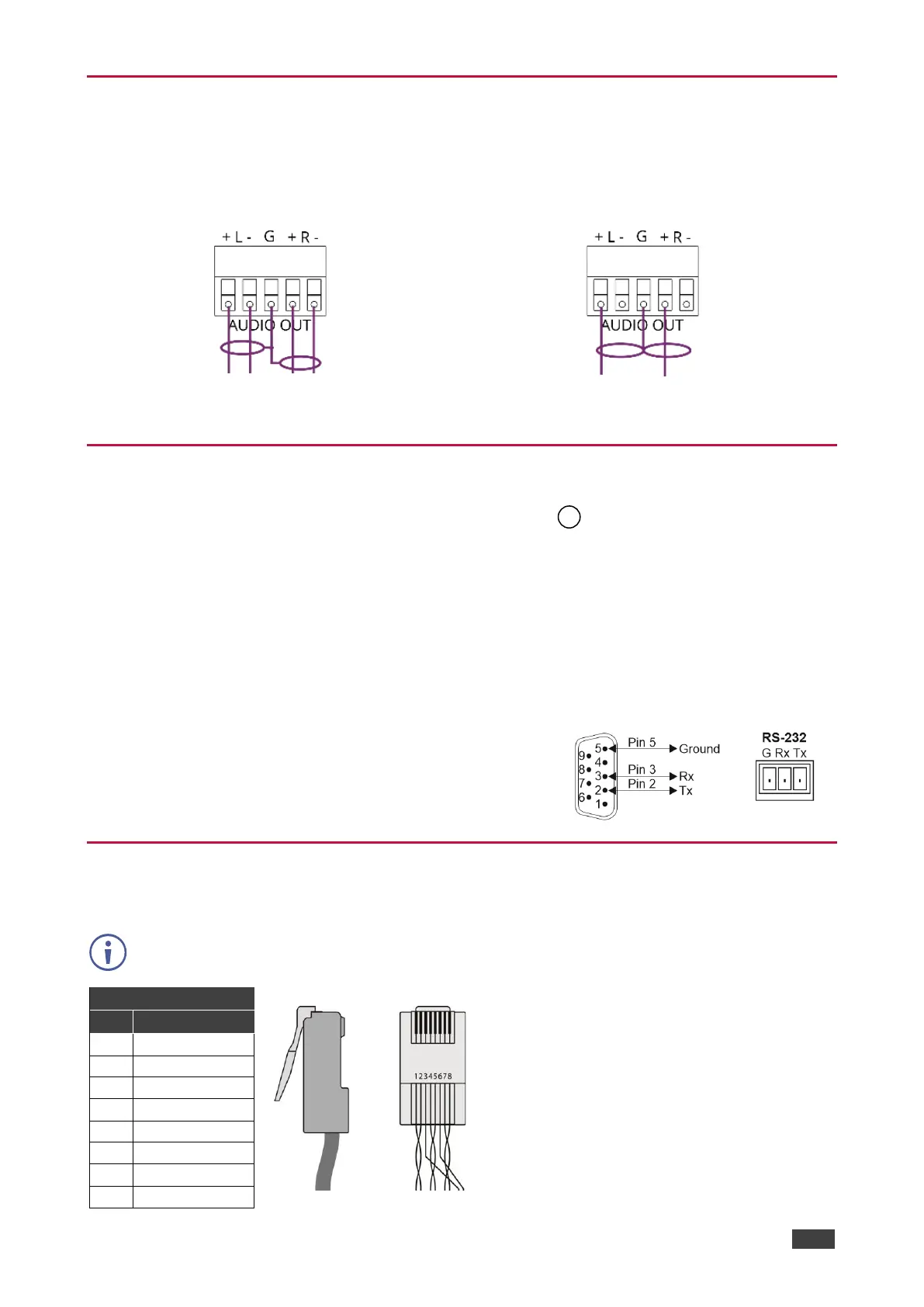

Figure 4: Connecting to a Balanced Stereo Audio
Acceptor
Figure 5: Connecting to an Unbalanced Stereo Audio
Acceptor
Connecting to VP-427X1 via RS-232
You can connect to VP-427X1 via an RS-232 connection using, for example, a PC.
VP-427X1 features an RS-232 3-pin terminal block connector allowing RS-232 control of VP-
427X1.
Connect the RS-232 terminal block on the rear panel of VP-427X1 to a PC/controller, as
follows:
From the RS-232 9-pin D-sub serial port connect:
• Pin 2 to the TX pin on the VP-427X1 RS-232 terminal block
• Pin 3 to the RX pin on the VP-427X1 RS-232 terminal block
• Pin 5 to the G pin on the VP-427X1 RS-232 terminal block
RS-232 Device VP-427X1
Wiring RJ-45 Connectors
This section defines the HDBT pinout, using a straight pin-to-pin cable with RJ-45 connectors.
For HDBT cables, it is recommended that the cable ground shielding be connected/soldered
to the connector shield.
EIA /TIA 568B
PIN
Wire Color
1
Orange / White
2
Orange
3
Green / White
4
Blue
5
Blue / White
6
Green
7
Brown / White
8
Brown
