IP-Driven CEC Signals Routing via Built-in Control
Gateway
VS-411XS sends CEC commands from a control system, connected by LAN, via the
VS-411XS built-in control gateway, to control devices that are connected to the VS-411XS
HDMI output and the selected input.
The built-in control gateway sends the control commands to the connected controlled devices,
and sends their received responses to the control system when DIP-switch 3 is enabled
(see Setting DIP-Switches on page 15).

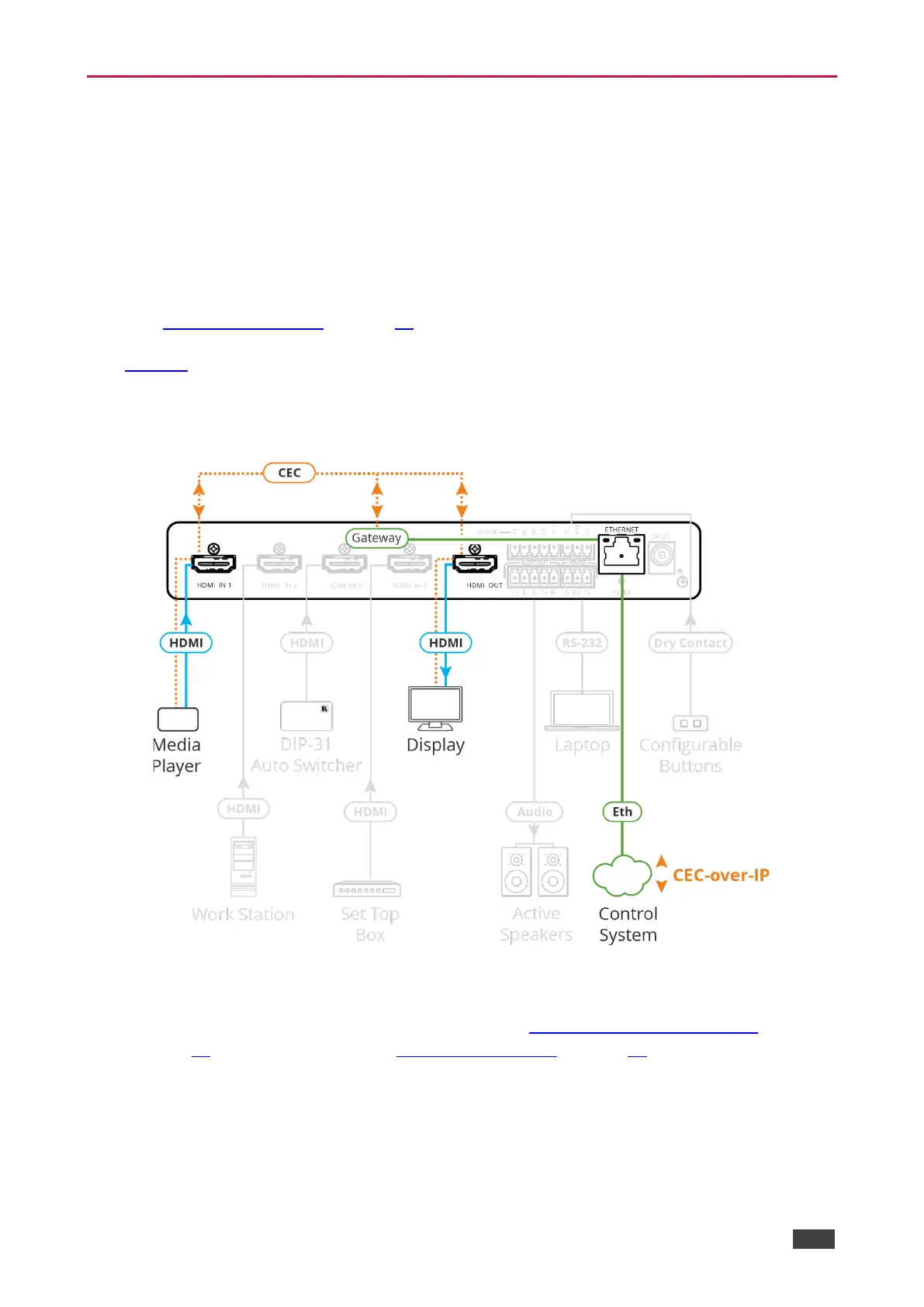

Figure 8 shows the VS-411XS built-in control gateway connection. A control system
supporting CEC-over-IP (such as Kramer Control) is connected to the Ethernet port via LAN.
The control system sends CEC commands to the selected input (IN 1, in this example) and
the output, and receives responses from them.
Figure 8: CEC Signals via Control Gateway
Built-in CEC gateway ON/OFF configuration and management (such as the CEC members
logical addresses view) is performed via web-UI (see Define CEC Gateway Settings
on page 29) and DIP-switches (see Setting DIP-Switches on page 15) for CEC notification
settings.
