VS-44H2A – Connecting VS-44H2A
10

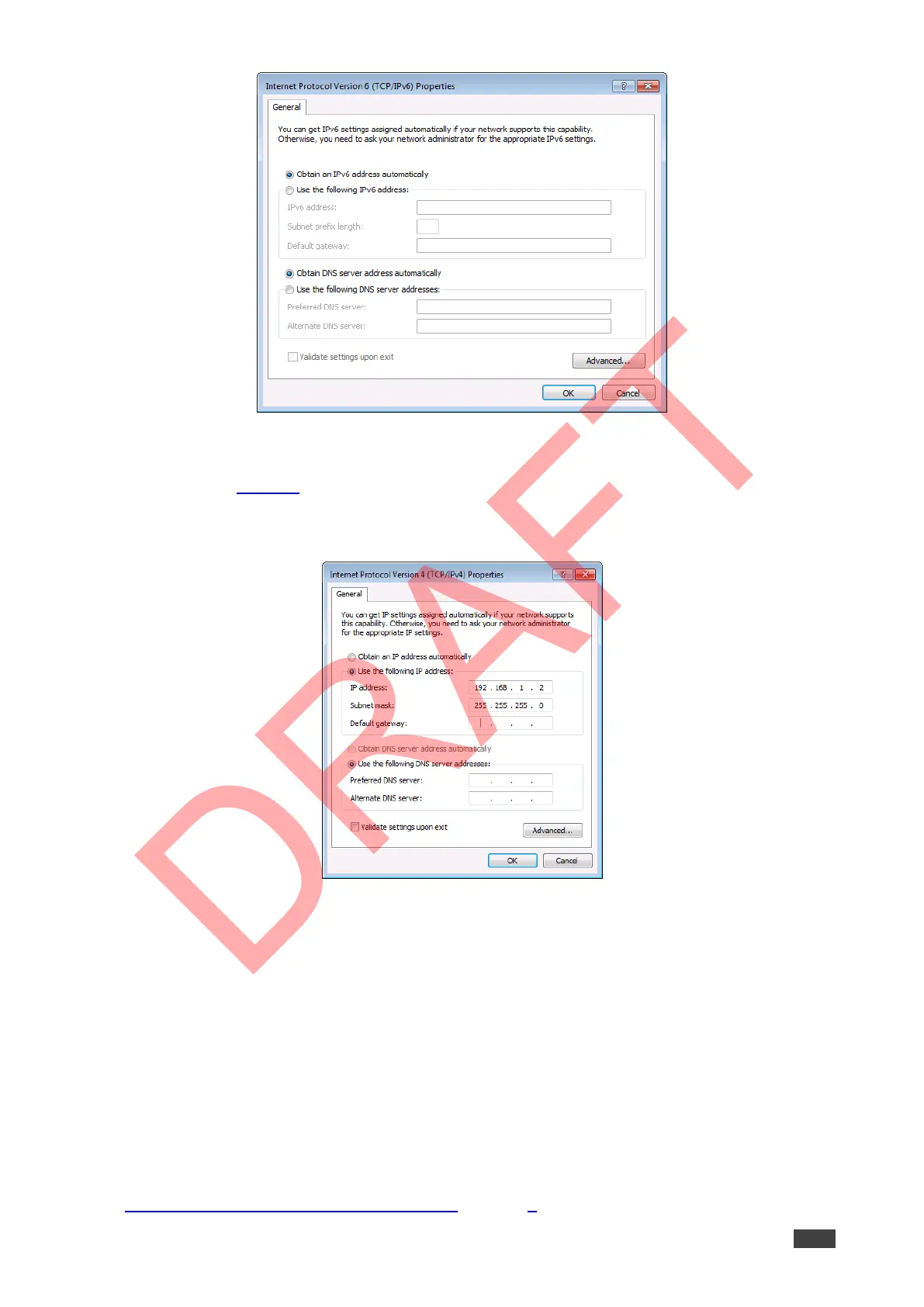

Figure 7: Internet Protocol Version 6 Properties Window
6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 8.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
Figure 8: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the VS-44H2A to the Ethernet port on a network hub or
using a straight-through cable with RJ-45 connectors.
Control Configuration via Ethernet Port
To control several units via Ethernet, connect the Master unit (Device 1) via the Ethernet port
to the Ethernet port of your PC. Use your PC provide initial configuration of the settings (see
Connecting VS-44H2A via ETHERNET Port on page 8).
DRAFT

Kramer VS-44H2A Specifications

General

Certification	CE, WEEE
Housing color	Black
On/off switch	Yes
Rack capacity	1U
Housing material	Aluminum
USB connector type	Mini-USB
HDMI input ports quantity	4
Ethernet LAN (RJ-45) ports	1
Built-in display	No
HDCP version	2.2
Product type	AV matrix switcher
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	RoHS
Harmonized System (HS) code	85299097

Weight and Dimensions

Depth	237.2 mm
Width	436.4 mm
Height	43.6 mm
Weight	2000 g
Package depth	330 mm
Package width	525 mm
Package height	107 mm
Package weight	2900 g
