Settings
69
Pos: 34 /BA/Einstell ungen/Schwader/Ei nstellen der Aushubhöhe i n Vorgewendestellun g SW 1000 @ 137\mod_135350667 3040_78.docx @ 1218936 @ @ 1
10.2 Setting the Lifting Height in Headland Position
SW1000024_2

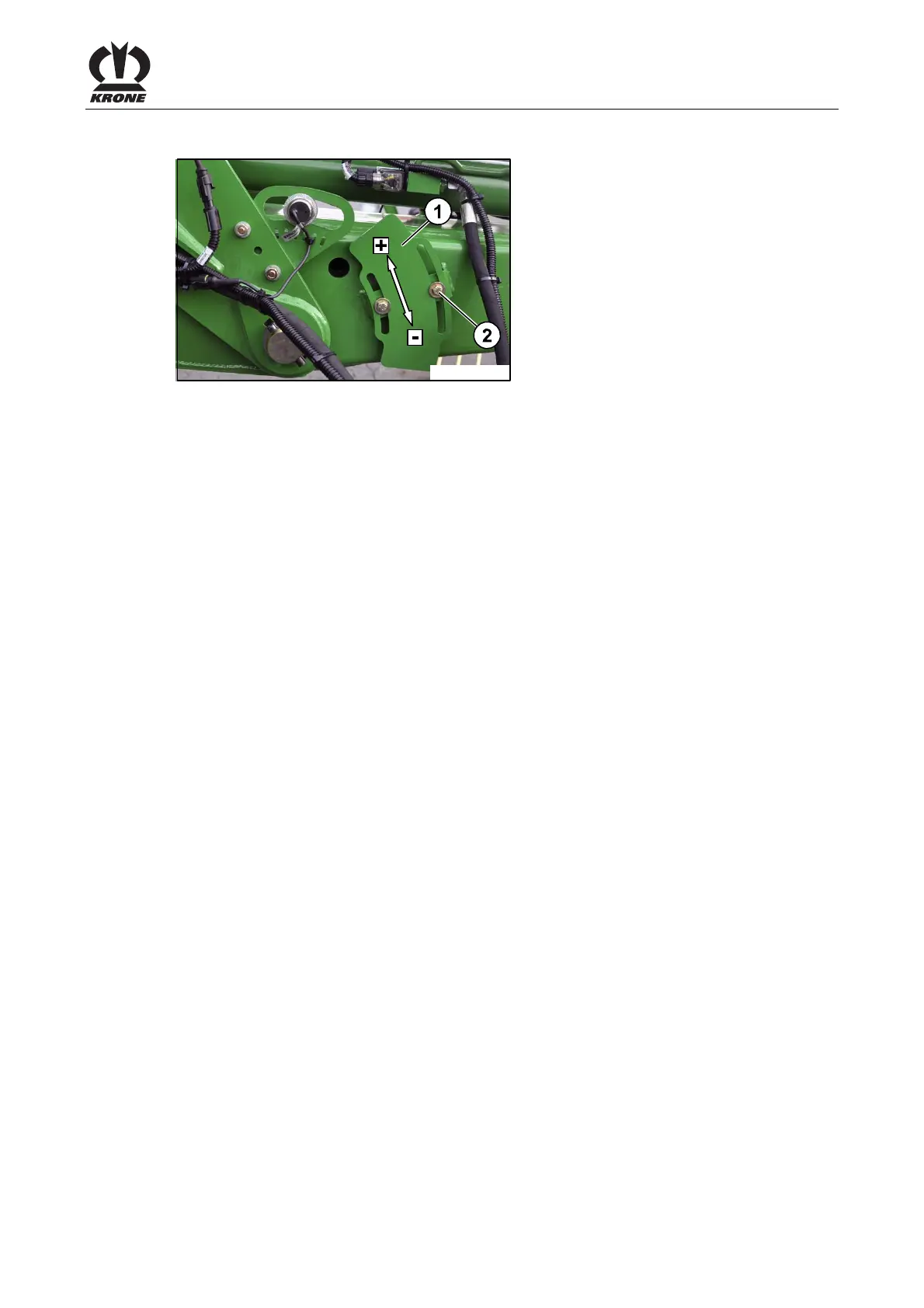

Fig. 43
The lifting height of the rotors in headland position is determined by the position of the sensor
plate (1) on the respective outrigger arm.
The lifting height is set by adjusting the sensor plate (1).
To do this:
• Loosen the screws (2).
• Move the sensor plate in the oblong hole.
Moving sensor holder in "+" direction: The lifting height will be reduced.
Moving sensor holder in "-" direction: The lifting height will be increased.
