10.4 Regulating direction of travel
Pos: 39 /BA/Einstell ungen/Schwader/Fahr trichtung regulier en Bild SW 1000 @ 37\mod_126330 4466668_78.doc x @ 338752 @ 2 @ 1
SW1000015
1
2
Figure 45
Pos: 40 /BA/Einstell ungen/Schwader/Fahr trichtung regulier en Text @ 36\mod_12633023 90731_78.docx @ 338727 @ @ 1

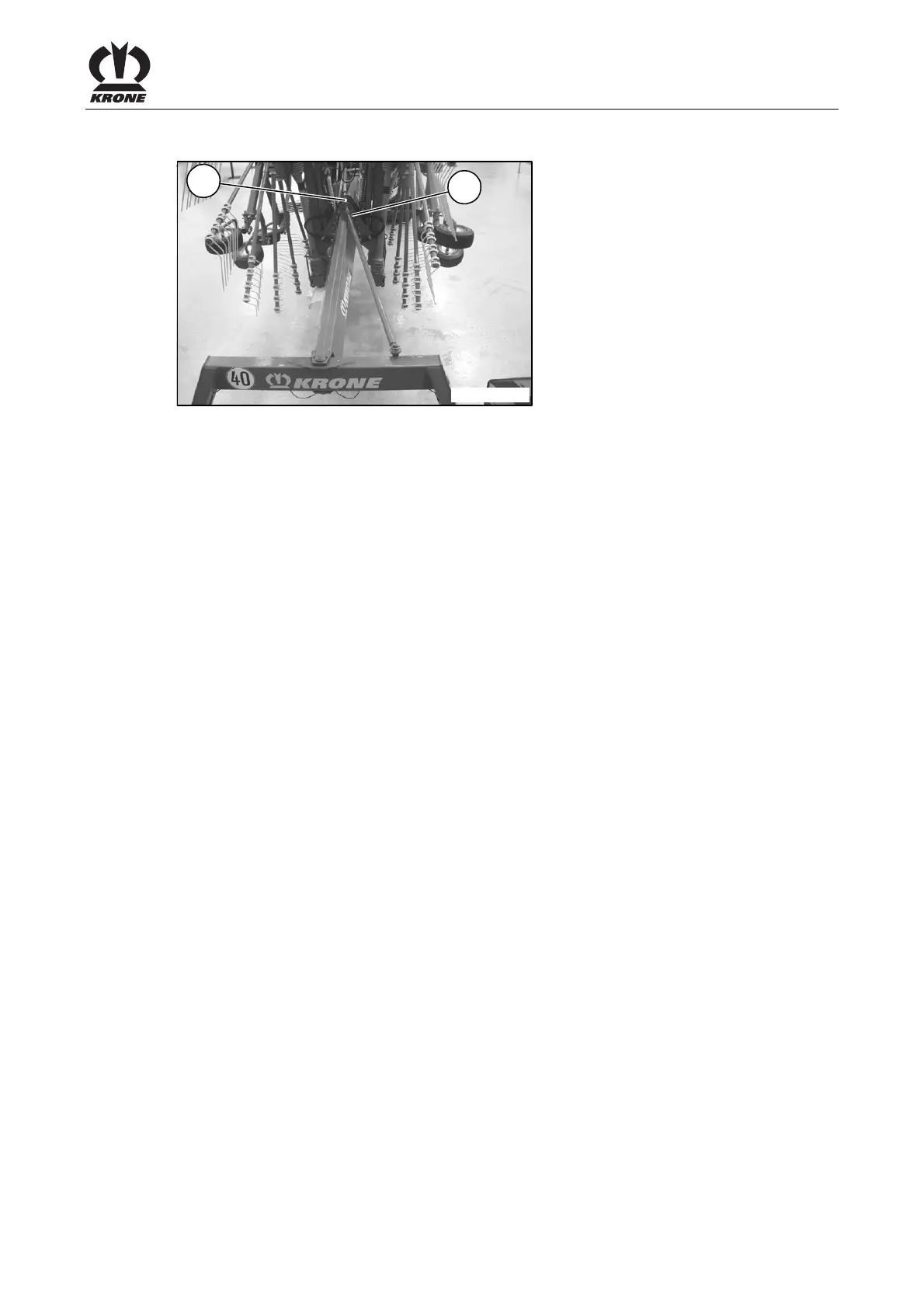

If the swather is not running in the centre behind the tractor on a level street, this can be
controlled by adjusting the transverse suspension arms (1).
• Loosen the counter nut (2).
• Adjusting transverse suspension arm:
Steering rod shorter => directs machine further to the left
Steering rod longer => directs machine further to the right
• Tighten counter nut (2).
