13 Maintenance – lubrication chart
Pos: 42.39.2 /Überschr iften/Überschr iften 2/P-T/Speziel le Sicherheitshin weise @ 0\mod_119666049576 0_78.docx @ 9134 @ @ 1
13.1 Special Safety Instructions
Pos: 42.39.3 /BA/Si cherheit/Gefahrenhin weise/Ladewagen/ Gefahr Wartung allge mein @ 0\mod_1199884069862_ 78.docx @ 36704 @ 1 @ 1
Danger! - When performing repair, maintenance or cleaning work on the machine, or in
the case of technical intervention, drive elements may start moving.
Effect: Danger to life, injuries or damage to the machine.
• Switch off the tractor engine and remove the ignition key
• Secure the machine and tractor against the possibility of rolling back.
• Switch off the PTO and disengage it
• After the repair, maintenance and cleaning work or technical interventions are completed,
mount all protective coverings and safety devices properly again.
• Avoid skin contact with oils, greases, cleaning agents and solvents.
• In the event of injuries or burns due to oils, cleaning agents or solvents, contact a
physician immediately.
• All other safety instructions must also be followed to avoid injuries and accidents.
Pos: 42.39.4 /Überschr iften/Überschr iften 2/F-J/Gelenk welle @ 0\mod_11997818797 94_78.docx @ 34542 @ 2 @ 1
13.2 PTO shaft
Pos: 42.39.5 /BA/W artung/Gelenkwelle sch mieren/Abschmiere n Gelenkwelle Schwader @ 2\ mod_1202798437998_7 8.docx @ 61395 @ @ 1

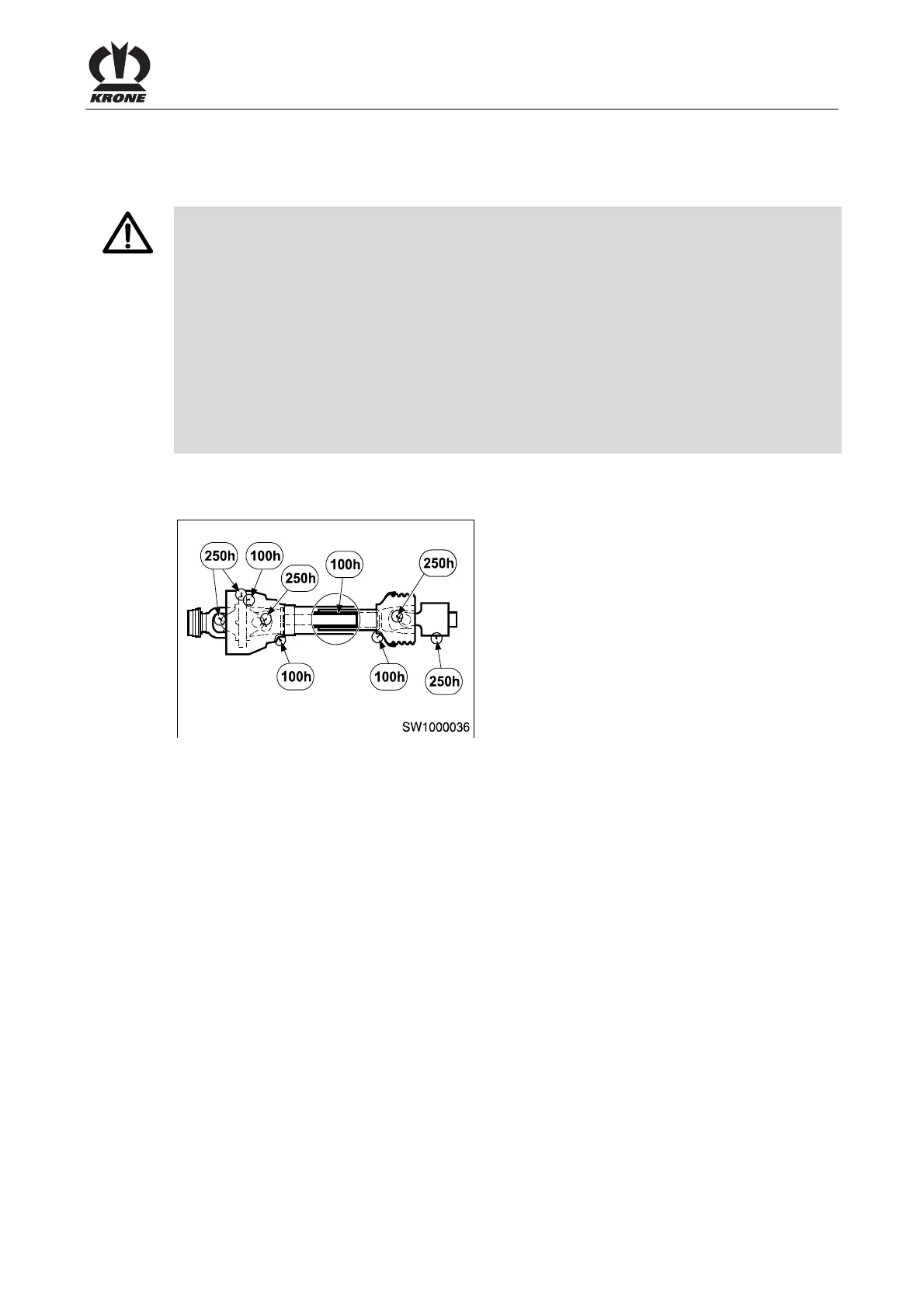

Figure 57
Lubricate the PTO shafts at the intervals indicated in the drawing with a multi-purpose grease.
Follow the operating instructions of the PTO shaft manufacturer.
