KSB Amarex User Manual

9 Related Documents
61 of 82
Amarex
2573.820/02-EN
UG1797914

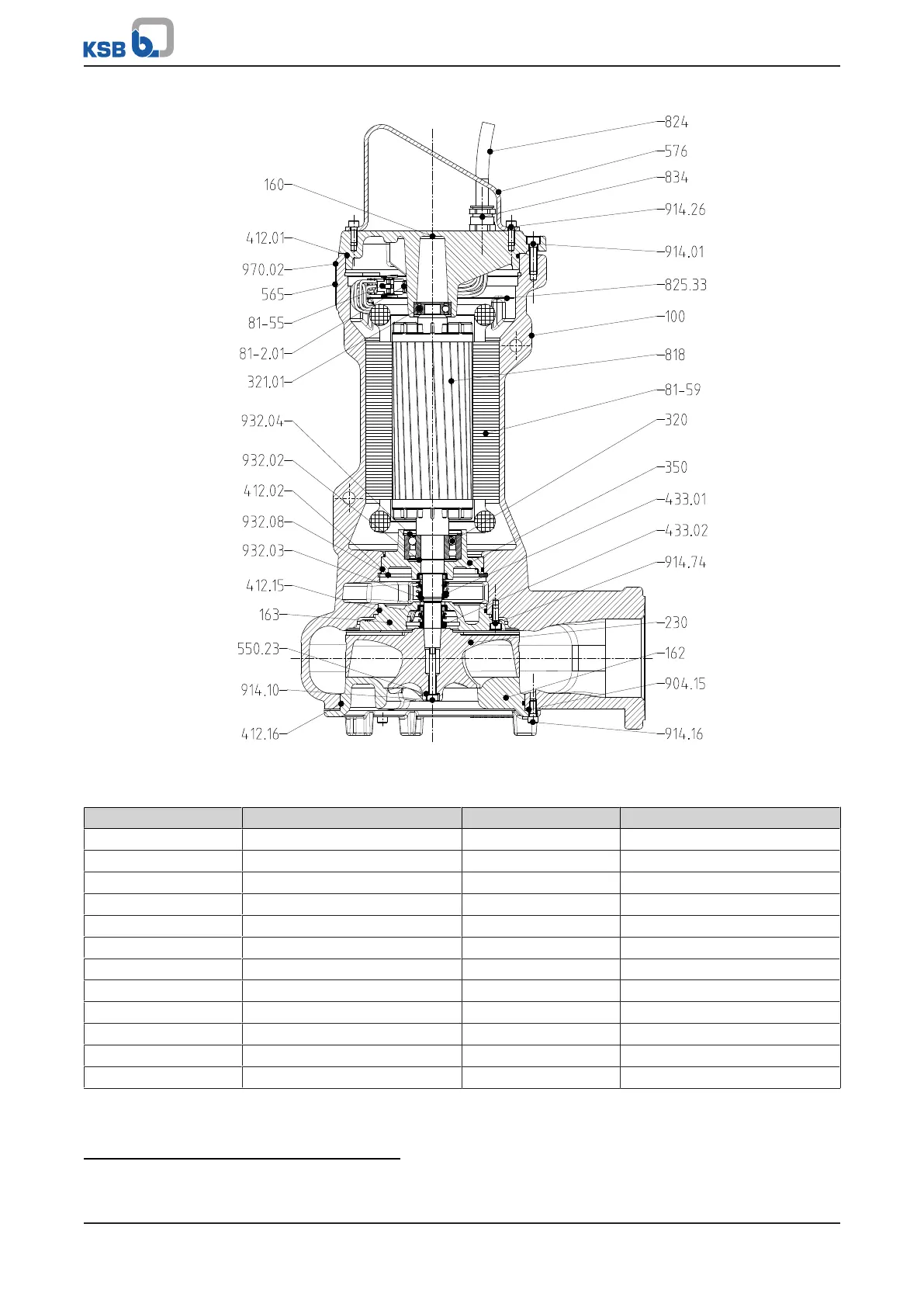

Fig.26: General assembly drawing for versionUS, with impeller type D-max
Table30: List of components
Part No. Description Part No. Description
100 Casing 576 Handle
160 Cover 81-2.01 Plug
162 Suction cover 81-55 Socket
163 Discharge cover 81-59 Stator
230 Impeller 818 Rotor
320
12)
Rolling element bearing 824 Cable
321.01/.02
13)
Radial ball bearing 825.33 Cable guard
350 Bearing housing 834 Cable gland
412.01/.02/.15/.16 O-ring 904.15
12)
Grub screw
433.01/.02 Mechanical seal 914.01/.10/.16/.26/.74 Hexagon socket head cap screw
550.23 Disc 932.02/.03/.04/.08 Circlip
565 Rivet 970.02 Label/plate
12
Only used for version with impeller type D-max
13
Only used for version with impeller type F-max

KSB Amarex Specifications

General

Material	Cast iron, stainless steel
Operating mode	Continuous
Type	Submersible Pump
Application	Sewage
Explosion protection	Available with explosion protection
Frequency	50 Hz, 60 Hz
Impeller Type	Multi-vane
