9.3 Wiring diagrams
9.3.1 Wiring diagram, motor versions US and YS, star configuration for cable gland
M25
(vert / jaune) (green / yellow)
UG1793940

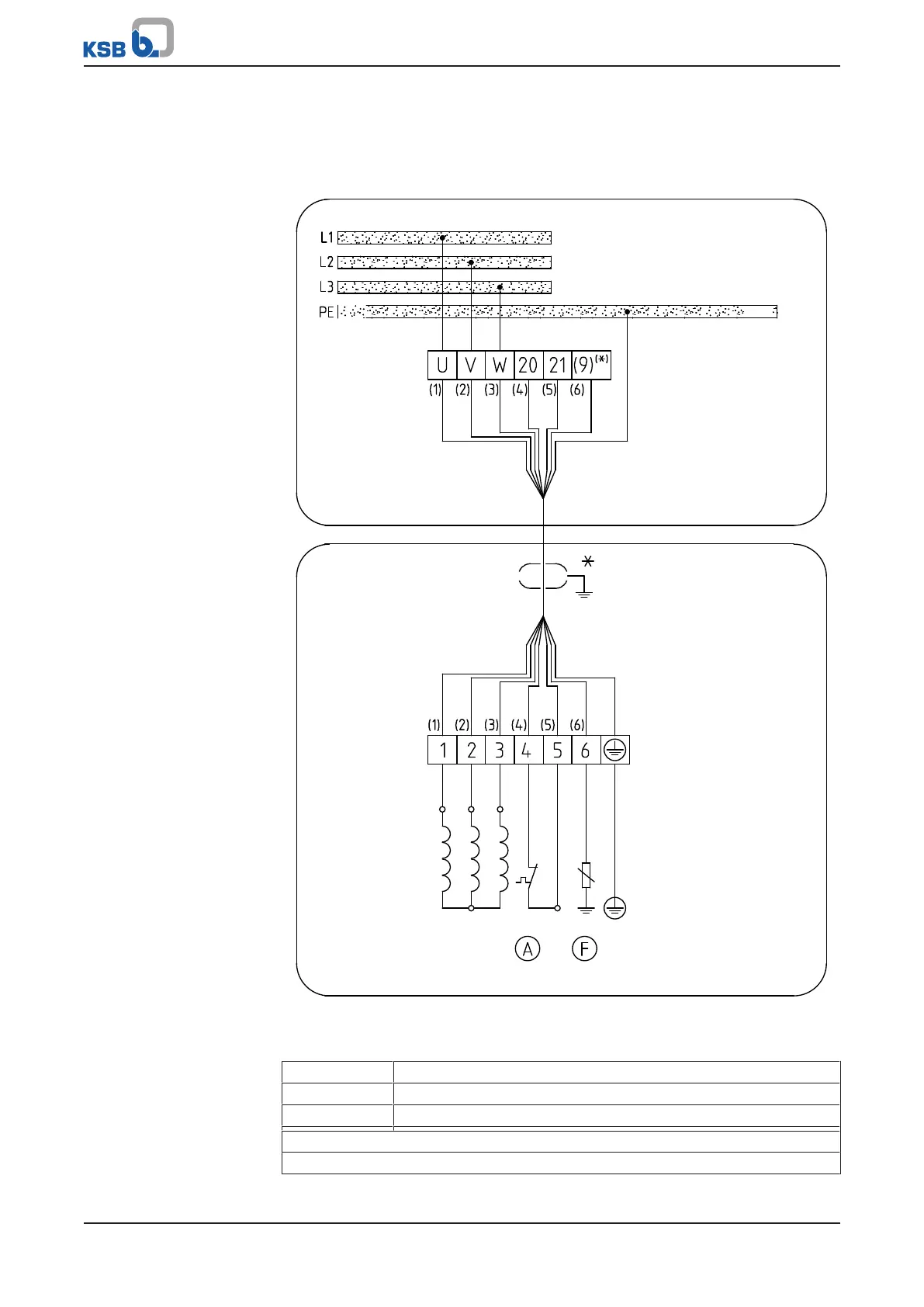

Fig.33: Wiring diagram, motor versions US and YS, star configuration for cable gland
M25
* Shielded cable option
Ⓐ Motor temperature
Ⓕ Monitoring of leakage inside the motor (optional)
Power cable: 4G1.5 + 2×1
(*) Power cable with leakage sensor: 7G1.5

KSB Amarex Specifications

General

Material	Cast iron, stainless steel
Operating mode	Continuous
Type	Submersible Pump
Application	Sewage
Explosion protection	Available with explosion protection
Frequency	50 Hz, 60 Hz
Impeller Type	Multi-vane
