Amarex
2573.820/02-EN
9.3.2 Wiring diagram, motor versions US and YS, star configuration for resin-sealed
cable entry
(vert / jaune) (green / yellow)
UG1795353

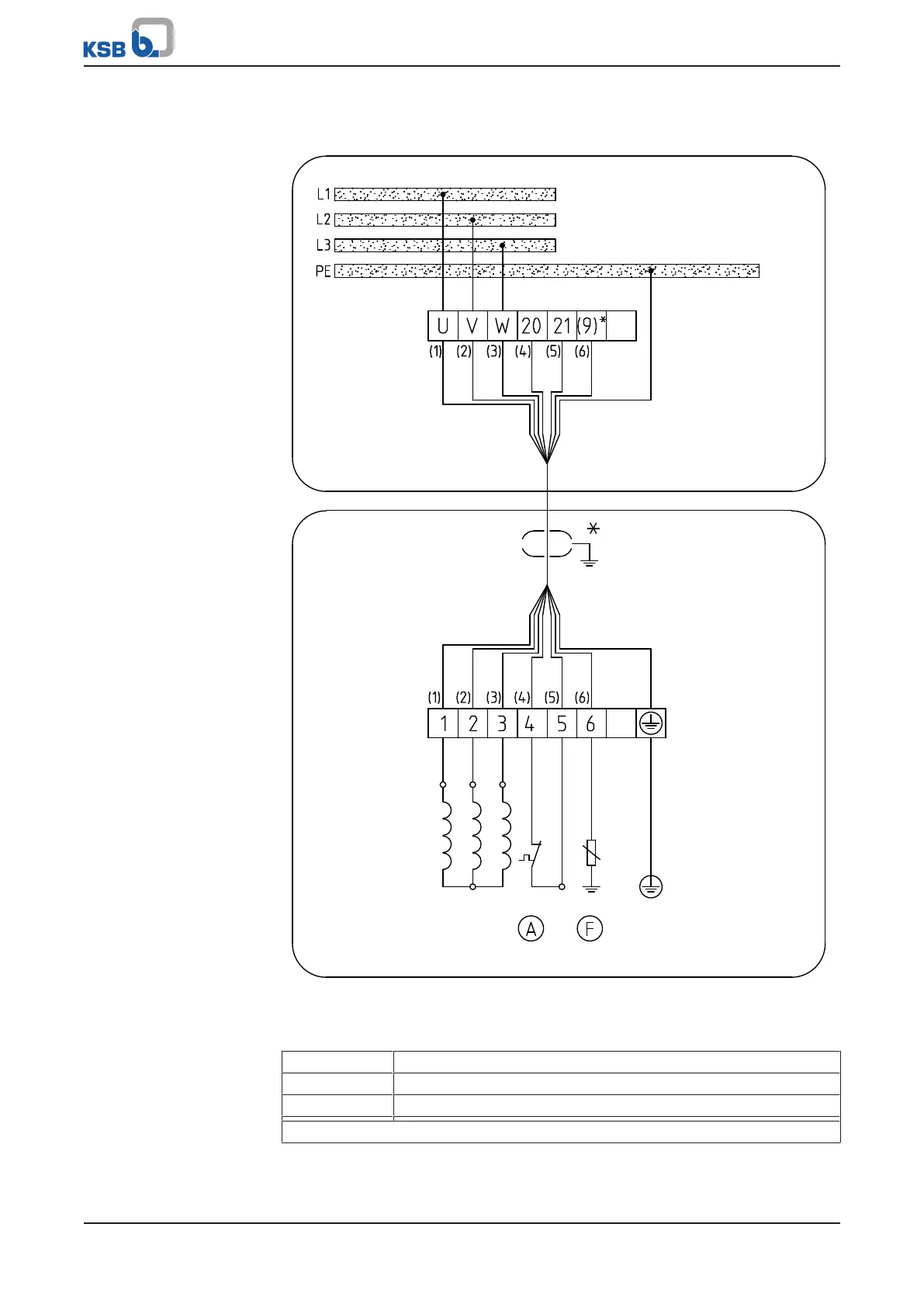

Fig.34: Wiring diagram, motor versions US and YS, star configuration for resin-sealed
cable entry
* Shielded cable option
Ⓐ Motor temperature
Ⓕ Monitoring of leakage inside the motor (optional)
(*) Power cable with leakage sensor: 8G1.5
