KSB Amarex User Manual

9 Related Documents
63 of 82
Amarex
2573.820/02-EN
UG1799982

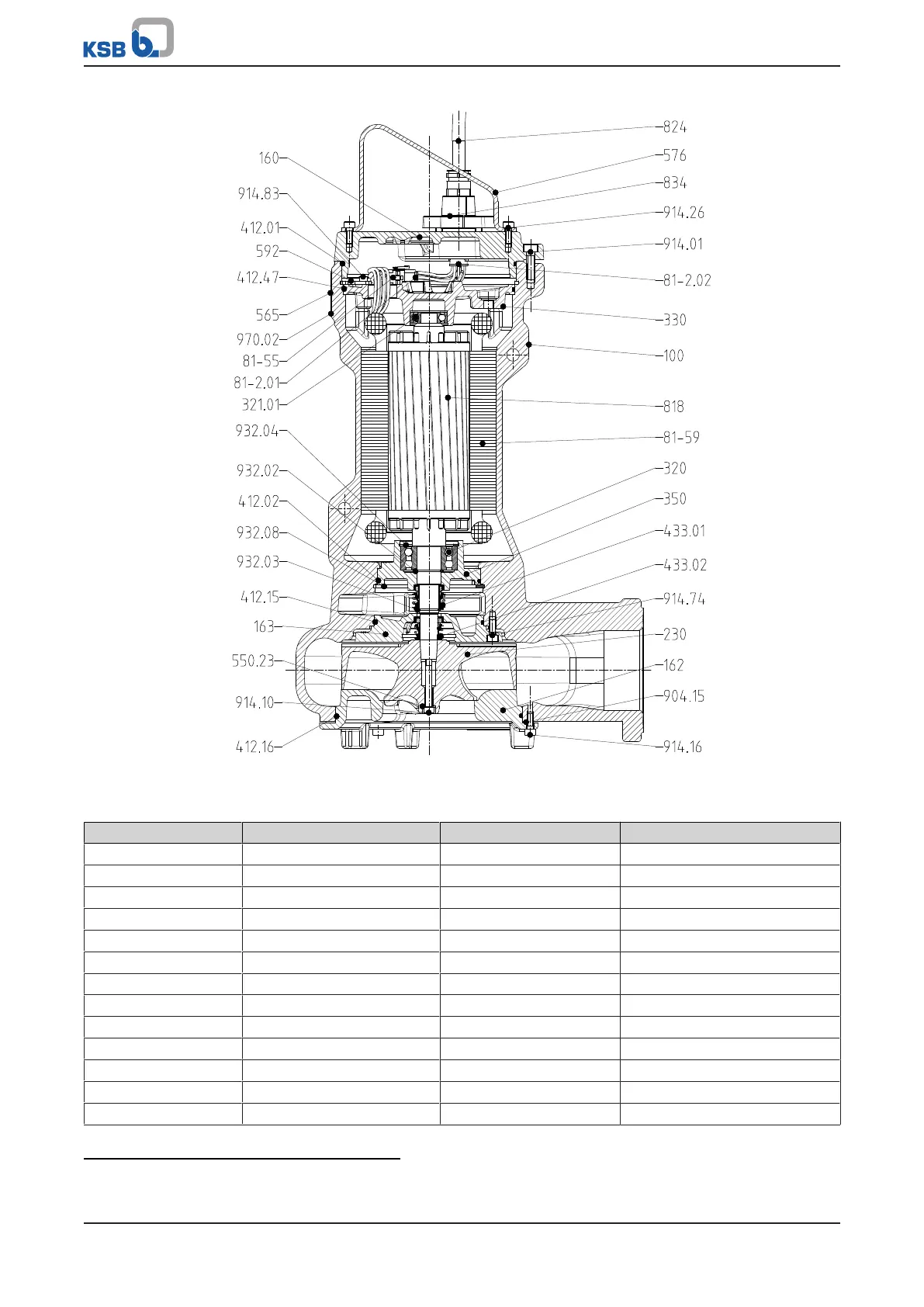

Fig.28: General assembly drawing for version YS, impeller type D-max
Table31: List of components
Part No. Description Part No. Description
100 Casing 576 Handle
160 Cover 592 Plug
162 Suction cover 81-2.01/.02 Plug
163 Discharge cover 81-55 Socket
230 Impeller 81-59 Stator
320
14)
Rolling element bearing 818 Rotor
321.01/.02
15)
Radial ball bearing 824 Cable
330 Bearing bracket 834 Cable gland
350 Bearing housing 904.15
14)
Grub screw
412.01/.02/.15/.16/.47 O-ring 914.01/.10/.16/.26/.74/.83 Hexagon socket head cap screw
433.01/.02 Mechanical seal 932.02/.03/.04/.08 Circlip
550.23 Disc 970.02 Label/plate
565 Rivet
14
Only used for version with impeller type D-max
15
Only used for version with impeller type F-max

KSB Amarex Specifications

General

Material	Cast iron, stainless steel
Operating mode	Continuous
Type	Submersible Pump
Application	Sewage
Explosion protection	Available with explosion protection
Frequency	50 Hz, 60 Hz
Impeller Type	Multi-vane
