Submersible motor pumps (100 mm)
9 Schematic Cross-sectional Drawings

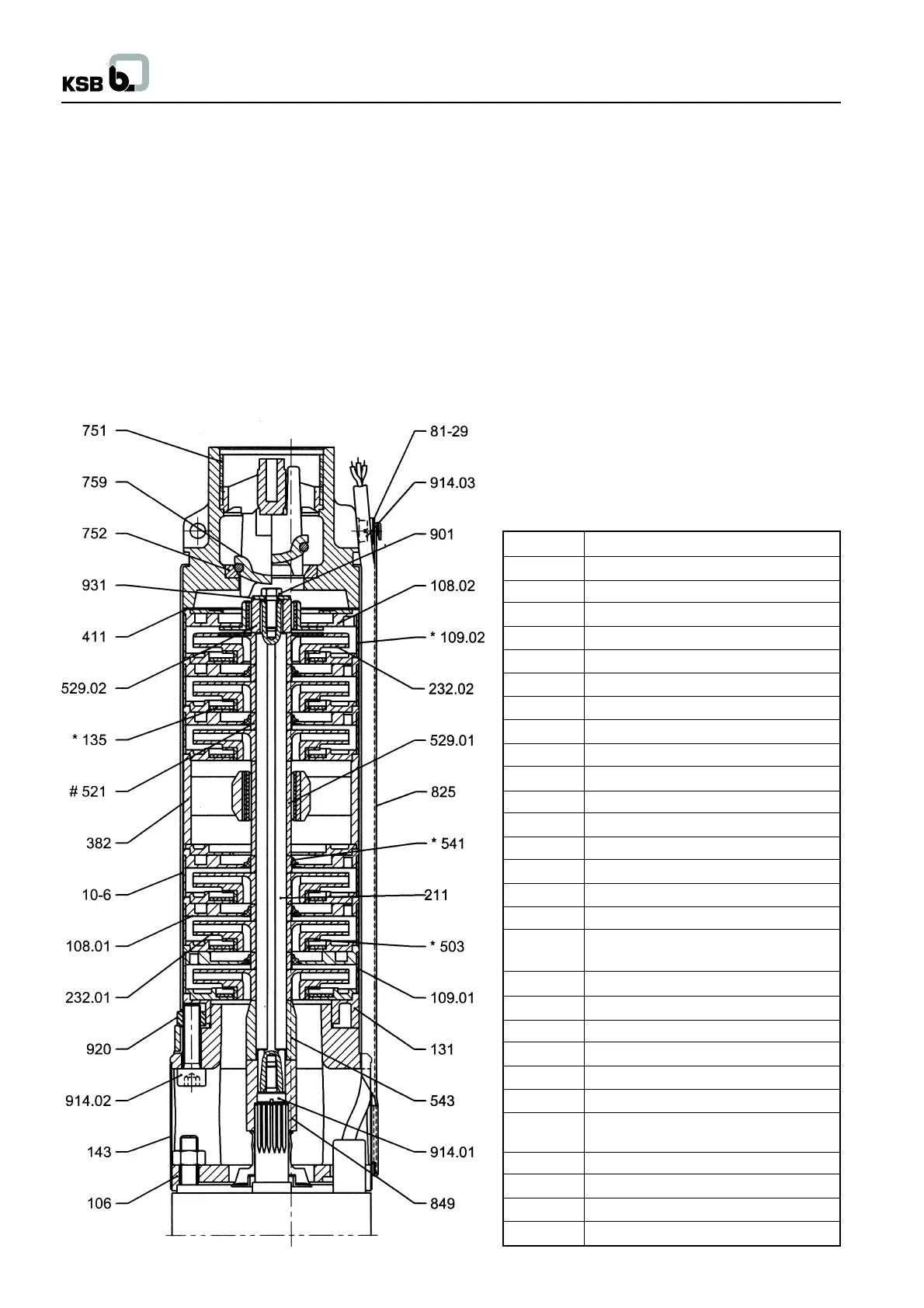

9.1 Pump - CORA 100 (Radial flow)
10
931 Washer
920 Nut Square
914.03 Screw (Chease head)
914.02 Screw (Allen head)
914.01 Screw (round head)
901 Hex. head bolt
751 Valve seat
849 Sleeve coupling
825 Cable protection pipe
759 Valve dish with ‘O’ ring & valve plate
751 Valve body
543 Spacer bush
529.02 Bearing sleeve (last)
529.01 Bearing sleeve (intermediate)
521 Stage sleeve
411 Gasket
382 Bearing body with bearing bush
232.02 Clockwise impeller (last) with wearing
ring (503), thrust bearing plate (384)
211 Pump shaft
143 Suction strainer
131 Inlet ring
109.02* Stage pipe last stage
109.01 Stage pipe
108.02 Stage casing (last stage)
108.01 Stage casing with stage bush (541*),
casing wearing ring (135*)
106 Suction casing
81-29 Cable clamp
10-6 Pump jacket
