Multitec

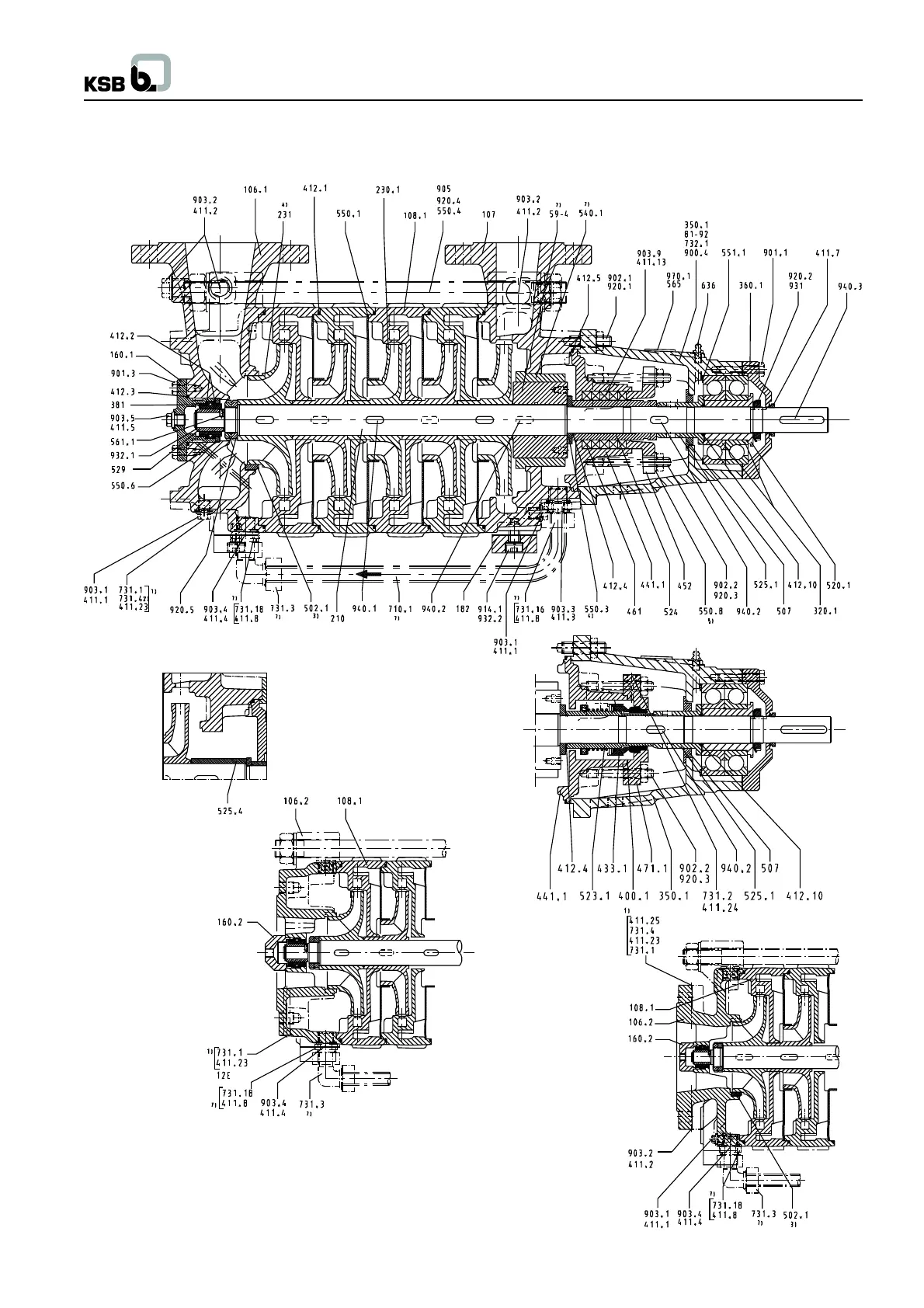

9. General Drawing
Sizes 32 to 100
Radial suction nozzle
Design without balance drum
Axial suction nozzle
up to pump size 50
with mechanical seal
Axial suction nozzle
pump size 65 and above
1) only for version with mechanical seal
2) from pump size 65
3) from pump size 100
4) except for pump size 32
5) only pump size 32 and 50
6) only hydraulics 9.2/10.2/11.1 and 12.1
7) only for variant with balance drum
25
