9 Related Documents
82 of 96
Sewatec
9.3 General assembly drawings/exploded views with list of components
9.3.1 General assembly drawing – Sewatec with bearing brackets S05, S06, S07, S08
163
903.03
411.03
101
502
550.23
903.01
411.01
412.11
902.01
920.01
504.52
903.07
411.07
230
914.10
412.35
903.90
411.90
636.02
412.02
914.18
932.01
500.31
433.02
433.01
320.02
636.03
931.01
920.21
421.02
940.02
210
330.12
500.32
550.23
932.02
550.64
920.68
901.64
412.24
932.03
903.22
411.22
903.46
411.46
330.11
421.01
322.01
183

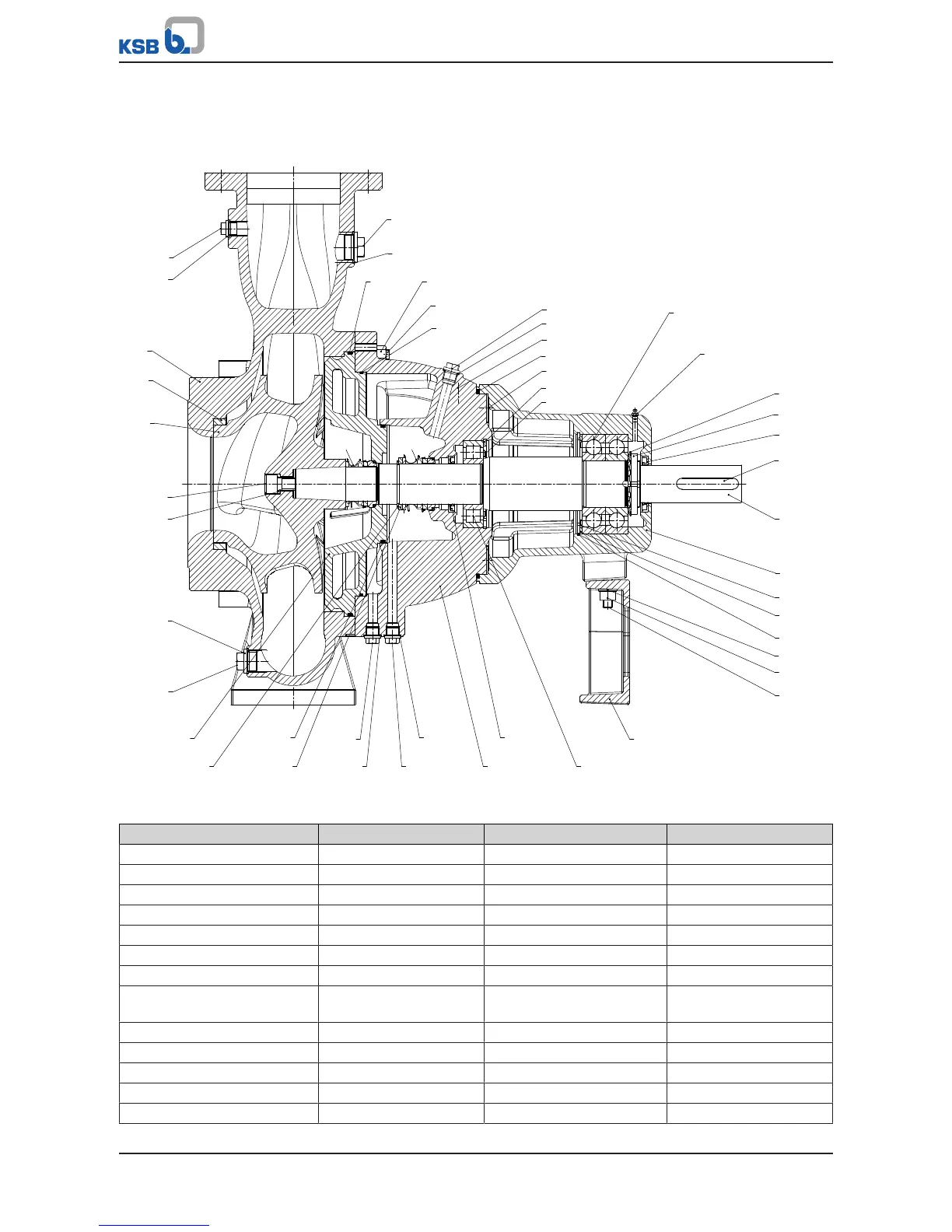

Fig.51: Sewatec with bearing brackets S05 to S08
Table32: List of components
Part No. Description Part No. Description
101 Pump casing 502 Casing wear ring
163 Discharge cover 504.52 Spacer ring
183 Support foot 550.23/.64 Disc
210 Shaft 636.02/.03 Lubricating nipple
230 Impeller 901.64 Hexagon head bolt
320.02 Rolling element bearings 902.01 Stud
322.01 Radial roller bearing 903.01/.03/.07/.22/.46/.90 Screw plug
330.11/.12 Bearing bracket 914.10/.18 Hexagon socket head cap
screw
411.01/.03/.07/.22/.46/.90 Joint ring 920.01/.21/.68 Nut
412.02/.11/.24/.35 O-ring 931.01 Lock washer
421.01/.02 Lip seal 932.01/.02/.03 Circlip
433.01/.02 Mechanical seal 940.02 Key
500.31/.32 Ring
