KSB Sewatec - Exploded View: Mechanical Seal Configuration

9 Related Documents
90 of 96
Sewatec
9.3.5 Exploded view of Sewatec with mechanical seal
411.07 903.07
101
411.03
903.03
903.01
411.01
502
920.17
900.02
550.04
164.02
412.04
920.01
902.01
330.11
421.01
504.02
433.01
412.24
412.11
412.35
433.02
525.04
412.03
906
230
230
230
230
163
932.03
932.01
500.31
322.01
903.90
411.90
636.02
914.18
411.22
903.22
903.46
411.46
940.01
210
940.02
932.02932.02
550.23
500.32
320.02
931.01
421.02
412.02
183
550.64
901.64
920.68
636.03
330.12
920.21

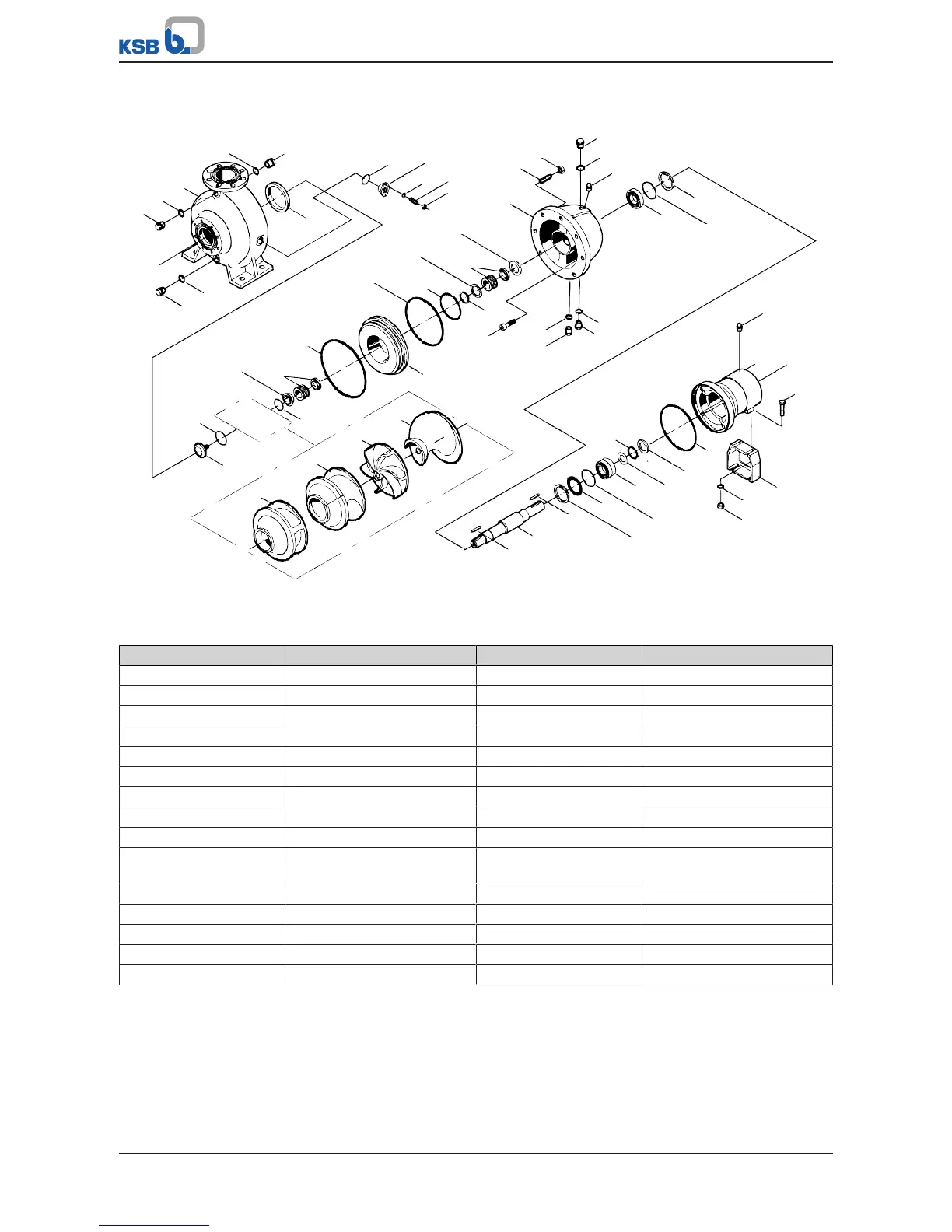

Fig.63: Exploded view of Sewatec with mechanical seal
Table42: List of components
Part No. Description Part No. Description
101 Pump casing 504.02 Spacer ring
163 Discharge cover 525.04 Spacer sleeve
164.02 Inspection cover 550.04/.23/.64 Disc
183 Support foot 636.02/.03 Lubricating nipple
210 Shaft 900.02 Bolt/screw
230 Impeller 901.64 Hexagon head bolt
320.02 Rolling element bearing 902.01 Stud
322.01 Radial roller bearing 903.01/.03/.07/.22/.46/.90 Screw plug
330.11/.12 Bearing bracket 906 Impeller screw
411.01/.03/.07/.22/.46/.90 Joint ring 914.18 Hexagon socket head cap
screw
412.02/.03/.04/.11/.24/.35 O-ring 920.01/.17/.21/.68 Nut
421.01/.02 Lip seal 931.01 Lock washer
433.01/.02 Mechanical seal 932.01/.02/.03 Circlip
500.31/.32 Ring 940.01/.02 Key
502 Casing wear ring
