Sewatec
9.3.6 Exploded view of Sewatec with gland packing
412.35
525.01
412.03
906
230
230
230
163
940.01
210
940.02
932.02
550.23
500.32
320.02
931.01
421.02
412.02
183
550.64
901.64
920.68
636.03
330.12
920.21
411.07
903.07
101
411.03
903.03
903.01
411.01
502
230
411.17
903.17
411.16
903.16
461.01
461.01
412.06
412.11
458.01
454.01
452.01
902.02
920.02
411.22
903.22
914.18
412.04
164.02
550.04
900.02
920.17
902.01
920.01
636.02
932.01
500.31
322.01
330.11

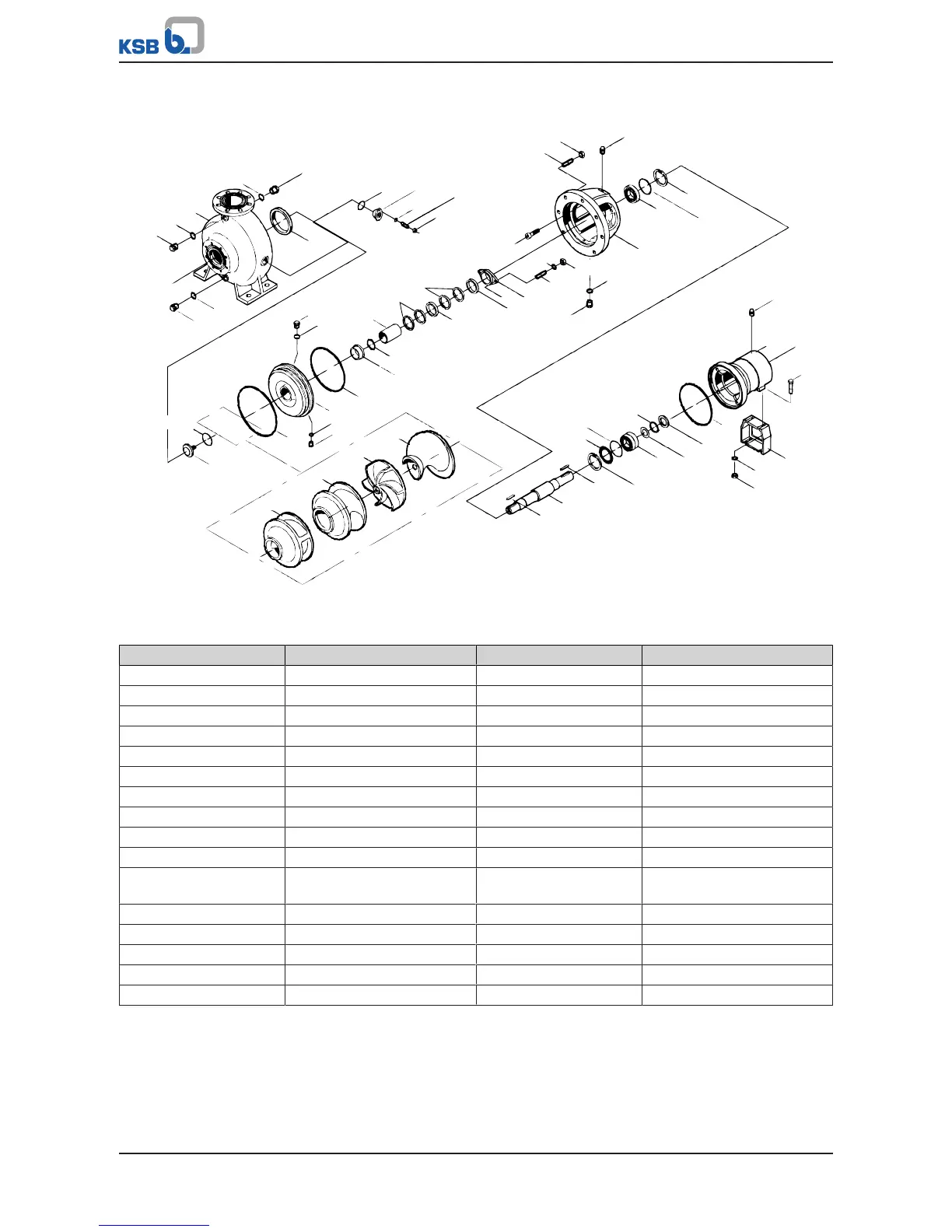

Fig.64: Exploded view of Sewatec with gland packing
Table43: List of components
Part No. Description Part No. Description
101 Pump casing 500.31/.32 Ring
163 Discharge cover 502 Casing wear ring
164.02 Inspection cover 525.01 Spacer sleeve
183 Support foot 550.04/.23/.64 Disc
210 Shaft 636.02/.03 Lubricating nipple
230 Impeller 900.02 Bolt/screw
320.02 Rolling element bearing 901.64 Hexagon head bolt
322.01 Radial roller bearing 902.01/.02 Stud
330.11/.12 Bearing bracket 903.01/.03/.07/.16/.17/.22 Screw plug
411.01/.03/.07/.16/.17/.22 Joint ring 906 Impeller screw
412.02/.03/.04/.06/.11/.35 O-ring 914.18 Hexagon socket head cap
screw
421.02 Lip seal 920.01/.02/.17/.21/.68 Nut
452.01 Gland follower 931.01 Lock washer
454.01 Stuffing box ring 932.01/.02 Circlip
458.01 Lantern ring 940.01/.02 Key
461.01 Gland packing
