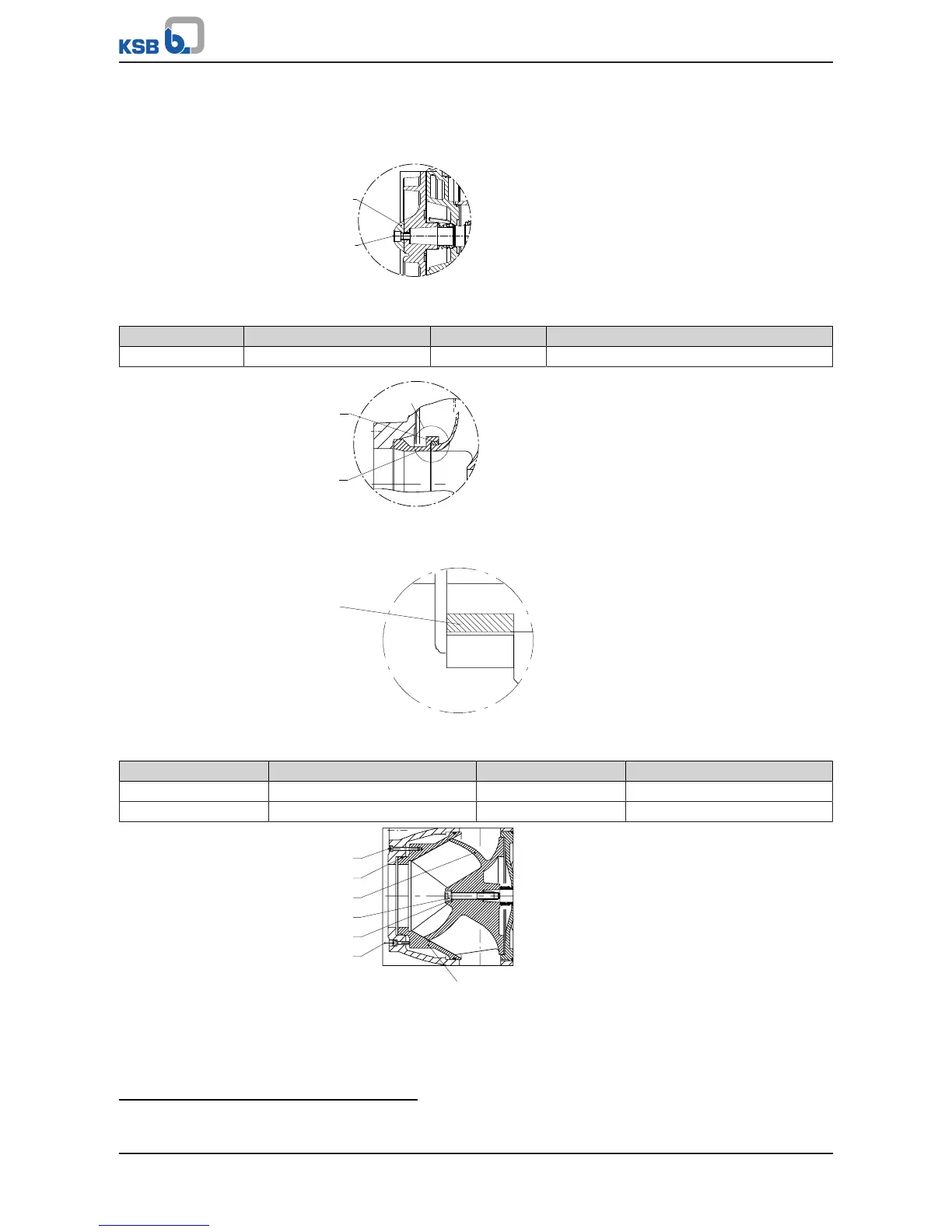

9.3.4 Detailed views
9.3.4.1 Impeller types
260.01
914.10
Fig.55: F impeller
Table35: List of components
Part No. Description Part No. Description
260.01 Impeller hub cap 914.10 Hexagon socket head cap screw
502
13-6
X
Fig.56: K impeller
X
503
Fig.57: Detail X: impeller wear ring of K impeller
Table36: List of components
Part No. Description Part No. Description
13-6
14)
Casing insert 502
15)
Casing wear ring
503 Impeller wear ring
914.12
412.34
230
914.10
550.23
914.24
135
Fig.58: D impeller
14) Only for Sewatec 100-401 and 200-400
15) Not for Sewatec 100-401
