Unpacking the pump set/pump/motor
WARNING
Unsecured cable drum
Risk of personal injury!
▷ Always secure the cable drum against tipping over.
▷ Always secure the cable drum against rolling off.
WARNING
Laying cables at temperatures below zero degrees
Damage to the cables!
▷ Observe the minimum permissible temperature at the cable surface of -25 °C for
moving cables.
▷ Observe the minimum permissible temperature at the cable surface of -40 °C for
stationary cables.
CAUTION
Excessive bending stress on the pump set
Damage to the pump set!
▷ Choose sling points which prevent excessive bending stress on the pump set.
Use suitable lifting equipment for lifting the pump set out of the packaging and
transporting it(⇨ Section 4.7 Page 19
) Use suitable lifting tackle for lifting the pump
set out of the packaging and transporting it, e. g. lifting straps. Sling points: in the
middle of the motor and at the upper end of the pump.

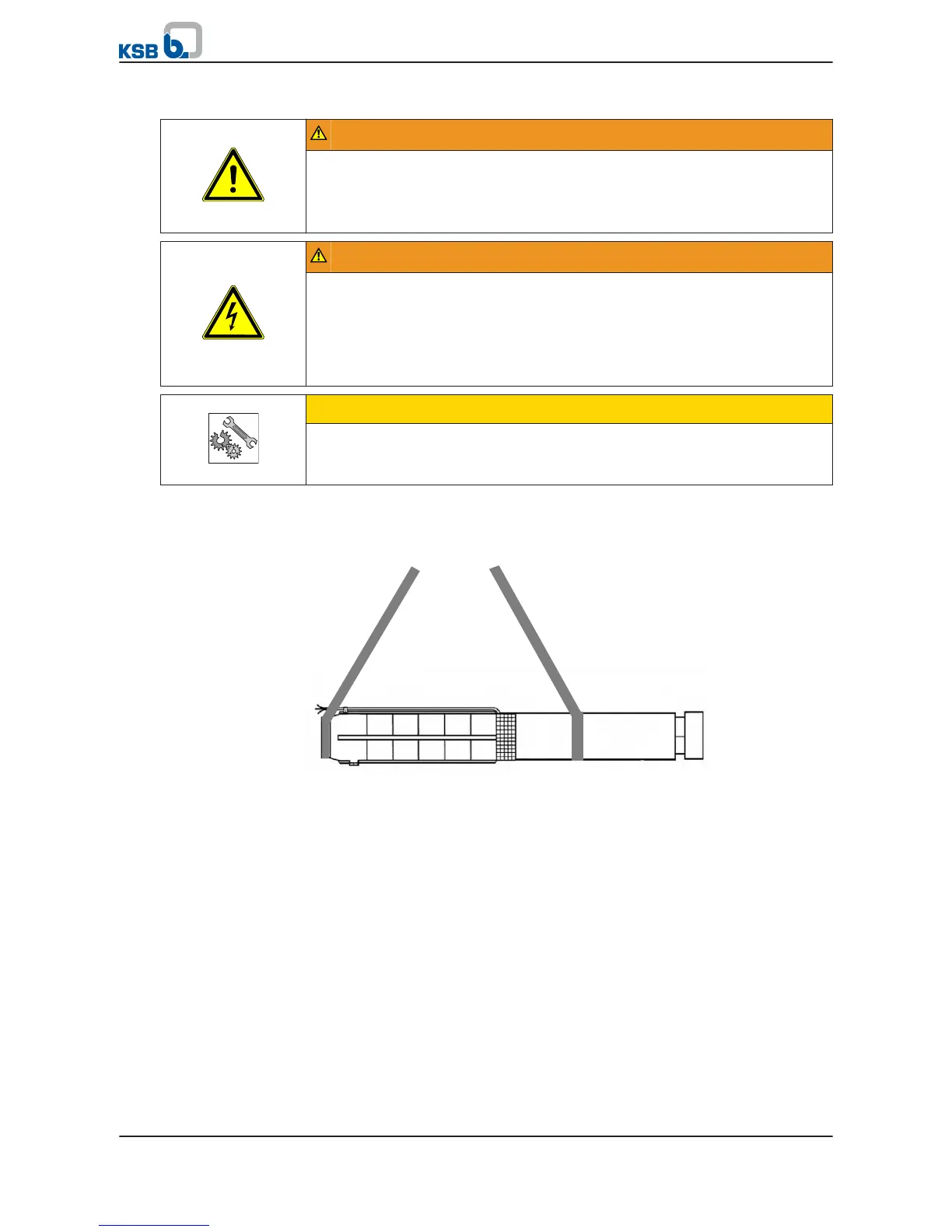

Fig. 1: Transporting the pump set by crane
✓ Suitable lifting equipment and lifting tackle are available.
✓ The surface on which the pump set is to be positioned is solid and level.
✓ Securing means, e.g. timber wedges are on hand.
1.
Gently set down the transport box.
2. Open the transport box.
3. Take out the power cable and put it down.
4. Position the lifting tackle allowing for balanced lifting. Normally, the centre of
gravity of the pump set will be in the motor area. Watch any add-on parts, such
as piping and cables!
5. Use the lifting equipment to lift the pump set out and position it on a solid and
level surface.
6. Use appropriate means to secure the pump set against rolling off.
Unpacking
3 Transport/Temporary Storage/Disposal
12 of 64
