9.3 Mating dimensions for motor T
B
A

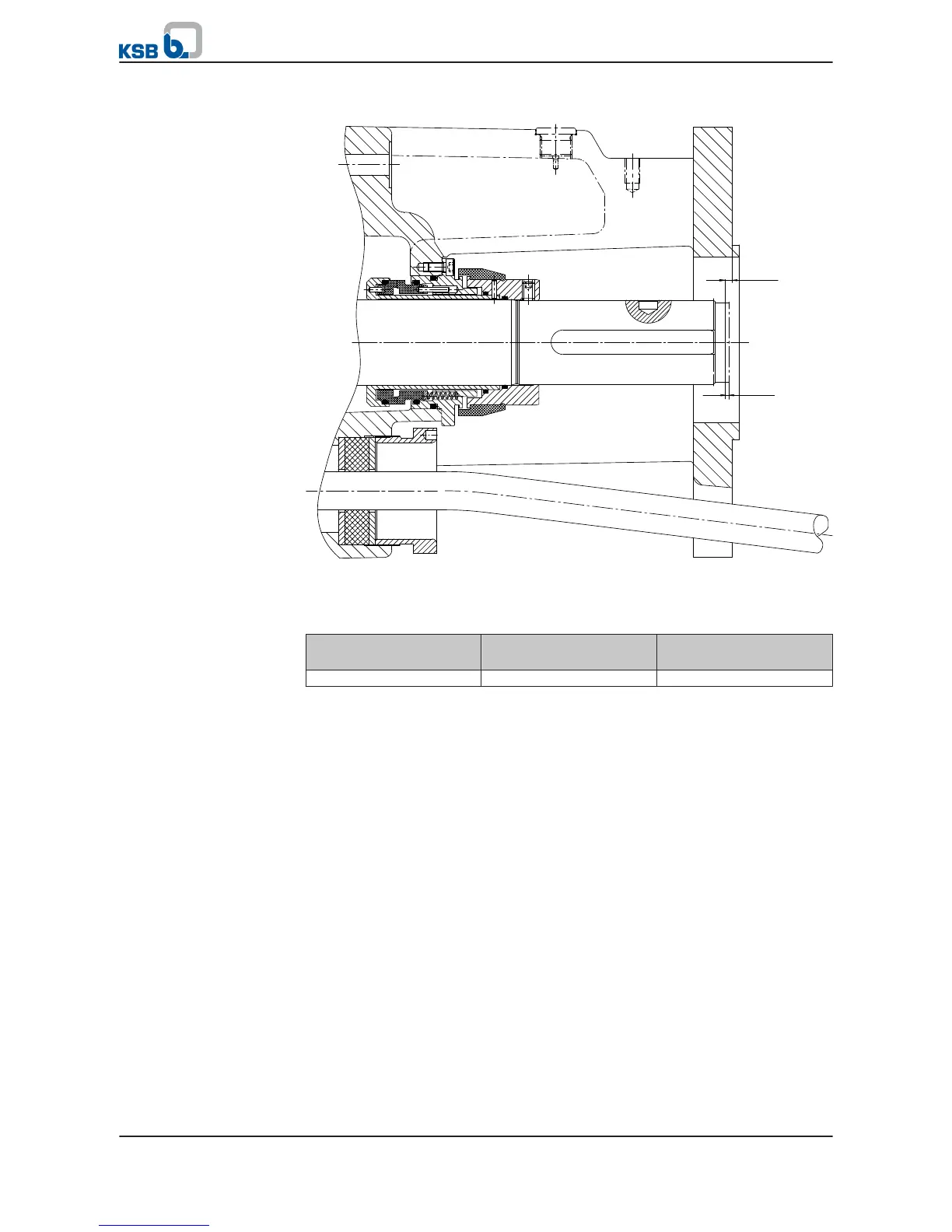

Fig. 17: Mating dimensions for motor T
Observe the following dimensions:
Table 26: Mating dimensions
Motor type series Axial clearance
A [mm]
Adjusting dimension
B [mm]
TCD 1.2 to 1.5 4.5 ± 0.1
