KSB UPA - Mating Dimensions for Motors V, X, Z, E

9.2 Mating dimensions for motors V, X, Z, E
A
B

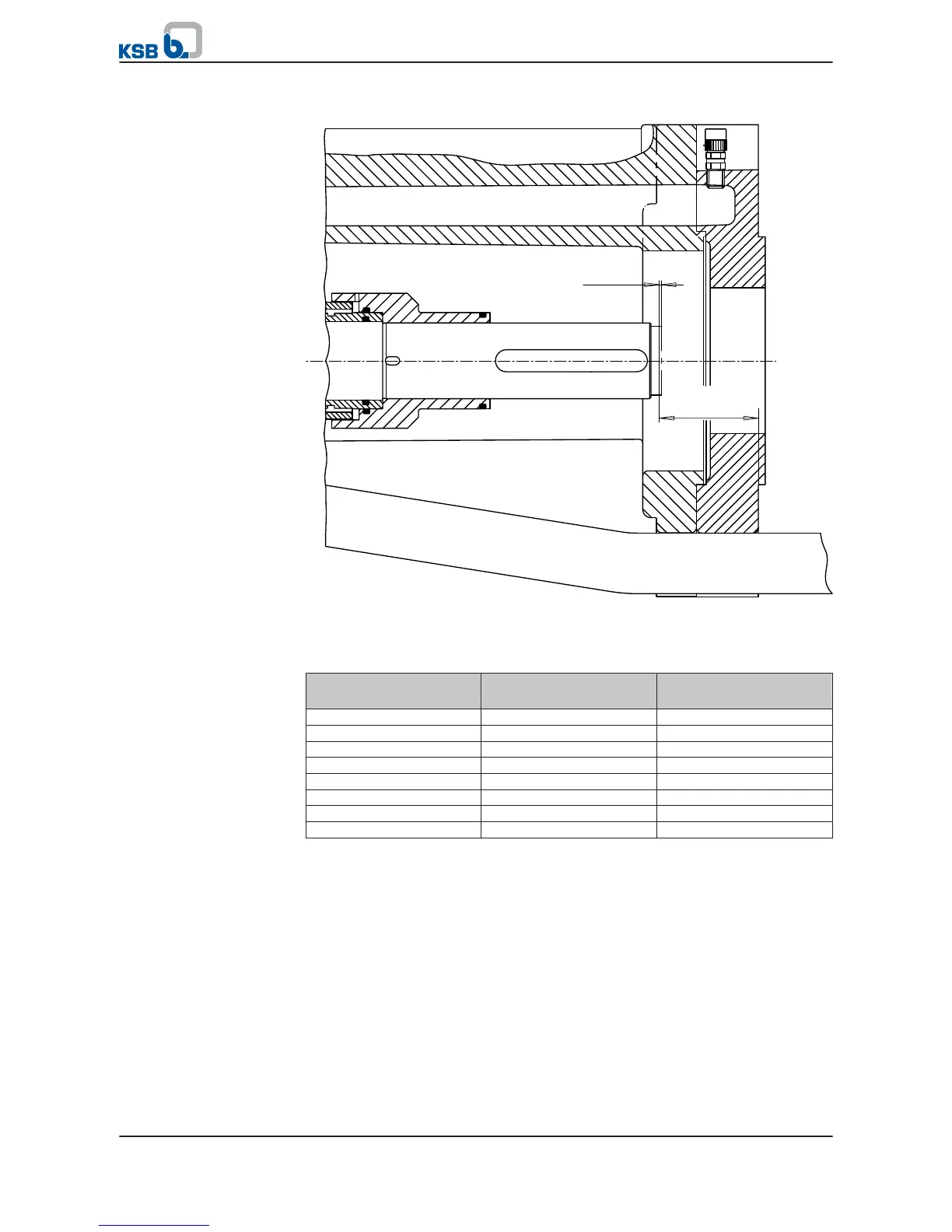

Fig. 16: Mating dimensions for motors V, X, Z, E
Observe the following dimensions:
Table 25: Mating dimensions
Motor type series Axial clearance
A [mm]
Adjusting dimension
B [mm]
VBD ... 1.2 to 1.5 72 ± 0.1
VMD ... 1.2 to 1.5 72 ± 0.1
XBD ... 1.2 to 1.5 114 ± 0.1
XMD ... 1.2 to 1.5 114 ± 0.1
ZBD ... 1.2 to 1.5 114 ± 0.1
ZMD ... 1.2 to 1.5 114 ± 0.1
EMD ... 1.2 to 1.5 114 ± 0.1
EBD ... 1.2 to 1.5 114 ± 0.1
