4.3 Name plate
Serial No. 9971276748-000100
1
2
3
4
5
6
13
14
15
Pump RE 555/3
Qmin
Qmax
Q
Motor
340 KW
3300 V
Temp.
Min. flow velocity past the motor = 0.2 m/s
EN 60034-1
IP 68
Mat. No.: 01 000 854 ZN 3823 - D 88
300 L/MIN
1170 L/MIN
879.6 L/MIN
Hmax
Hmin
H
108 M
69 M
92.7 M
3~ XMD HQ 37-335
50 Hz
86 A 0.77 COS
20 °C max. 1467 rpm
7
8
11
12
9
10
16
17
18
19

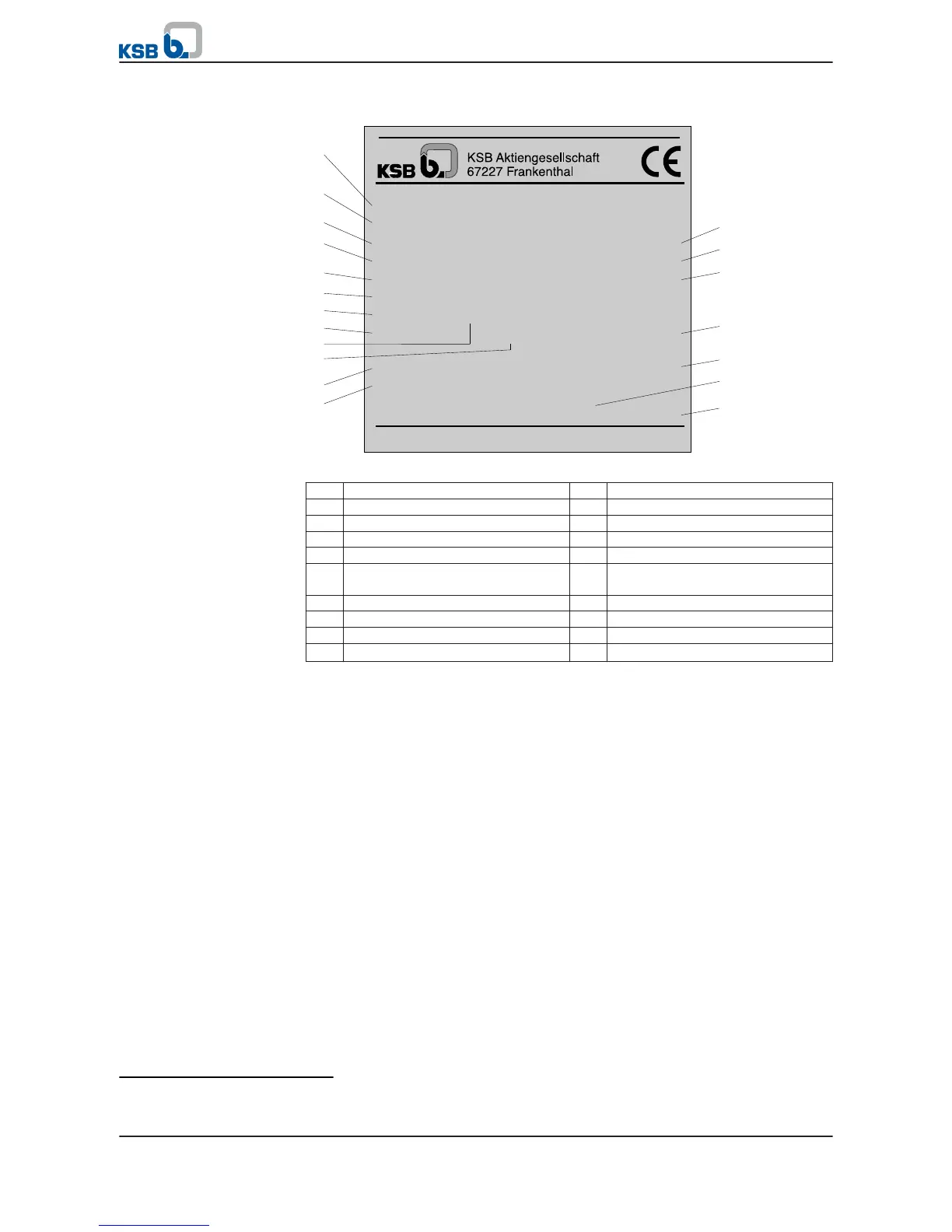

Fig. 2: Name plate (example)
1 Order number 2 Pump designation
3 Minimum flow rate 4 Maximum flow rate
5 Flow rate at duty point 6 Motor designation
7 Rated power 8 Voltage
9 Frequency 10 Amperage
11 Maximum fluid temperature 12 Minimum available flow along the
motor
13 Maximum head 14 Minimum head
15 Head at duty point 16 Power factor
17 Speed 18 VDE Standard
19 Motor enclosure
4.4 Design details
Pump design
▪ Centrifugal pump
▪ Single-stage or multi-stage
▪ Radial or mixed flow versions
▪ Single-entry or double-entry
▪ Shroud or ring-section design
▪ With non-return valve or connection branch
▪ Pump connection with threaded or flanged end
▪ Rigid connection between pump and motor
Motor design
▪ Submersible motor in squirrel-cage design
▪
Motor shaft
4)
protected by sealed sleeve coupling
▪ Rubber expansion diaphragm for pressure equalisation
▪ Thrust bearing with tilting pads to absorb the pump's hydraulic thrust
▪ Single mechanical seal
4)
For motor sizes V, X, Z and E
