KTM 2016 690 DUKE R User Manual

13 BRAKE SYSTEM 104
Preparatory work
– Check the front brake linings. ( p. 105)
V00059-10
Main work
(Duke)

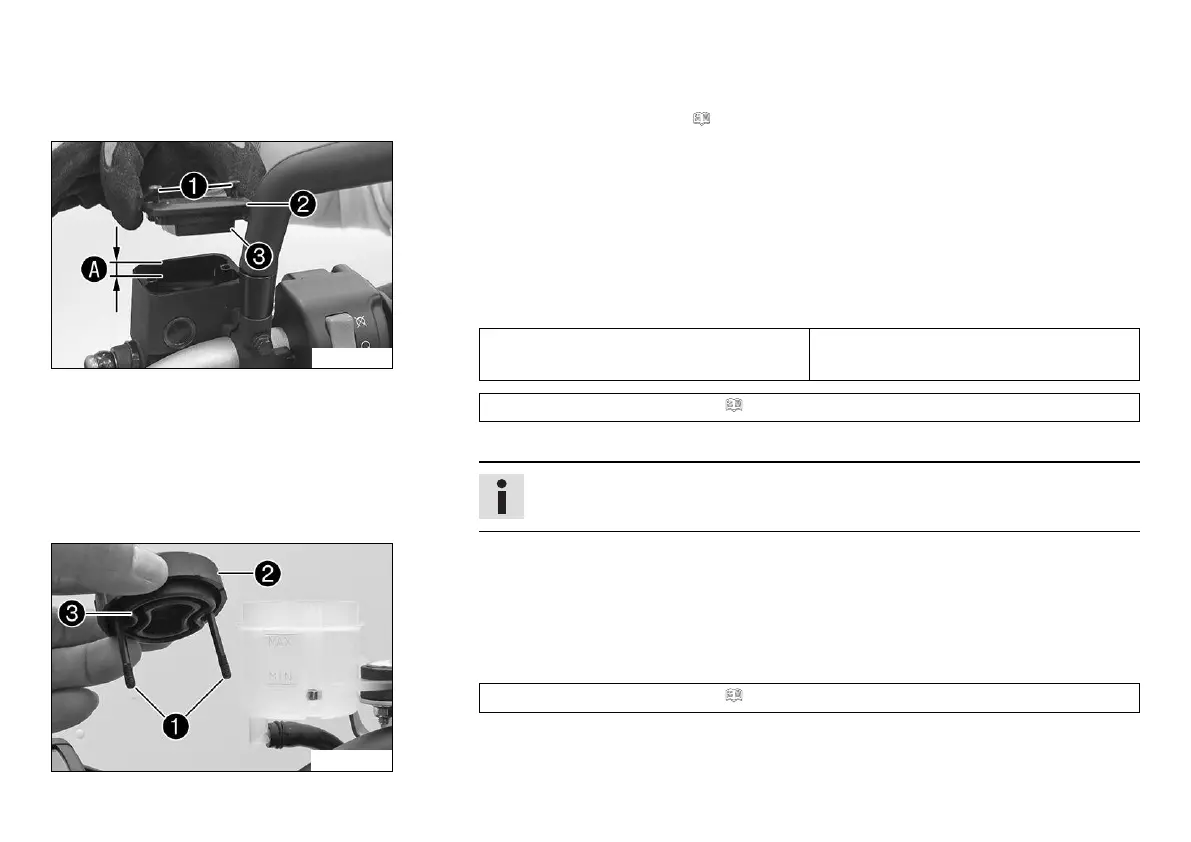

– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws

.
–
Remove cover

with membrane

.
–
Add brake fluid to level

.
Guideline
Level

(brake fluid level below reser-
voir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 190)
– Position the cover with the membrane. Mount and tighten the screws.
Info
Clean up overflowed or spilled brake fluid immediately with water.
602576-10
(Duke R)
– Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
–
Remove screws

.
–
Remove cover

with membrane

.
– Add brake fluid to the MAX level.
Brake fluid DOT 4 / DOT 5.1 ( p. 190)
– Position the cover with the membrane. Mount and tighten the screws.
