KTM 2016 690 DUKE R - Page 142

15 ELECTRICAL SYSTEM 140
K00439-11
(Duke)

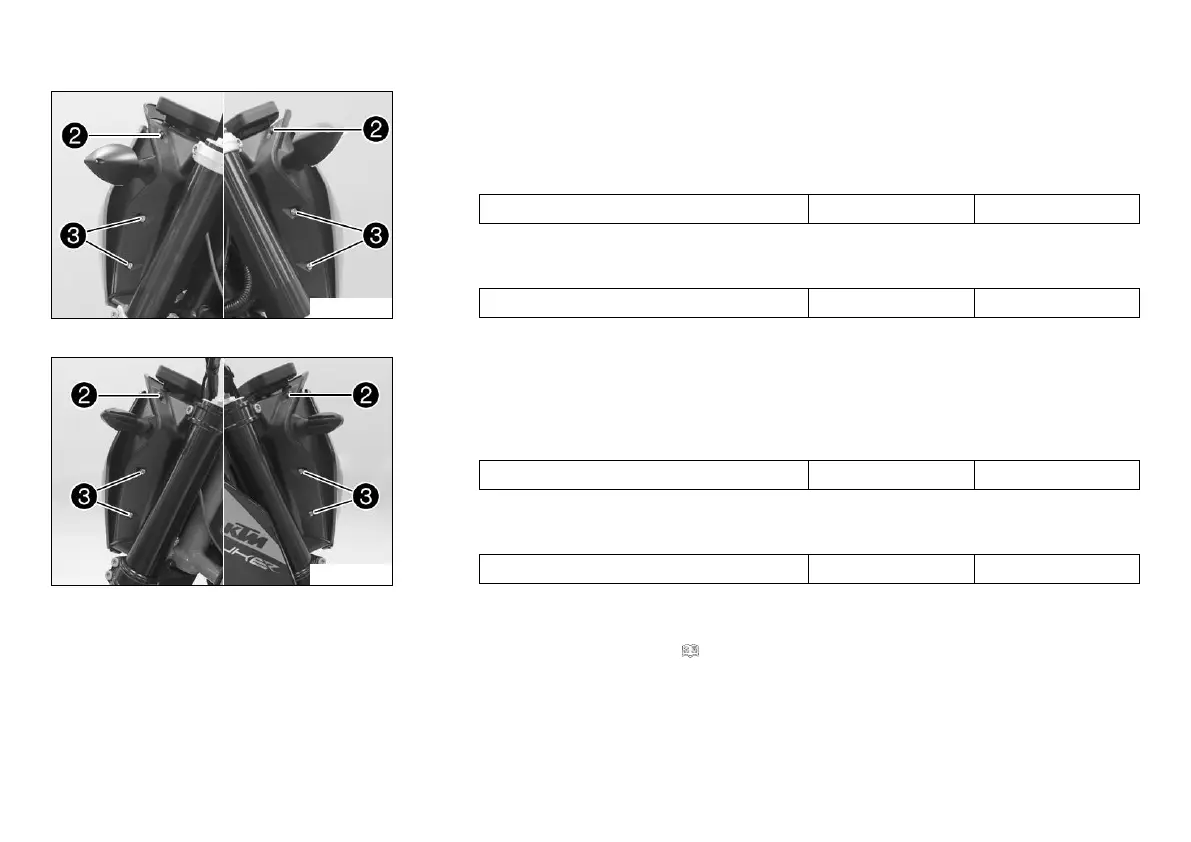

– Position the headlight mask.
–
Mount and tighten screws

.
Guideline
Screw, headlight EJOT 2 Nm (1.5 lbf ft)
–
Mount and tighten screws

.
Guideline
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
– Check that the lighting is functioning properly.
K00440-11
(Duke R)
– Position the headlight mask.
–
Mount and tighten screws

.
Guideline
Screw, headlight EJOT 2 Nm (1.5 lbf ft)
–
Mount and tighten screws

.
Guideline
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
– Check that the lighting is functioning properly.
Finishing work
– Check the headlight setting. ( p. 146)
