15
ELECTRIC
AL
SYSTEM
143
K00442-10
–
Detach
retaining
clamp
.
–

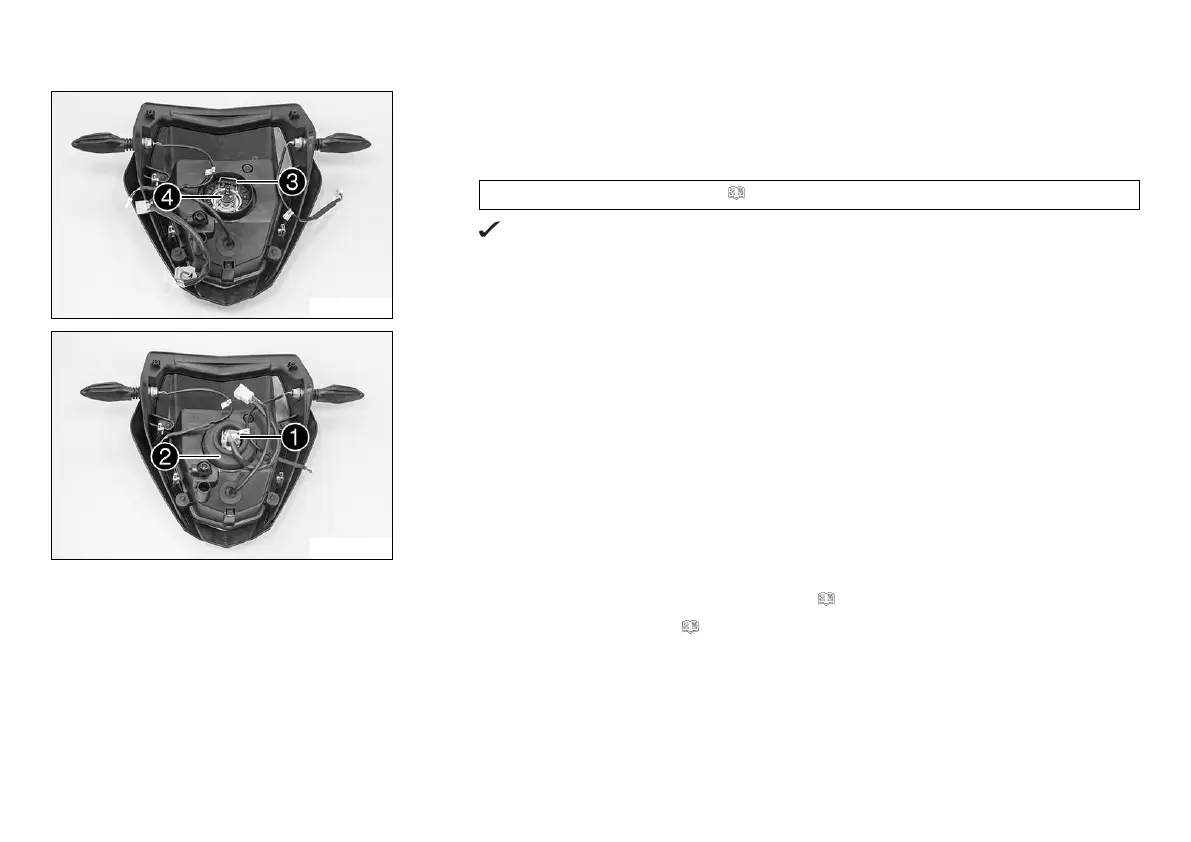

Remove
bulb
.
–
Position
the
new
bulb
in
the
headlight
housing.
Headlight
(H4
/
socket
P43t)
(
p.
182)
Tabs
engage
in
the
recesses.
–
Attach
retaining
clamp
.
K00441-10
–
Mount
protection
cap
.
–
Plug
in
connector
.
Finishing
work
–
Install
the
headlight
mask
with
the
headlight.
(
p.
139)
–
Check
the
headlight
setting.
(
p.
146)
144
146
