17 TUNING THE ENGINE 156

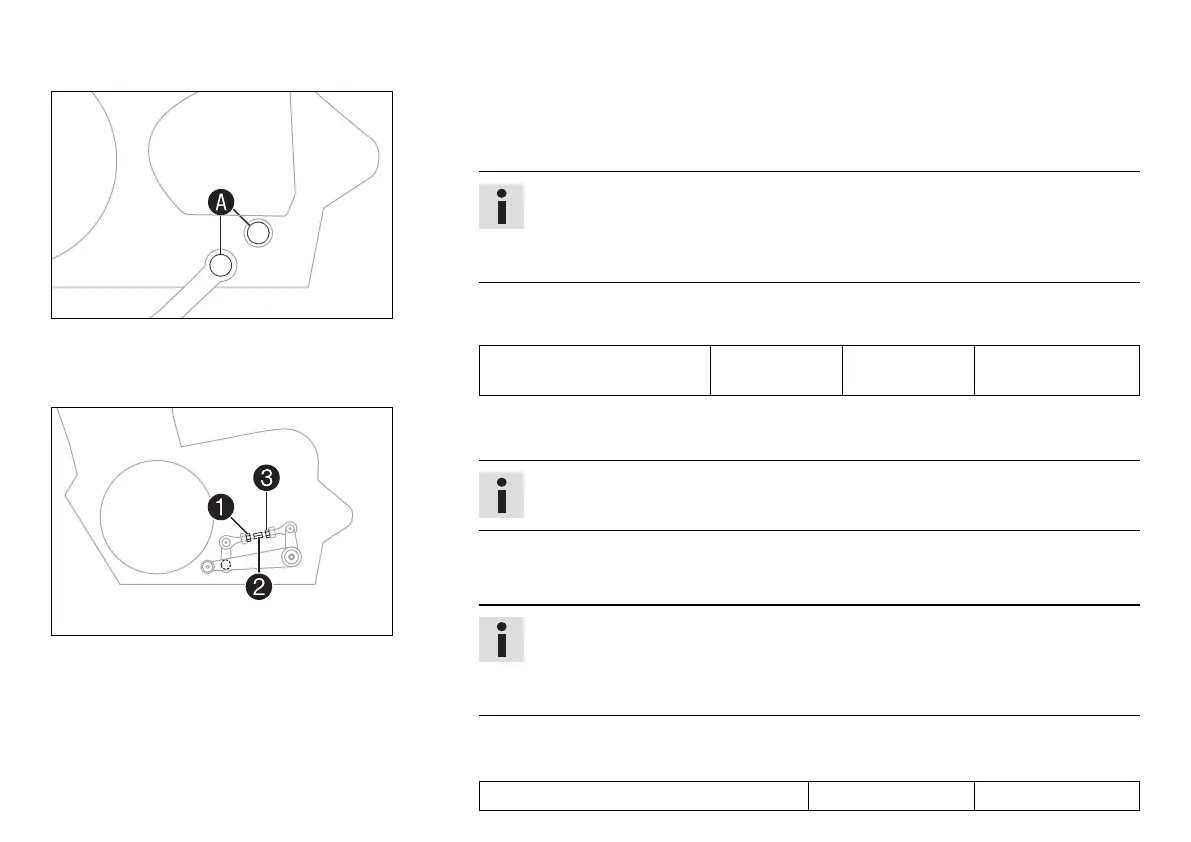

H01085-10
–
Clean gear teeth

of the shift lever and shift shaft.
– Mount the shift lever on the shift shaft in the required position and engage the gear-
ing.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any other vehicle compo-
nents during the shift procedure.
– Mount and tighten screw with the washers.
Guideline
Screw, shift lever M6 14 Nm
(10.3 lbf ft)
Loctite
®
243™
H01082-10
(Duke R)
–
Loosen nut

, holding threaded rod

.
Info
Nut

has a left-handed thread.
–
Loosen nut

, holding threaded rod

.
–
Turn threaded rod

to adjust the shift lever.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any other vehicle compo-
nents during the shift procedure.
–
Tighten nut

, holding threaded rod

.
Guideline
Shift rods, nut M6 6 Nm (4.4 lbf ft)
