12 SERVICE WORK ON THE CHASSIS 92
K00435-11
Main work
–
Loosen nut
.
–
Loosen nuts
.
–

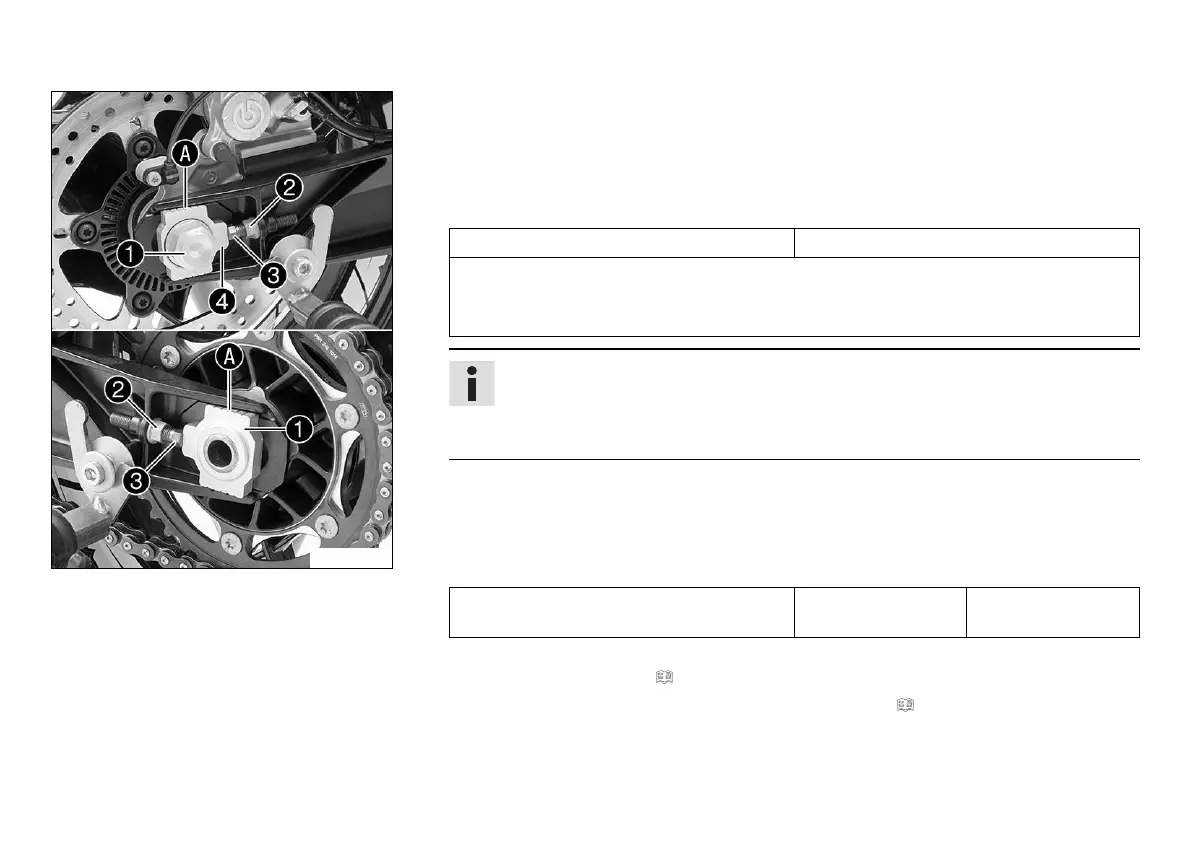

Adjust the chain tension by turning adjusting screws
left and right.
Guideline
Chain tension 5 mm (0.2 in)
Turn the adjusting screws
on the left and right so that the markings on the
left and right chain adjusters
are in the same position relative to the reference
marks
. The rear wheel is then correctly aligned.
Info
The upper part of the chain must be taut.
Chain wear is not always even. Repeat this measurement at different chain posi-
tions.
–
Tighten nuts
.
–
Make sure that chain adjusters
are fitted correctly on adjusting screws
.
–
Tighten nut
.
Guideline
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
Finishing work
– Check the chain tension. ( p. 89)
– Remove the rear of the motorcycle from the lifting gear. ( p. 83)
