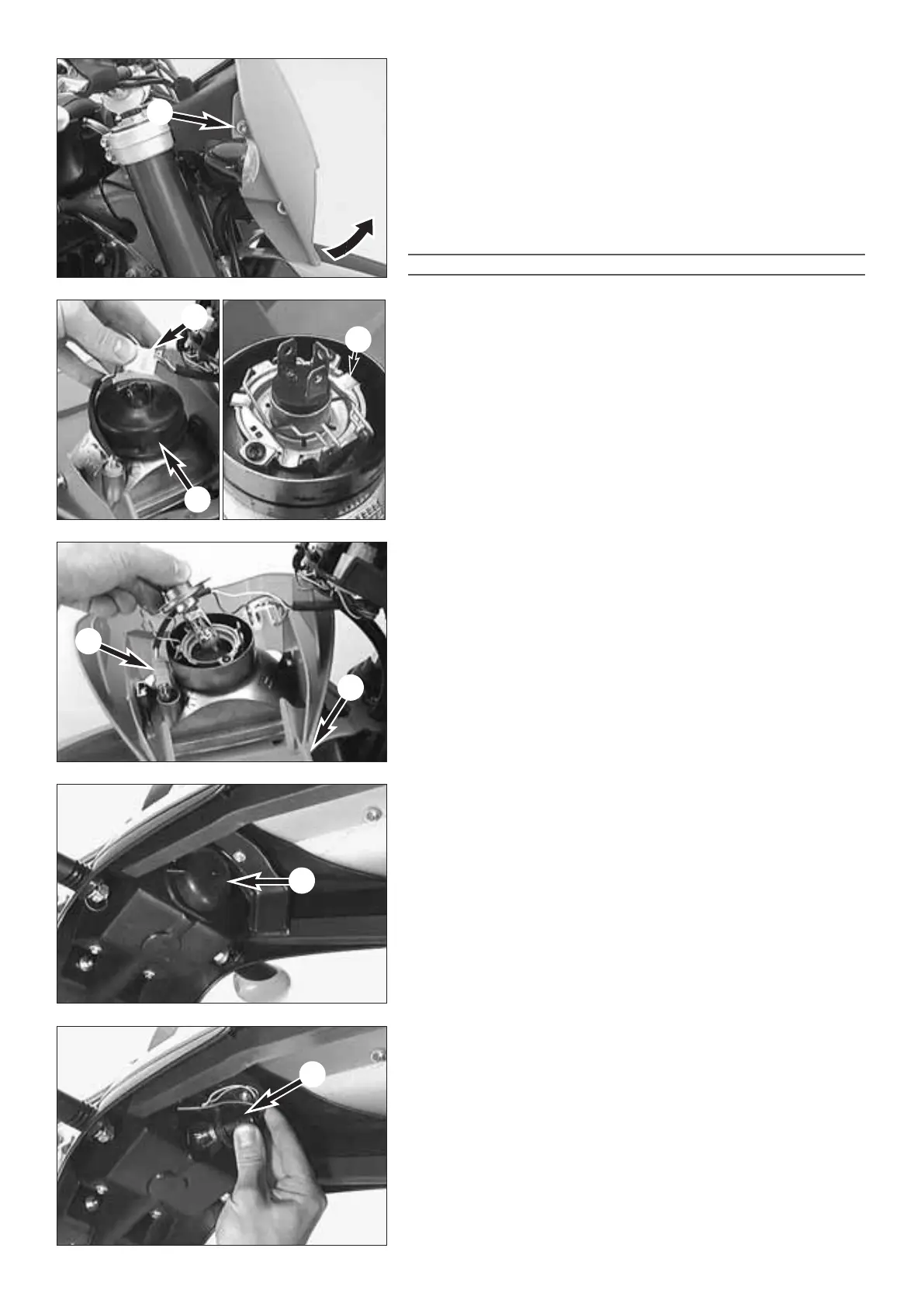

Replacing the headlight lamp
Remove the headlight mask:
Remove the screws
1 on the left and right
Press down the fender in the front, pull up the headlight mask, detach the
bottom from the fender and fold forward at the bottom
Replacing the headlight lamp:
Pull the plug
2 out of the light bulb
Remove the rubber cap
3
Detach the retaining clip and remove the bulb
When inserting a new light bulb, make sure the widest of the 3 tabs 4 fits in
the respective recess in the socket
!
CAUTION
!
DO NOT TOUCH THE GLASS OF THE LIGHT BULB WITH YOUR FINGERS TO KEEP IT GREASE-
FREE. ANY GREASE WILL EVAPORATE WHEN HEATED AND SETTLE ON THE REFLECTOR.
Attach the retaining clip, mount the rubber cap and attach the plug to the
light bulb
Mount the headlight mask:
Position the headlight mask so that the headlight lamp is under the cockpit.
Press down the fender in the front, pull up the headlight mask and insert
the retaining pins
5 in the recess of the fender.
Mount the screws
1.
Replacing the parking lamp
Remove the headlight mask as described above. Simply pull the bulb socket
6 out of the reflector.
Turn the bulb socket
8 approx. 30° in a counterclockwise direction and
pull out of the taillight housing.
Carefully press down on the light bulb, turn approx. 30° in a counterclock-
wise direction and pull out of the socket
To mount, proceed in the reverse order.
Replacing the rear brake/taillight
Remove the cap 7 on the bottom of the license plate holder.
