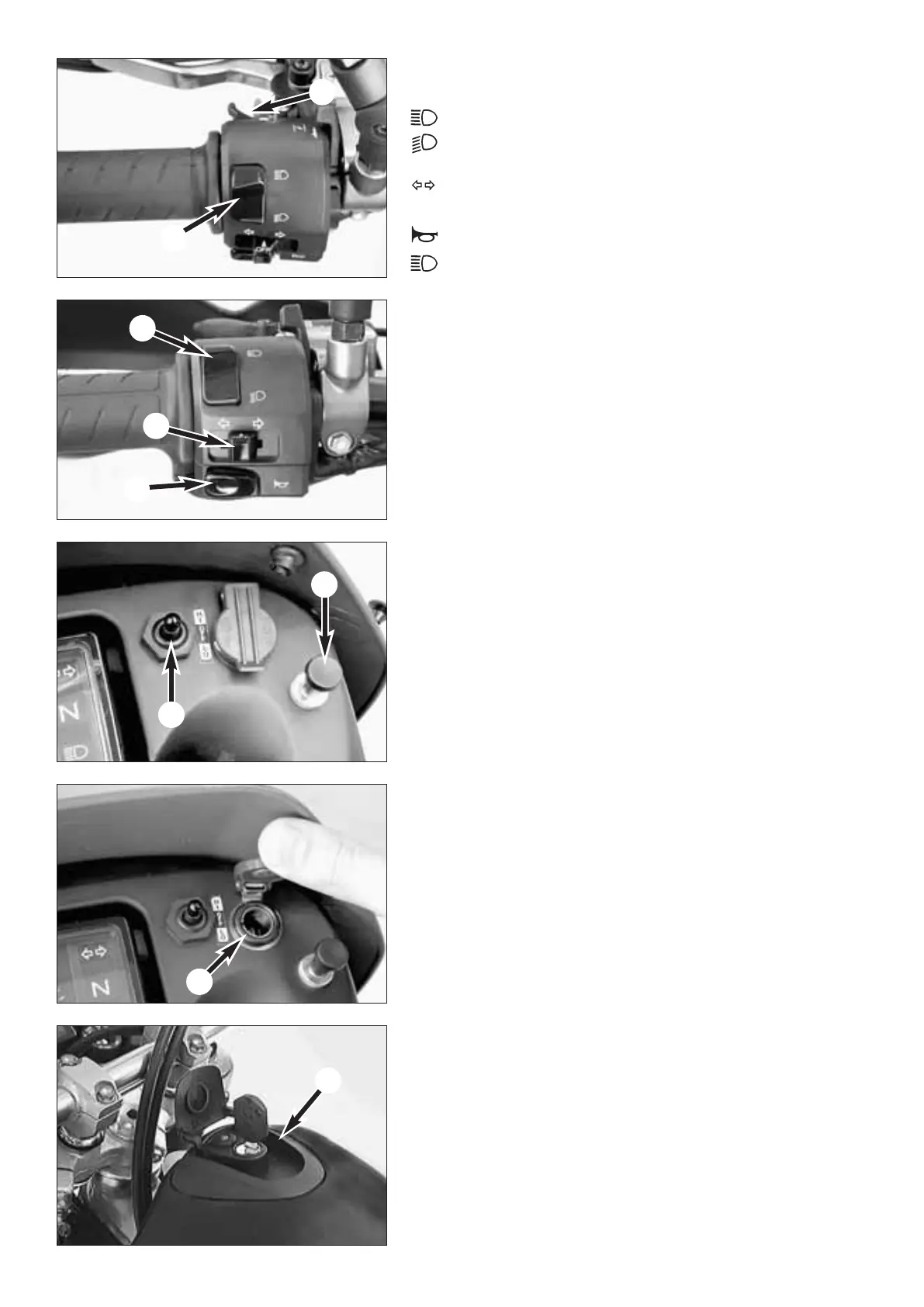

Combination switch
The gearshift paddle 1 is used to dim or flash the headlight.
= high beam
= low beam
The flasher switch
2
returns to the center position after the swit-
ching operation. To switch off the turn signal, press the flasher switch
into the switch casing.
Tip switch
3
is used to actuate the horn.
Tip switch
4
is used to actuate the flasher (high beam).
Switch for the grip heater
Switch 4 for the grip heater has 3 positions.
OFF: heater off
HI: high heater output
LOW: low heater output
Switch for the camouflage light
The camouflage light (parking light lamp in the headlight and taillight) is
turned on with the pull switch
5.
Filler cap
The filler cap 7 is lockable and equipped with a tank vent system. To
open, insert the ignition key, turn 90° in a counterclockwise direction and
lift off the filler cap. To lock, mount the filler cap, turn the ignition key 90°
in a clockwise direction and pull off the key.
Socket
A socket 6 (12V / 10A) is mounted in the cockpit. It makes it possible to
connect a GPS receiver or the automatic battery charge maintainer included
in the scope of supply.The socket cannot be switched off. The battery will
discharge if a power consumer is operated while the engine is switched off.
